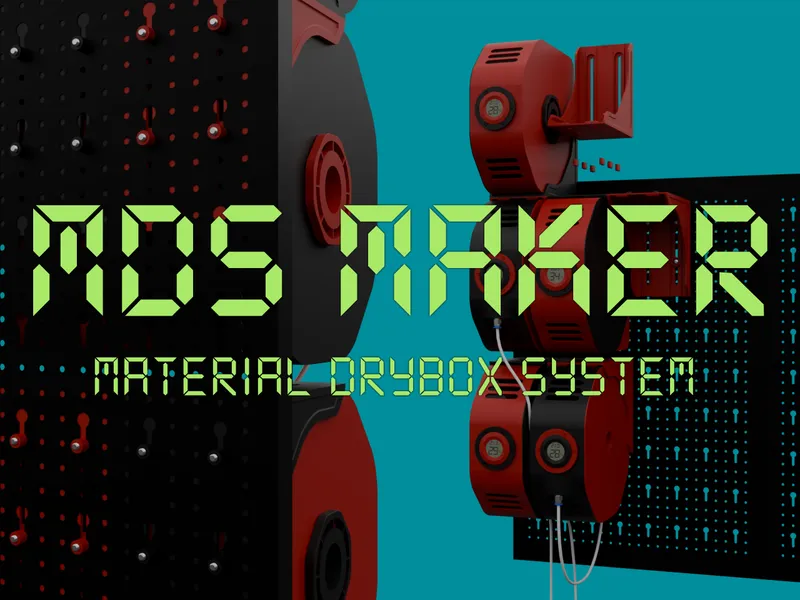

MDS 2025 - JB-MDS MAKER BOX 4 TOOLWALL

MDS MAKER BOX 4 TOOLWALL

MDS 2025 - Material Drybox System

for IKEA SKADIS- or TOOL-WALL or simple Wall

The MDS MAKER BOX and HOLDER prints with 0.4mm nozzle

Print Settings BOX:

Under "horizonal shells" and "Solid Layer" please enter Bottom 5.

Infill density “50%” and Infill patter “Lightning”

Seam Position “rear”

Print Settings HOLDER:

Under "horizonal shells" and "Solid Layer" please enter Bottom 5.

Seam Position “rear”

Otherwise, you can keep the usual settings for your material.

The minimum Buildplate (Volume) for this SYSTEM is (x/y/z) 225 x 225 x 150 mm

The Original size of the BOX (x/y/z) 220 x 220 x 78,8 (80) mm

HOLDER size (x/y/z) 87,10 x 145 x 148 mm

You need 2 materials and the following quantities in maximum grams:

PLA/PETG/ASA or other

• BOX 190g (Front/Back/Front-Back)
• BOX DRY 205g (none PTFE-Output)
• ---
• BOX SILICA-BOX 14g (2x for BOX-DRY)
• BOX SILICA-COVER 2g (2x for BOX-DRY)
• ---
• BOX COVER 90g
• BOX BOLT 15g
• BOX HYGRO 8g
• ---
• HOLDER 108g
• HOLDER 4 TOOLWALL 2g
• HOLDER ADAPTER A 3g
• HOLDER ADAPTER B 3g
• HOLDER PINS 3g

TPU for seal

• COVER TPU 5g
• BOLT TPU 3g
• HYGRO TPU 2g
• SILICA TPU 1g

Additional prints containing specifications for the acrylic glass and funnels for the silica gel are included with the product.

Additionally you will need the following things

You can also purchase all of these products from other suppliers. My information is merely my non-binding recommendation and I accept no liability for it !!!

Hygrometer Digital EU: https://de.aliexpress.com/item/1005003059610759.html

Hygrometer Digital US: https://www.aliexpress.us/item/3256802873296007.html

PC4-M6 PTFE-Connection EU: https://de.aliexpress.com/item/1005005646746144.html

PC4-M6 PTFE-Connection US: https://www.aliexpress.us/item/3256805460431392.html

Plexi-/Acrylglass EU: https://de.aliexpress.com/item/1005007800793673.html

Plexi-/Acrylglass US: https://www.aliexpress.us/item/3256807614478921.html

Dimensions of the acrylic plate: 150 x 100 x 1mm

=> Cutting template is included !!! <=

!!! Screws for JB-MDS v3.5_HOLDER 4 TOOLWALL  !!!

4mm x 16-20mm

Aliexpress EU : https://de.aliexpress.com/item/1005005984419378.html

Aliexpress US : https://www.aliexpress.us/item/3256805798104626.html

TOOLWALL 4 MDS MAKER

Aliexpress EU : https://de.aliexpress.com/item/1005007539105554.html

!!! Amazon EU :

https://www.amazon.de/TecTake-Werkzeuglochwand-dreiteilige-Werkzeugwand-Werkzeughalter/dp/B08LZSQQHW/

Aliexpress US : https://www.aliexpress.us/item/3256807352790802.html

MAKER BOX 4 TOOLWALL

I am grateful for criticism.
This system was tailored to my Qidi X3 series printers (template/default), but was also printed and tested by volunteer users on other printers.
If problems still arise, I am available at any time.

Thanks JB
