Velora Microjet - 30mm/50mm EDF Jet

50MM OPTION NOW INCLUDED FOR FREE!!

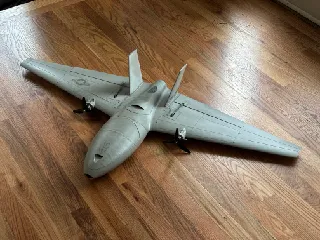

The Velora Microjet by Zephyr Labs is a high-performance EDF jet designed for hobbyists who seek precision, speed, and versatility. Now available in two versions, the Velora offers an ideal balance of performance and convenience for pilots of all skill levels.

Key Features:

30mm Version:

• Wingspan: 574mm
• Length: 348mm
• Weight: ~210g
• Power System: XFly 30mm 3S EDF, delivering impressive thrust and speed.
• Battery: 650mAh 3S LiPo (Tattu)
• ESC: 15A Mantis ESC or 20A XFly ESC
• Servos: 2x DSPower 2g Micro Servos

50mm Version:

• Wingspan: 810mm
• Length: 508mm
• Weight: ~620g
• Power System: XFly 50mm 4S EDF for powerful performance.
• Battery: 1500-1800mAh 4S LiPo
• ESC: 40A ESC
• Servos: 2x 9-12g Servos

Materials and Construction:

Both versions are constructed using LW-PLA with active foaming for lightweight durability, complemented by PLA+ for high-stress components like elevons and control horns. The models include detailed 3MF and STL files with pre-sliced GCODE for Bambu Lab printers, ensuring precise and efficient 3D printing.

Specifications:

• Control System: SBUS receiver, compatible with Radiomaster Boxer or similar radios.
• Gyro: HobbyEagle A3 Mini (adjustable modes: Off/Normal/Angle).
• Reinforcements:
  • 30mm Version: 4mm Carbon Tubing (225mm x 2).
  • 50mm Version: 6mm Carbon Tubing (330mm x 2).

Parts List:

• XFly EDF Units: 30mm (3S) or 50mm (4S).
• ESCs: 15A/20A for 30mm, 40A for 50mm.
• Servos: 2x DSPower 2g Micro Servos (30mm) or 2x 9-12g Servos (50mm).
• Batteries: 650mAh 3S LiPo (30mm) or 1500-1800mAh 4S LiPo (50mm).
• Carbon Tubing: 4mm (30mm) or 6mm (50mm).
• Other Materials: LW-PLA, PLA+, CA Glue (Medium/Thin), Velcro, Hot Glue, Masking Tape, 1.3mm Pushrods.

Special Features:

• Precision Assembly: Filament-aligned parts for easy and accurate construction.
• Flight Modes: Angle Mode for assisted takeoff and self-leveling; Normal Mode for advanced control and maneuvering.
• Versatility: The 30mm version is lightweight, quiet, and park-friendly, perfect for casual flights, while the 50mm version delivers higher power and speed for advanced aerobatics like loops and rolls.
• Optimized Printing: Pre-configured 3MF and GCODE files make setup simple and effective.

Whether you’re looking for the compact agility of the 30mm version or the powerful performance of the 50mm version, the Velora Microjet offers a design to fit your flying style. Both versions combine cutting-edge engineering with reliable performance, delivering an exceptional experience in every flight.
