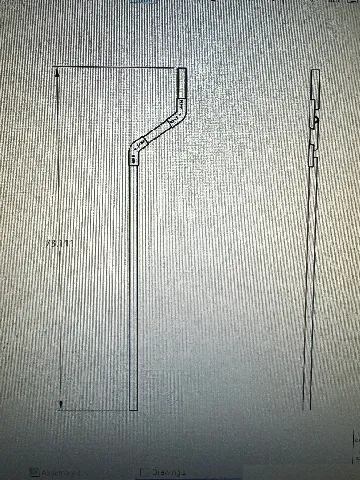

Your design is about 3” too tall. There is an assembly interference with the part with the arrow and don’t forget there is 0.75” of plate from the wooden kit. The total height pvc end to end should be 71.25”.
REEFSCAPE Branch Connnectors
Connectors for PVC (1.25 in) pipe to model the REEF field elements for the 2025 FRC competition.
6
116
0
687
updated
January 22, 2025
Makes
Comments
@JasonDembosk_2795158 Thanks for the feedback. Sorry I missed that in the assembly, but the details now reflect the correct lengths. (edited)
