Festool_MFT_Phoneholder

Parts list :

1x BackPlate

1x FrontPlate

1x Sled

2x Arm

Optional:

1x weak rubber band

Printing instructions


Recommended print settings:

Nozzle: 0,4mm

Layer height: 0,15 mm

Material: PLA, PETG or Higher quality material

Recommended print orientation can be find in the attached .3mf File.

Assembly instructions

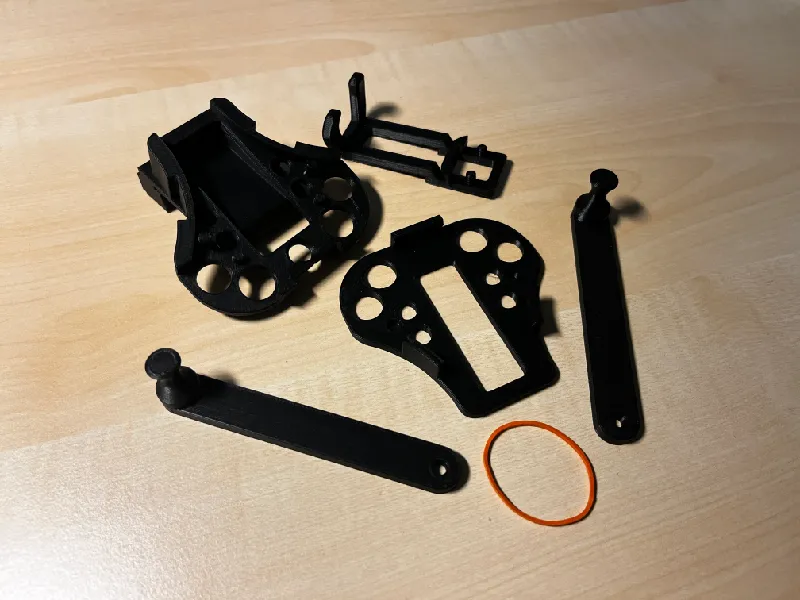

Step 1:

Prepare all printed parts and optionally a weak rubber band.

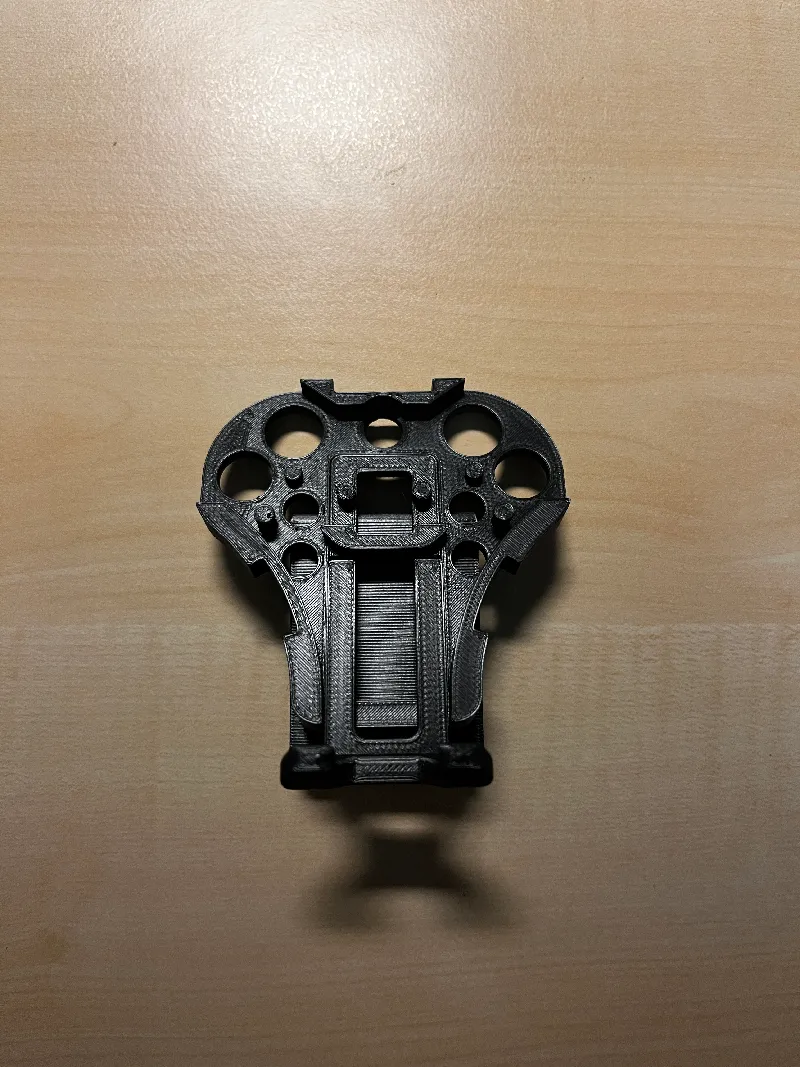

Step 2:

Get the BackPlate ready and insert the Sled.

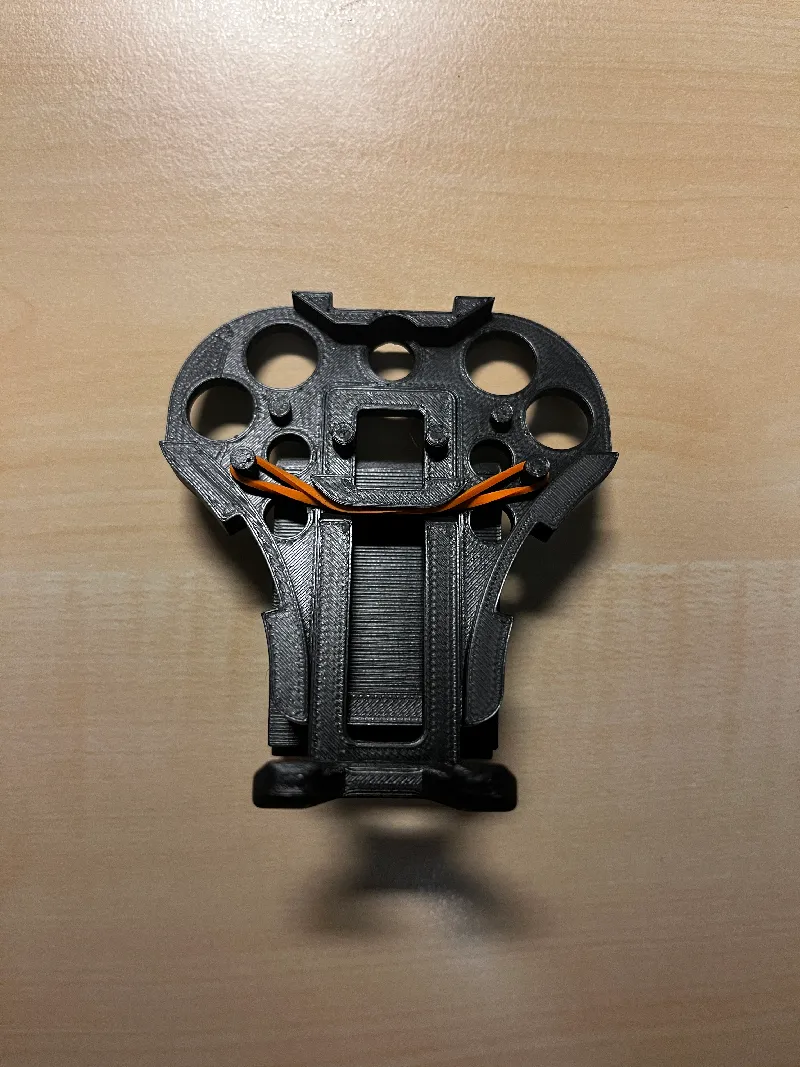

Step 3:

If desired, place a weak rubber band in the groove of the Sled and attach it to the left and right pin.

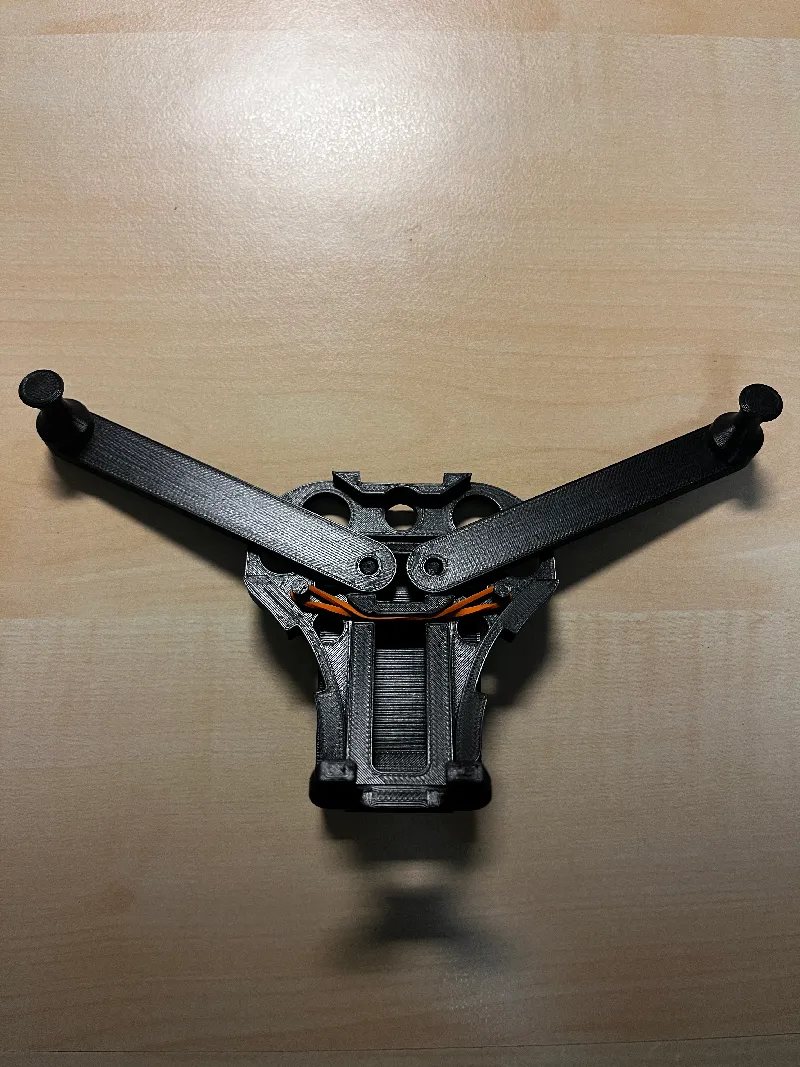

Step 4:

Insert the two arms into the 4 unused pins.

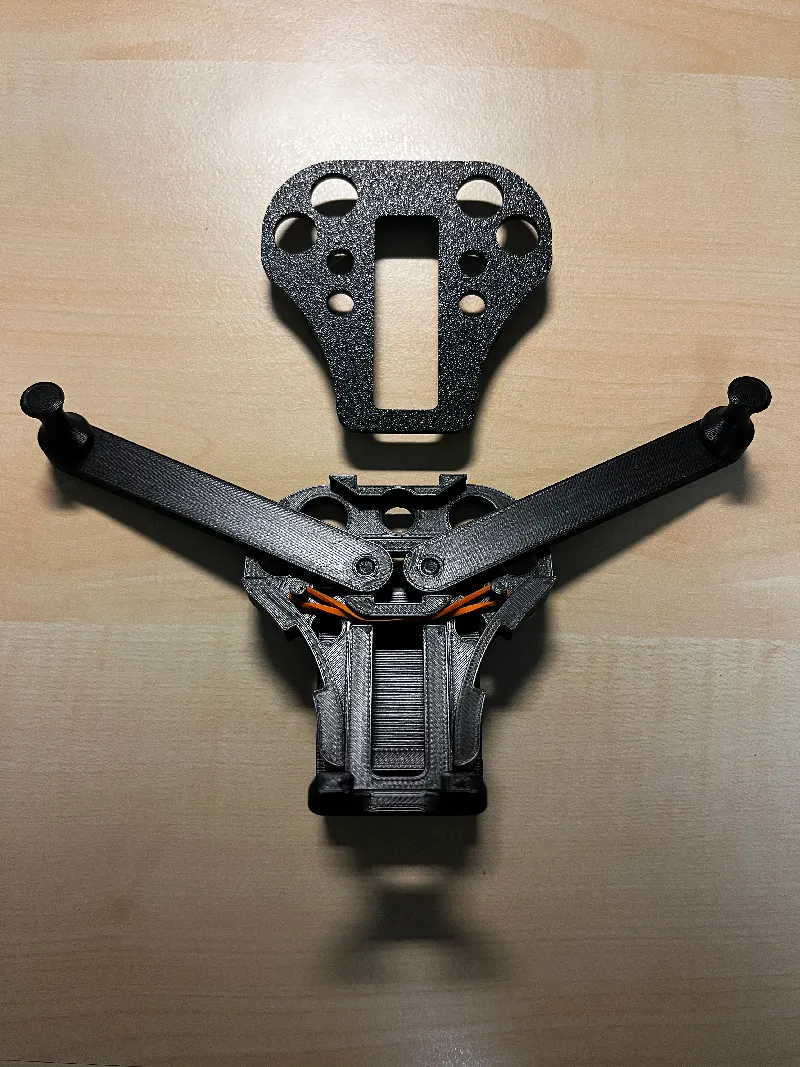

Step 5:

Get the FrontPlate ready.

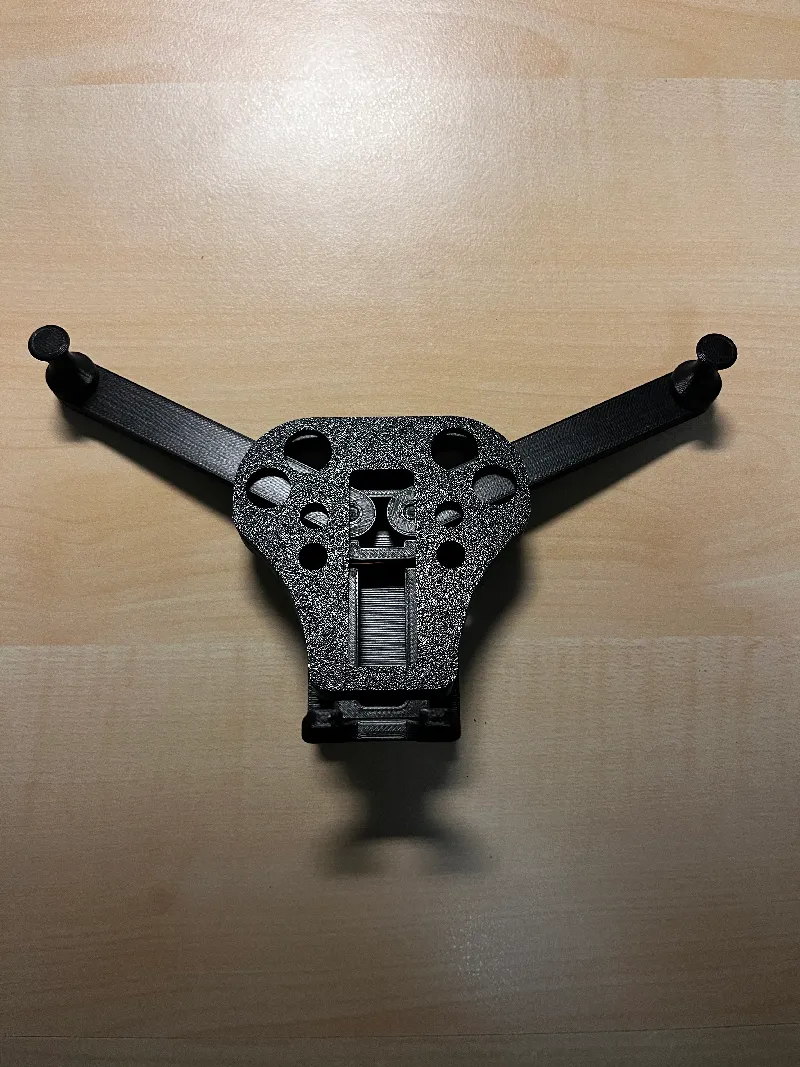

Step 6:

Press the FrontPlate with feeling through onto the rest of the assembly until all three catches engage.

Step 7: Assembly Finished!!!

You finished the assembly and the holder is ready to use.

The rear part of the holder has been heavily modified to be compatible with the rails of the MFT table.
