Logitech Brio/C270 Mount for MK4 or MK4S

Mount for Logitech Brio 101 or C270 for MK4 or MK4S that keeps the camera from drooping if you use a heavy lens.
4
36
1
225
updated January 5, 2025

Description

PDF

I remixed the already great @firetech C270 Mount for MK4 or MK4S.  This works on Logitech C270's or Logitech Brio's which are 1080p and work with Octoprint.

I added chamfers to the edge, lengthened it by 2cm, removed the thin layer around the screw head, and added a small curve to make it prettier.

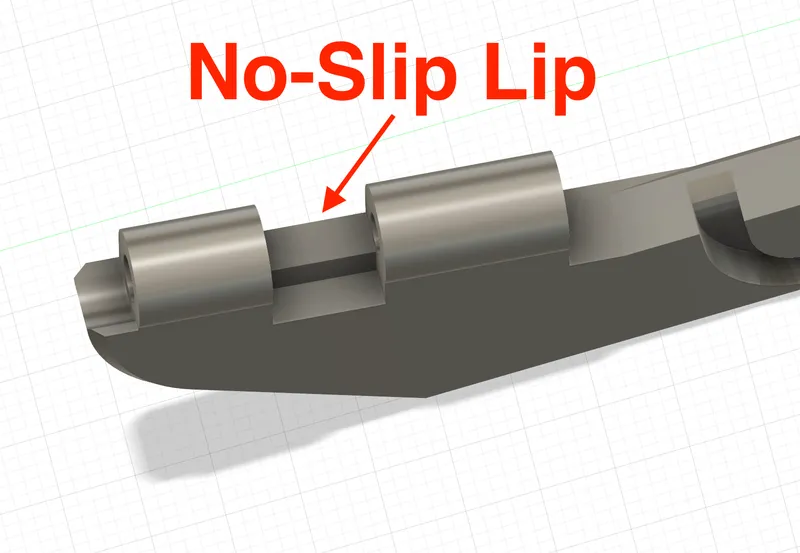

The main functional addition is the no-slip lip I made between the camera grips that keeps the camera from drooping when using larger lenses, like this one I used from Amazon.

To attach to x-carriage use an M3x16mm up to M3x20mm.

To attach the camera use an M3x20mm or an M3x20mm.

I bought these black M3 Screw Assortment and they come in really handy and aren't greasy like I have read that some black screws can be.

I printed in Prusament PETG-CF, and have printed previous versions in Prusament PLA Galaxy Black using 0.20 “Speed” presets with 3 perimeters.

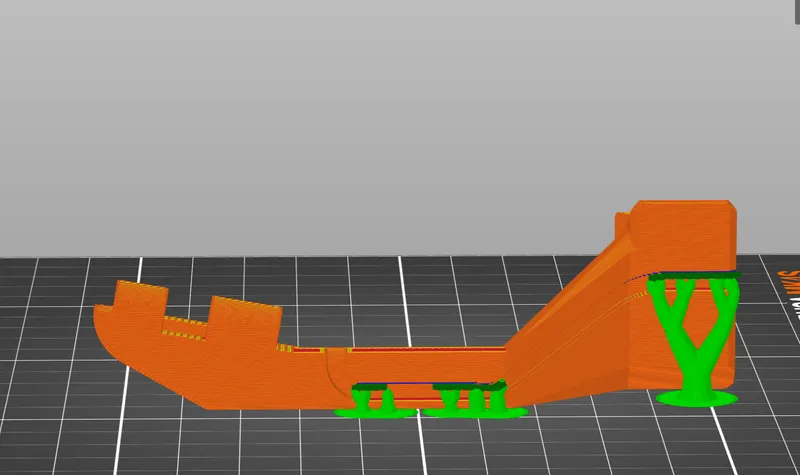

I painted on limited supports on the groove for the cable.  Use my 3mf for easy to remove support settings from @tobashadow

Model origin

The author remixed this model.

Differences of the remix compared to the original

I increased the length by 2cm and I curved the arm, then added chamfers.  I created a lip that stops the camera from drooping when using heavier lenses.  Few other things I can't remember.
