Rugged SD Card Box

To assembly you will need three M3x30mm socket head screws.

It can contain:

•  10x SD Cards
•  9x Micro SD Cards
•  1x SD Card Reader

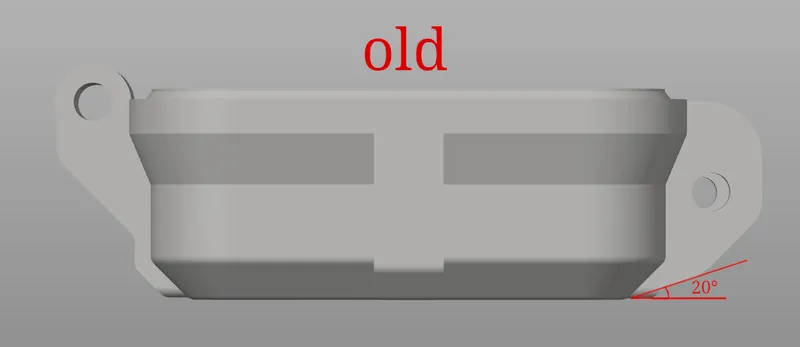

The original Lid had a big overhang roughly 20° Angle.

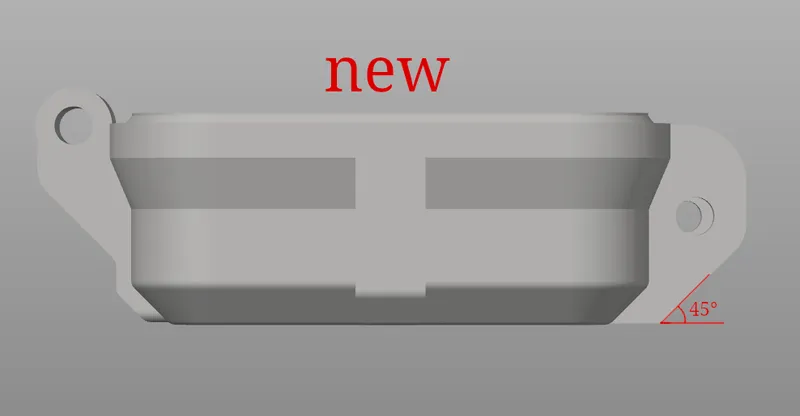

I remixed the new Lid so that it have an overhang 45° Angle, wish is easy to print.

There are two types of bottom ,Bottom Empty and Bottom With Inset, if you want to print the  inset in a different color use the Bottom Empty and Bottom Inset.

I remixed the model for better tolerance.
