Bluetooth Case for Sony MZ-510/MZ-NF610 MiniDisc Player

Introduction

I love my MiniDisc player, but unfortunately, I am spoiled by wireless headsets! I decided to remix a cradle for my Sony MZ-NF610 and turn it into a case that holds some commercial-off-the-shelf parts to add Bluetooth functionality, while retaining 3.5mm output.

It's not exactly pocketable anymore, but it can rest on a desk while you walk about, or inside a bag or cargo pants.

Required COTS Parts

(Links are affiliate links.)

• YMOO Bluetooth 5.3 Audio Adapter  - (Amazon)
• UGREEN Headphone 3.5mm Y-Splitter - (Amazon)
• 3.5mm Audio Cable - Male to Male [0.5 ft] - (Amazon)
• 1x M2 x 6mm Flat Head Screws - (Amazon)

This case works best if you have a charger cable.

• MyVolts 3V Power Supply for Sony MZ-NF610 MiniDisc Player - (Amazon)
  • I had previously bought a USB offering, but it seems like MyVolts no longer sells it.

Printing Instructions

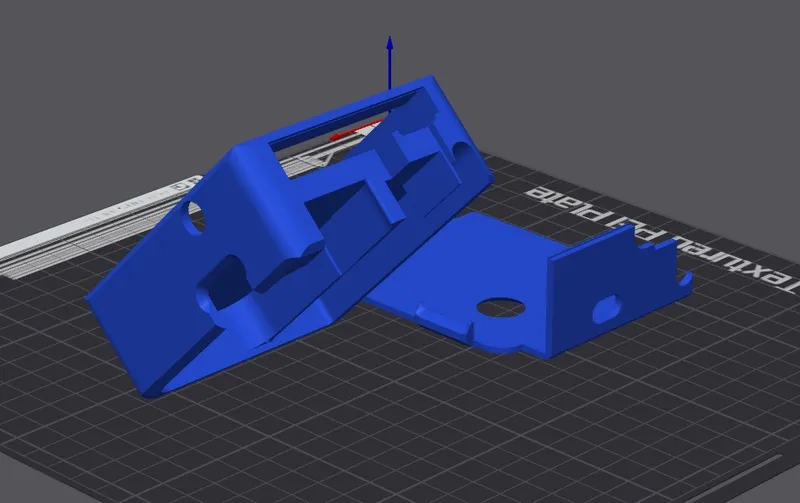

Print in the following orientation:

This was printed at:

• 0.12mm Layer Height
• Supports
• PLA
• 6 walls
• 100% Infill

Assembly Instructions

1. Insert the MiniDisc player
2. Insert Bluetooth transmitter
3. Using flat 3.5mm to 3.5mm cable, connect the MiniDisc player output to one tail of the Y-splitter. Connect the male end of the Y-splitter to the Bluetooth transmitter.
4. Place other end of Y-splitter into the case.
5. Arrange the cables into the pocket, and then place the cover onto the case.
6. Use the M2 x 6mm screw to secure the cover to the case.

Used the cradle as a holder for the case.
