Skadis Boards 280mm and Spacer 5,10,15,20mm

Wanted some Skadis Boards for both my living and bedroom but could only find smaller ones, and since i have a Qidi X Plus 4 (305x305x280mm) i decided to create some bigger boards myself - 280mm x 280mm- so those of you who have bigger Printers are welcome to grab their big boards.

You can choose between a Board with 2 Spacers with Screwholes and 2 normal Spacers, A Board with 4 Screwspacers or one with no Spacers.

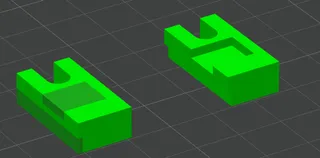

Additionally you can also grab seperate Screwspacers here, available in the sizes 5,10,15 and 20mm, just print them and glue them onto whatever you want (well maybe dont glue them onto yourself 😎)

______________________________________________________________________________________________________

UPDATE:

Added another 8 Versions, 4x with 2 Screwspacer, 2x Normal Spacer and a Center Spacer and 4x with 4 Screwspacer and a Center Spacer. Spacer are Integrated and available in the sizes 5, 10 ,15 and 20mm so you don't need to glue them on.

I added the Center Spacer for more Stability, since the Board gets wobbly towards the middle when adding and removing stuff to / from it, due to its size. This sacrifices the Center hole on the Board in exchange for more Stability. Choose whatever fits your needs, the old Boards without the Center Spacer are still available.

______________________________________________________________________________________________________

My Settings:

Layer Height 0,2

Walls / Perimeter 5

Top and Bottom Layer 5

Sparse Infill 60%

Infill Pattern Adaptive Cubic

Infill / Wall Overlap 30%

No Support

Enjoy
