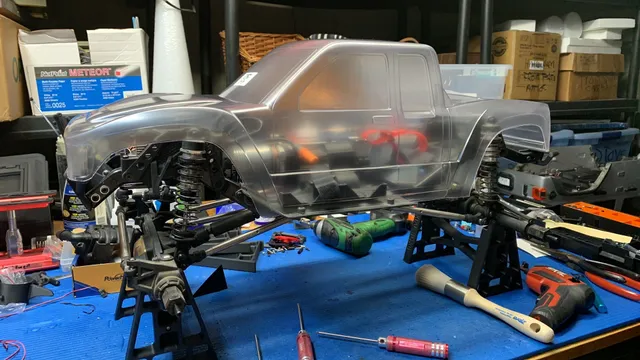

I purchased some genuine Axial SCX6 body mounts to go with my Pro-Line Racing Cliffhanger body. The body mounts turned out to be a bag of junk, so I decided to design and print my own mounts instead.

I designed these for use with the Cliffhanger body, so I can't confirm if they'll suit any other bodies. I've also made some \u201cmarker posts\u201d. They have a pointed top so you can fit them to the vehicle, sit the body in position on top of them, then press down above the points to mark where the body needs to be drilled. -It takes the guesswork out of locating the mounting hole positions. The body and posts are held in place using R-clips. I prefer Traxxas R-clips from the older generation T-Maxx/ E-Maxx.

The files attached include:

Front & rear body post set (Labelled)
Front & rear body post set (Blank/unlabelled)
Front and rear marker post set
Tall universal rear post for wagon bodies (untested)

Please note the models have an integrated 0.2mm brim to help with print surface adhesion. This will need to be removed and cleaned up prior to fitment.

Ideally these should be printed with Nylon as it's strong yet flexible, however PLA generally works fine. ABS & PETG are ok too, but may be a bit more brittle.
