GEPRC MOZ7 O3 BetaFPV front ELRS Antenna clip

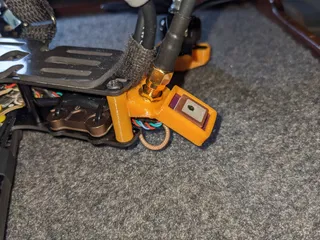

I made this remix to be able to install the BetaFPV 2G4 T-Antennas to the front of the GEPRC MOZ7 O3 frame. The base is now a little thicker and there two holes for M2 screws with recessed heads (M2x10). This way you install the antenna clip on the side TPU holders for the DJI O3 camera, by just using longer screws.  Another benefit will be that the angle of the antennas will correspond to the camera angle (flight angle), so that the orientation will mostly be vertical.

Tested different materials (PLA, PETG, TPU) and layer heights and for my Prusa MK3S+ I found that the tiny part looks best on PETG with 0.1mm layer height.

UPDATE: added a higher front bumber that you can install on top of the original TPU front bumper, so that the ends of the ELRS antennas do not touch the ground.

I made this remix to be able to install the BetaFPV 2G4 T-Antennas to the front of the GEPRC MOZ7 O3 frame. I made the base thicker and put the two holes for the M2 screws, with recessed heads. I used two M2x10 on each side.
