Autodarts Camera mount for usage with Winmau Plasma (with M3 threaded inserts, remixed from 3DEngelen)

Find other STLs in the original model

If you' re searching for a case which fits a RPi and further electronics, please find this Model

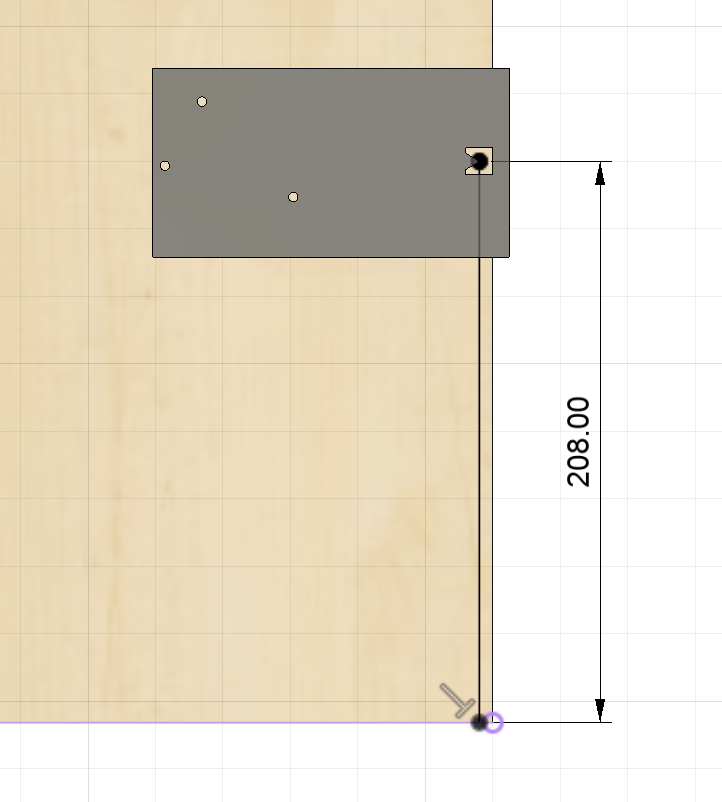

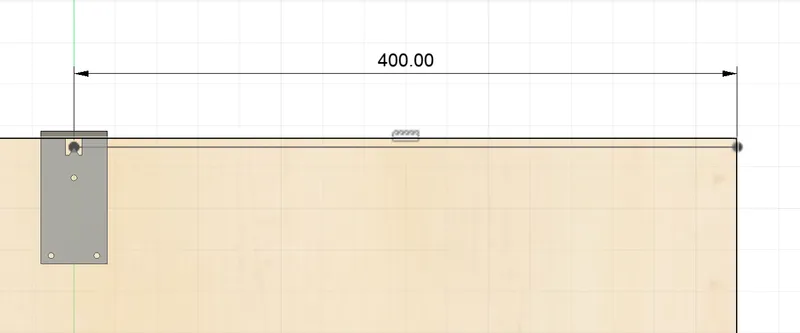

If you're using an 800mm x 800mm panel for mounting AND you're using the new feet which are mounted with threaded inserts you can use the drill guide. They are to be positioned as the following

• Adapted model to mount a Winmau Plasma LED Ring.
• Changed Arm holes to fit M3 threaded inserts
  • Camera Housing is mounted with M3x8
  • Foot / Plasma Ring is mounted with M3x16
• Changed Foot Hole diameter to use M3 Screws
