The Dromonem - the all in one wrapping multitool!

To avoid the annual mayhem of wrapping presents use the Dromonem!

Features

• box cutter/label peeler
• ribbon/wrapping paper cutter
• ribbon curler
• ruler
• folding/creasing edge
• sticky tape dispenser (rotating wheel and cutter)

hardware

(I am working on a model with no hardware but so far it hasn't been strong enough)

4-M3x16 bolts

4-M3 nuts

2-T11 modelling blades

1-M5 nut

4-5.95mm diameter magnets (although 2 works)

Assembly                                                                                                                                                                        Insert M3 nuts into holds (should be a tight fit so might need to push against a table or use a mallet).

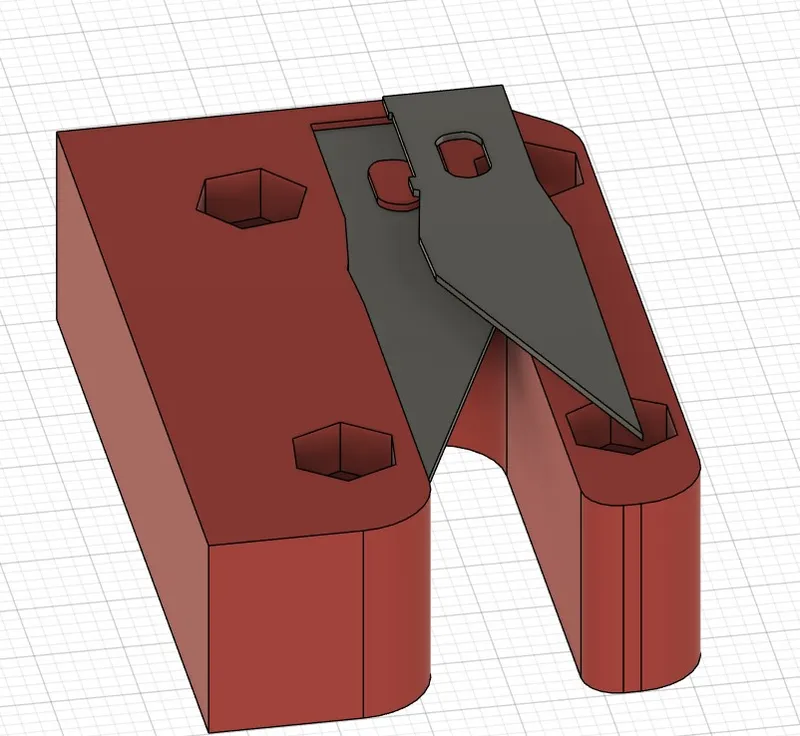

Carefully place the 2 x T11 blades in opposite directions

Screw in the bolts until they just push through ( see other picture)

Then screw all the way through fastening the blades in place

The M5 nut is to go onto the pole to secure the tape in place

The magnets push into these holes to keep the box cutter in place

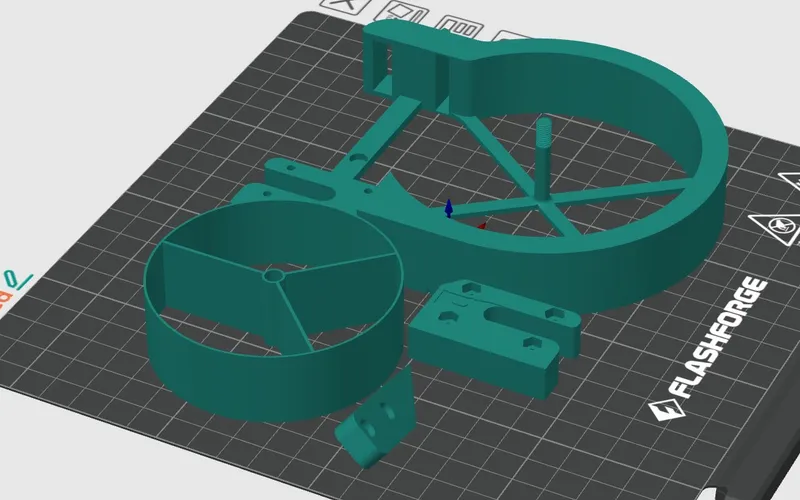

Print orientation

This is how I printed the parts this allows for minimum support.
