Workbench Extension Arm
MFT3 Extension arm to keep the dust extractor hose and sander cable away from the sanded part or the workbench edges.
In the contest Festool Contest: Pimp Your Workbench
67
94
1
1208
updated
December 20, 2024
Description
PDFExtension arm design to keep the dust extractor hose and sander cable away from the sanded part or the workbench edges.
Functions :
- Hose and cable holder
- 140° rotation of the arm
- Deported Slot nut connection
Components:
- D35/ d32mm Steel or Aluminum tube – 1200mm
- D35/ d32mm Steel or Aluminum tube – 600mm
- 4x M4 x 20 10642 screws
- 6x M4x10 ISO 4762 screws
- 6x M4 ISO 4032 nuts
- 24x M3 x 16 ISO 4762 screws
- 2x M3 x 12 ISO 10642 screws
- 1x M6 x 25 ISO 4762 screw
- 1x M6 ISO 4032 nut
Assembly :
Base assembly
- 1x M6 ISO 4032 nut
- 4x M4 x 20 10642 screws

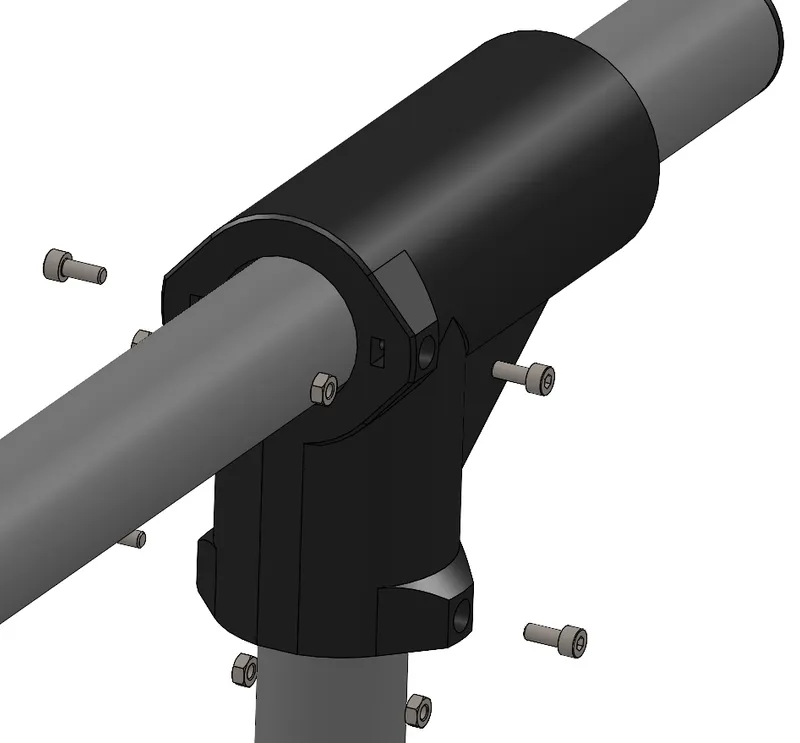

Tube pivot assembly
- 2x M4x10 ISO 4762 screws
- 2x M4 ISO 4032 nuts
Hose & cable supports assembly
- 4x M3 x 16 ISO 4762 screws
Square tube connector assembly
- 4x M4 ISO 4032 nuts
- 4x M3 x 16 ISO 4762 screws
Deported Slot nut assembly
- 4x M3 x 16 ISO 4762 screws

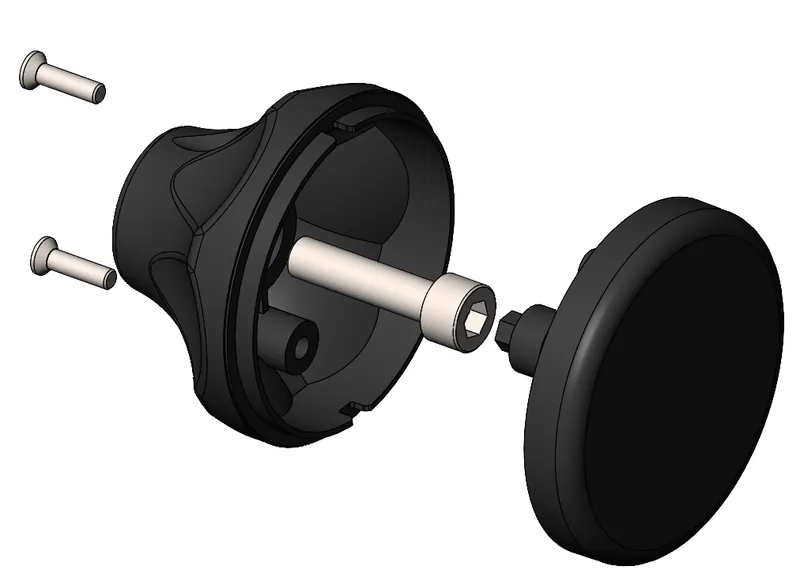

Clamping sleeve
- 2x M3 x 12 ISO 10642 screws
- 1x M6 x 25 ISO 4762 screw
Arm and base assembly
Tags
Model origin
The author remixed this model.
Festool Multifunction Table MFT 3 - Model and Design Guide (Contest)
Original model was switched to draft or deleted
Differences of the remix compared to the original
Remix of the slot nut to adapt it to a D35mm pipe
