BitBot XL frame 2.0

This is a remix of: BitBot XL frame made by Hanskbe. For building and gluing on a BitBot, without destroying the robot.
1
16
0
57
updated December 25, 2024

Description

PDF

The BitBot XL Frame, originally designed by Hanskbe, was created as a versatile frame for students to build and glue components onto a BitBot without damaging the robot itself.

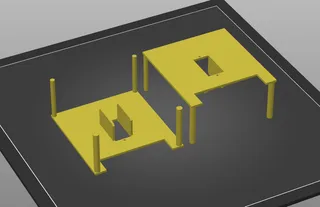

The BitBot XL Frame 2.0 is a refined remix of the original, redesigned for easier 3D printing and improved compatibility with additional components, such as an Servo Insert frame for a 9g servo.

The front holes have a diameter of 5 mm, while the rear holes measure 4 mm.
All holes are 13.5 mm deep

Photos and Links to complementary parts will be available soon.

Model origin

The author remixed this model.

BitBot XL frame MicroBit HKB-Design
by hanskbe (thingiverse.com)


Differences of the remix compared to the original

I have refined the original design by removing the signature and smoothing out gaps and unnecessary holes to better suit my specific use case. These adjustments ensure easier and more reliable 3D printing, as the original design posed challenges on certain printer types. Additionally, I have resized and reshaped the holes to make them fully round and uniform, correcting issues with semi-round or oval shapes in the original.
