Artillery 360 degree print cooling

This is a specially designed 360 degree cooling system for the Artillery Sidewinder X2 (fan duct geometry inspired by the MK4S @Prusa3d). It is not a scale down copy of the MK4S version. This mod uses the original 5015 fan - I recommend the original SUNON MAGLEV for comfort.

The design is based on my earlier remix for the Prusa MK3:

https://www.printables.com/model/1092122-mk3smk35-360-degree-print-cooling

For the cooling design I used the extruder model provided: https://grabcad.com/library/artillery3d-sidewinder-x2-extruder-and-x-axis-carriage-1

However, individual extruders can vary in size between production runs and for the extruder in my printer the fanduct ver5 fits (see update 06.01.2025). The brackets should be universal for all Sidewinder/Genius extruders.

Parts

For assembly we additionally need:
1. a fan 5015 24VDC, I recommend genuine SUNON MAGLEV (affiliate link),
2. four M3 nuts,
3. screws:
M3x22mm 2 pieces
M3x10mm 2 pieces
M3x8mm 2 pieces

Print

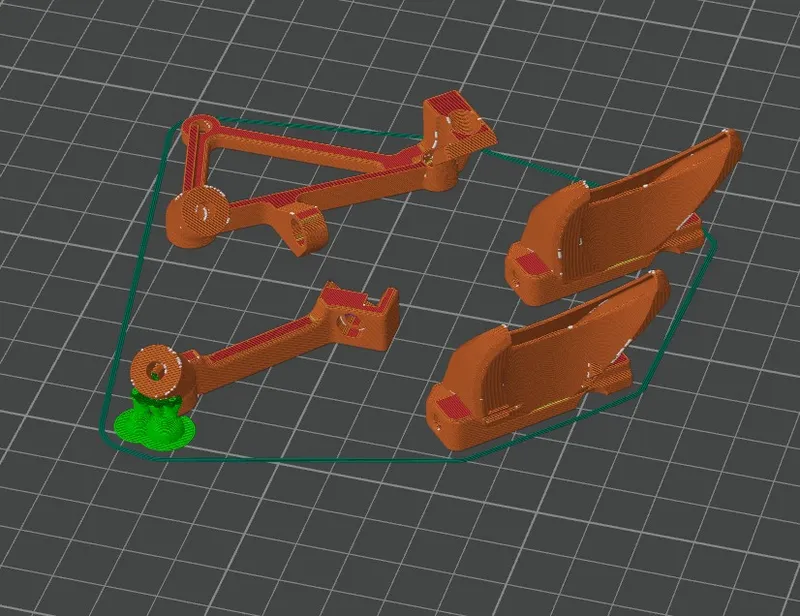

The X2fan_mount2 part should be printed with manual or automatic support.

Print fan duct from ABS/ASA.
Fan ducts mount can be printed from PETG if you don't have a built in printer however I would also recommend printing them from ABS/ASA.

Nozzle 0.4mm
Layer 0.2mm

The cooling works very well.
So far this is the best cooling I have fitted to my Sidewinder X2.

****************************************************************************************************************************************************************************************************

Updated 22.02.2025

I have updated the description.

****************************************************************************************************************************************************************************************************

Updated 26.01.2025

Version v6
Bottom plane of the ventilation duct lowered by 2mm compared to the v3 version

Version v6_2NX for AeroXtruder2NX
New version for the extruder that is under development.
Ventilation duct lowered by 2mm relative to v3 and moved 4.2mm along the X axis towards the X axis motor.

****************************************************************************************************************************************************************************************************

Updated 25.01.2025

I have updated the description.

****************************************************************************************************************************************************************************************************

Updated 06.01.2025

version 4

Has the fanduct axis shifted by 1.6mm towards the engine.
Previous versions of printed parts are incompatible with version 4.

The tip from the 04.01.2025 update is still valid for fanduct version 4.

version 5

The fanduct axis is shifted 1.6 mm toward the motor.
The bottom plane of the fanduct lowered by 1mm and adjusted to 1.5mm.
The height adjustment range of the fanduct suspension is 0.5mm.
Previous versions of printed parts are incompatible with version 5.

Fanduct version 5 does not need the redesign shown in update 04.01.2025.

I haven't printed this version yet so please comment if there is something still to be corrected or changed.

****************************************************************************************************************************************************************************************************

Updated 04.01.2025

meaningless for the latest versions

****************************************************************************************************************************************************************************************************

Updated 27.12.2024

Previous versions v1 and v2 are dedicated for volcano hotend pt100
I have added another version v3 fanduct for the standard volcano hotend.
