Badgy Rev 1 Case

Quick case to hold my Badgy IoT Badge

https://www.tindie.com/products/squarofumi/badgy-iot-badge/

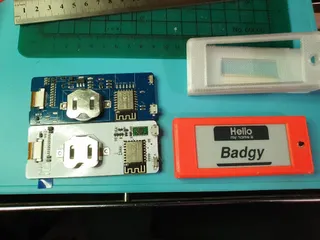

Update: This case fits a Rev. 1 Badgy Blue Board.

Rev 2B (and probably 2A) swap the position of the switch and USB and is slightly longer. I have updated the design and posted as: badgy rev 2b

Updated Version: 17Jan19 Removed the battery cutout - it was useless, a - too small (batteries tended to have diameter of 24.5+ mm, b - you couldn't get the battery out without opening the case anyway.

This version includes a cut out for a Magnetic clip, plenty on ebay - Name badge Magnetic clip 46 x 13.

Don't bother using the cut out -- stick the magnet to the back. There is not enough holding power for plastic + clothes. (However the cutout works ok with the magnet inside if you are attaching to a metal surface directly)

For my first version I just used a stick on badge pin (most stationery stores).

THIS HAS VERY TIGHT TOLERANCE DO NOT BREAK YOUR SCREEN TRYING TO FORCE IT. YOU MAY NEED TO SANDPAPER SOME PIECES.

Print Settings

Printer Brand:

Prusa

Printer:

i3 MK3

**Resolution:**

.2

Infill:

20%

Notes:

I use PETG for most things. Has a bit of give to pop things in place.

Category: Electronics
