EBB42 mount for Mantis gantry

This mount utilizes the 3 mounting points on the Mantis carriage, probably for cable chain. Uses M3x5x4 heat inserts.

The mount has 3 holes corresponding to the ones on the gantry. M3x8 SHCS is recommended to mount. A dent was made to accommodate the motor.

4x M3 nuts, the tolerance is tight for press fit:

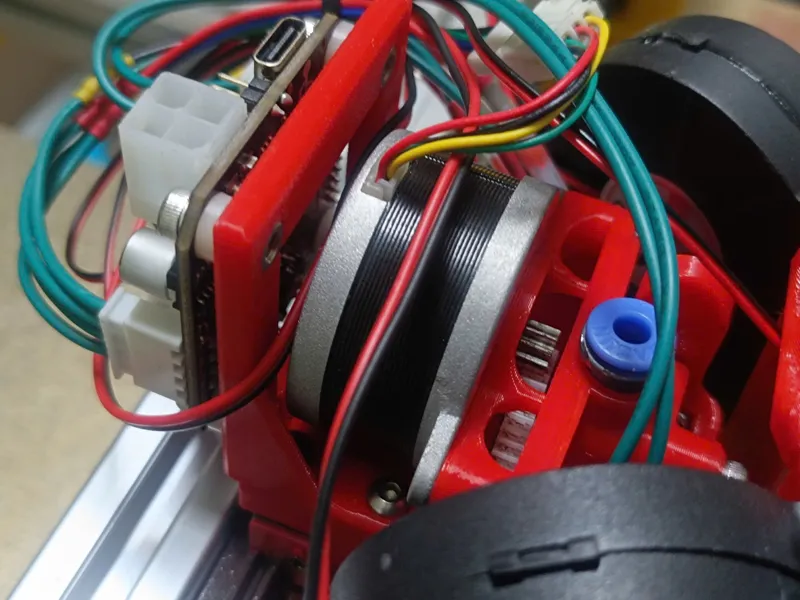

Use the provided spacers that comes with your EBB42. Mount the board with 4x M3x8 SHCS.
