Ultimate turbo Funnel Vasemode & 2 Perimeter + Strainer

Hoioioioi

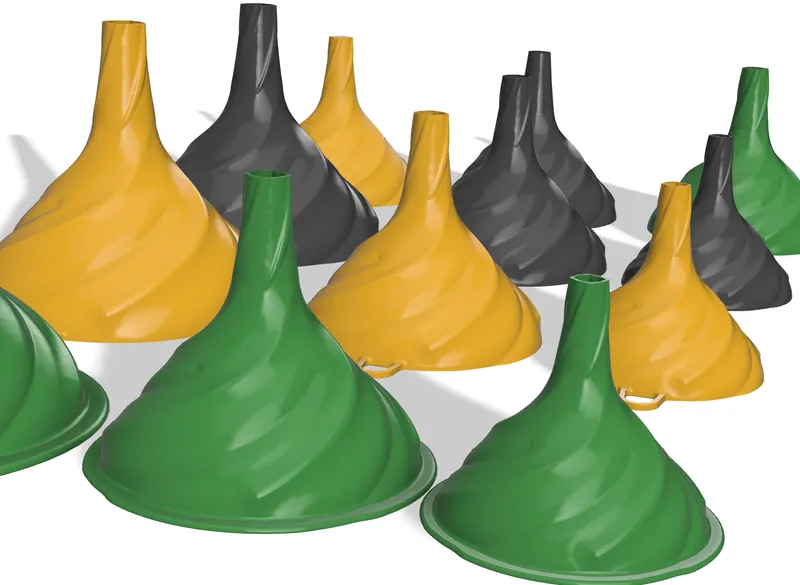

Here I have my Version of a TURBO Funnel xD … Well ok I have many different options for you to choose of!

Also you can scale the Funnel to your desired dimension!

Parts explanation:

Vasemode

Vasemode: This Funnel is designed massive and can be printed in Vasemode.
Vasemode + Loop: Same as the Vasemode model but with a loop so you can hang it up.

Printing: Use Vasemode and set bottom layers to 0 and set the wall thickness a little wider than your nozzle size. (I use 0,6 mm for a 0,4 mm Nozzle).

I recommend PETG or other tough materials but PLA will work fine too ,-)

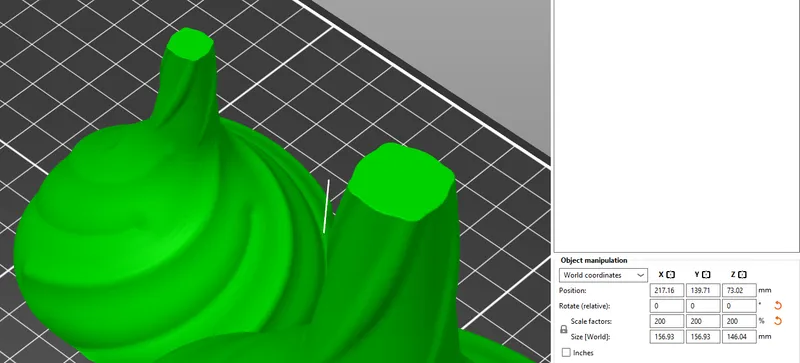

Scaling:
You can scale the Vasemode as you like. But make sure the overhangs get too crazy if you don't scale the design in all 3 axes simultaneously. Also If you scale the Model too big/ small a an accordingly fitting nozzle size should be used.

2 Perimeter

2 Perimeter: This Version is designed to be printed with a 0,4 mm Nozzle and 2 Perimeter.
2 Perimeter + Lip: Same design as above but with an additional lip for more strength.
2 Perimeter + Loop: Same as the normal 2 Perimeter Version but with a Loop to hang it up.

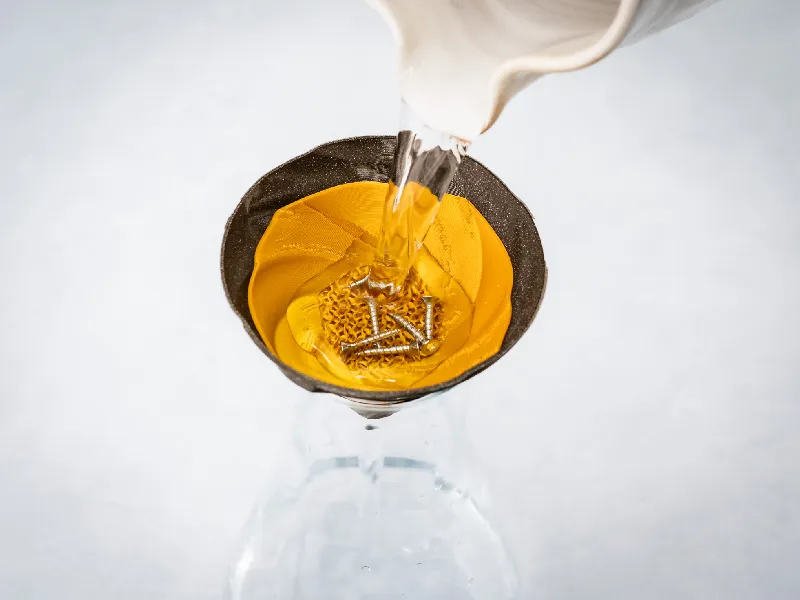

Strainer Inlet: This is a Strainer Inlet you can use to filter

If you want to use the strainer for the Vasemode model go for the Strainer without L/s. You can also scale it in the same way as you can do with the Funnel.

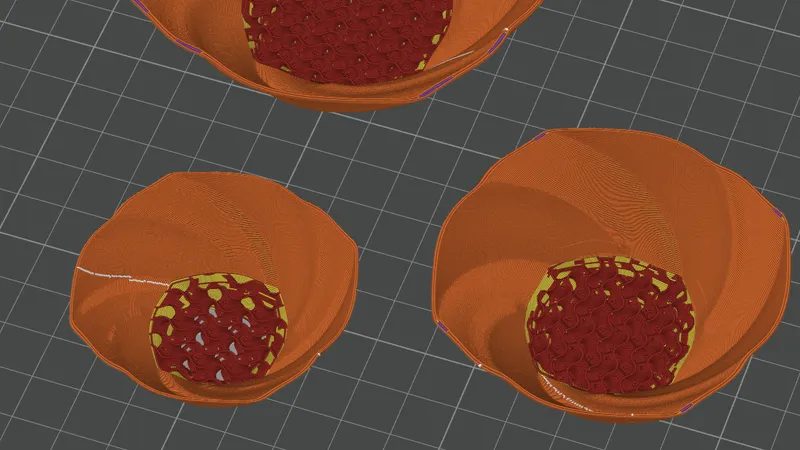

Printing: Set the top and bottom layers to 0 and choose a infill that fits the density you like your strainer to have.

If you have any questions feel free to comment/ contact me.

If you like the design share it and consider supporting me!

Have fun!

New & smoother design.
Vasemode & different 2 Perimeter versions.
New Strainer system I designed.
