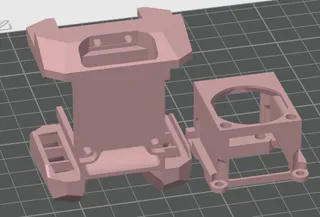

E3NG EBB36 Mount for ProtoXtruder

ebb36 mount for protoXtruder (either 1 or 2) and e3ng v1.2 carriage. Although this is designed from scratch, it is based mostly on how most tool head board mounts are designed. Standoffs can be printed or the ones that are included in the ebb36 package, a 3.5mm spacer is needed between the mount and the carriage, the spacer can be resized in z direction if yours comes up too short or too long. print with e3ng recommended settings. 2 heat set inserts (4.5mm OD 5mm L) are needed for ebb36 screws, it is recommended to insert them from the back.
