Portable Sliding Tea Box

This is a simple tea box that holds 3 tea bags. It features a sliding lid. The tea bags are in removable trays so that different types of bags can be used while still being easily removable. The lid is held on by friction, if that is the case for your printed perhaps slightly scaling the lid or editing the STEP file will resolve the issue.

Print Instructions

These were all printed with eSun PLA+, but any material will probably suffice. Three trays need to be printed to fill all the compartments.

Box

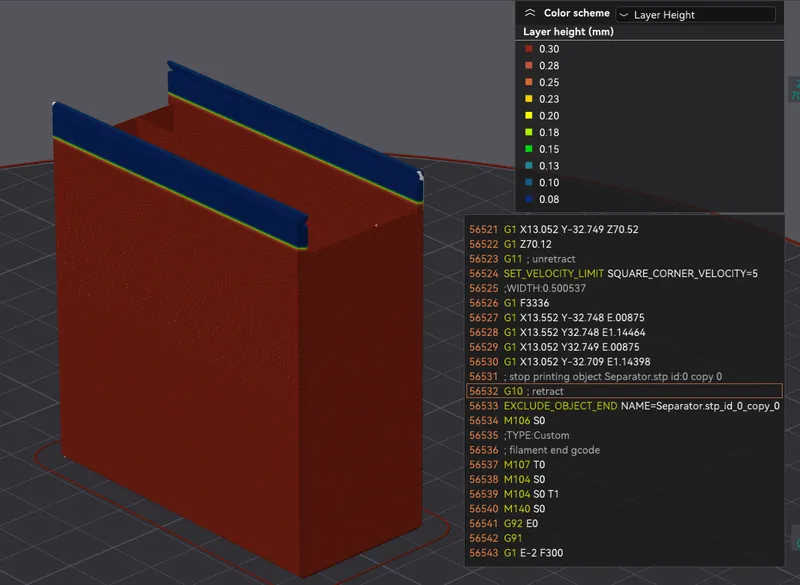

• Layer Height: 0.3mm base with ~0.1mm at the top. If you don't want to use variable infill 0.1mm would be recommended for the entire print.
• Walls: 3 or more so that it is all walls
• Infill: N/A
•

Box

• Layer Height: 0.2mm
• Walls: 2
• Infill: 15% Cross Hatch
•

Tray

• Layer Height: 0.3mm
• Vase Mode: Enabled, make sure that 2 layers are printed normally at the bottom
•
