GEN2 2x1 Decor Gridfinity Magnet Double Drawer - STANDARD

	JERRARI3D.com

The GEN2 Decor Series is the next evolution in the most versatile 3D printed drawer system, The GEN2 Modular Storage System. You can now easily swap faceplate and handles to fit the mood of the room you want. Being able to easily customize colors, patterns, or adding custom text.

Wait What is the GEN2 System? Watch this short video and prepare for storage awesomeness!

What you need?

These drawers are completely compatible and interchangeable with any GEN2 drawer systems in STANDARD length. Here are my recommended links to get started:

• GEN2 Modular Drawers - Standard - Here you will find everything you need for installing the drawers under tables, such as the rails, drawers cases, and my favorite… QuickLocks!

• GEN2 Table Top Kit - Standard - Alternatively this kit will allow you to place your drawers on top of any table surface.

To customize these drawer here are my recommended links to get started, you can also fin more at jerrari3d.com


FACEPLATES

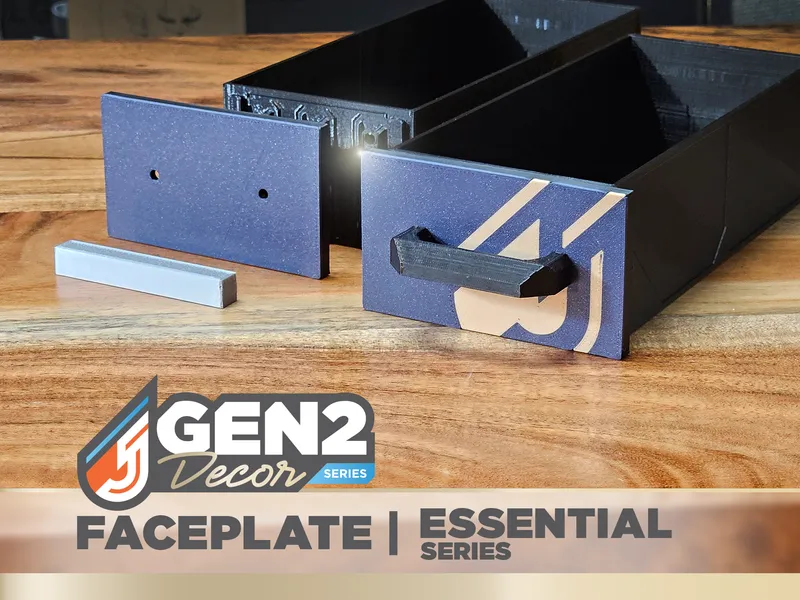

	Essential Series DOWNLOAD

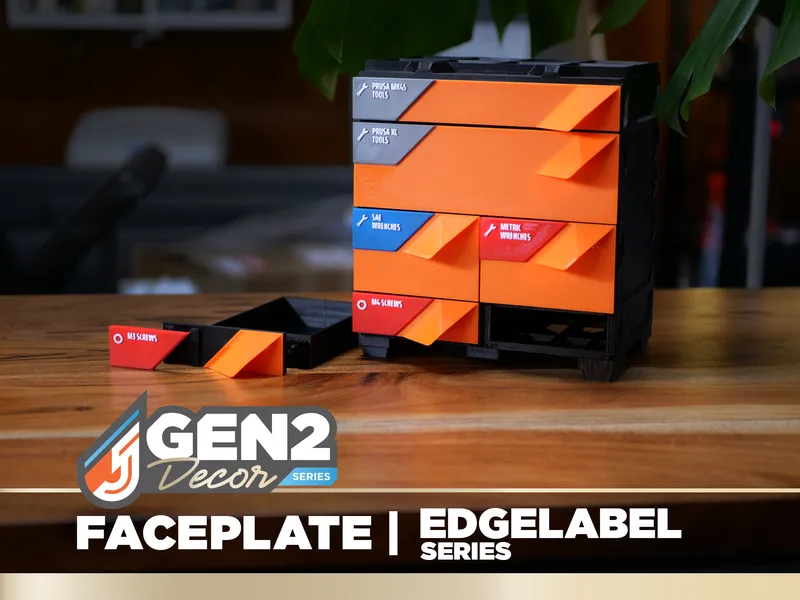

	NEW EdgeLabel Series DOWNLOAD

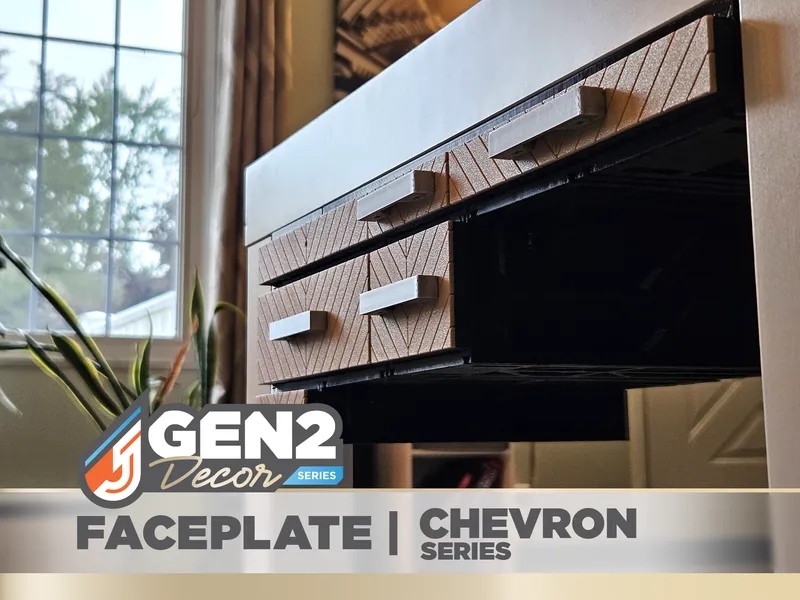

	Chevron Series DOWNLOAD

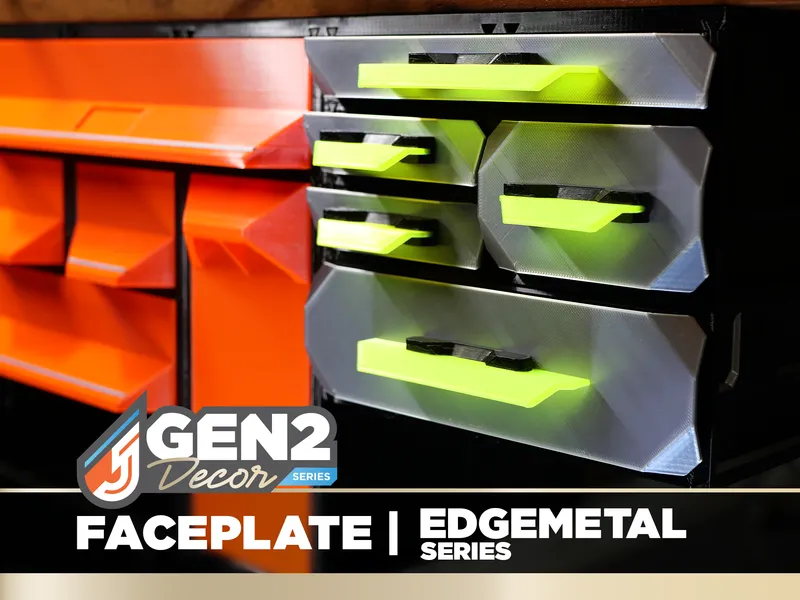

	EdgeMetal Series DOWNLOAD

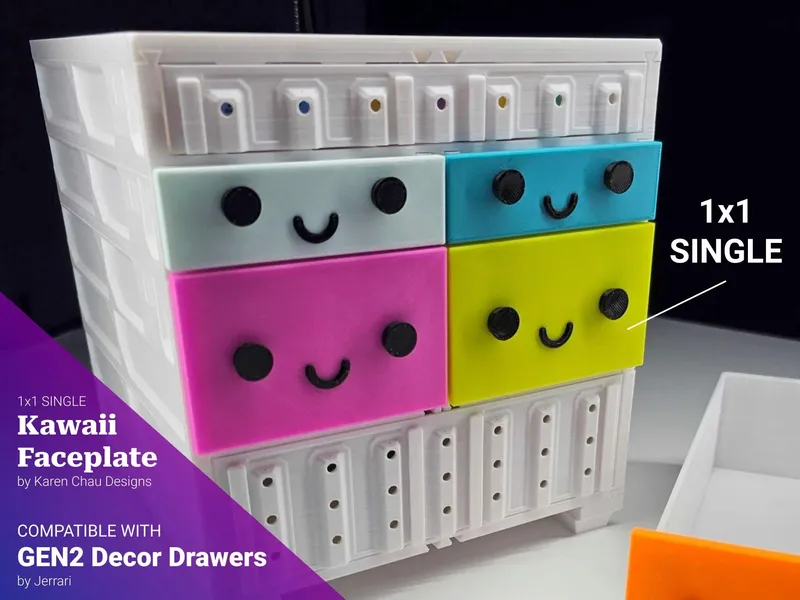

	Kawaii Faceplate by Karen Chau Designs Single Drawers 1x1: DOWNLOAD Single Slim Drawers 1x0.5: DOWNLOAD
	Poinsettia Faceplate by Prismatic Single Drawers 1x1: DOWNLOAD

HANDLE/KNOBS

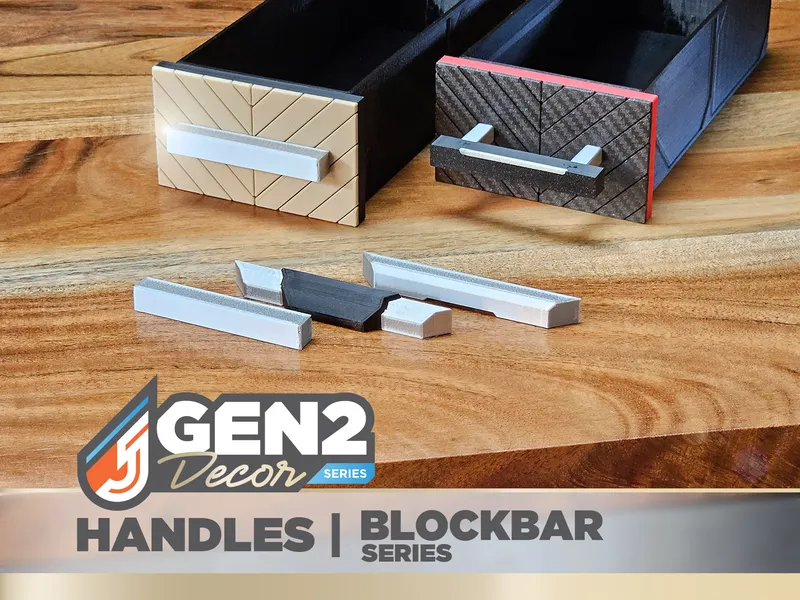

	BlockBar Series DOWNLOAD

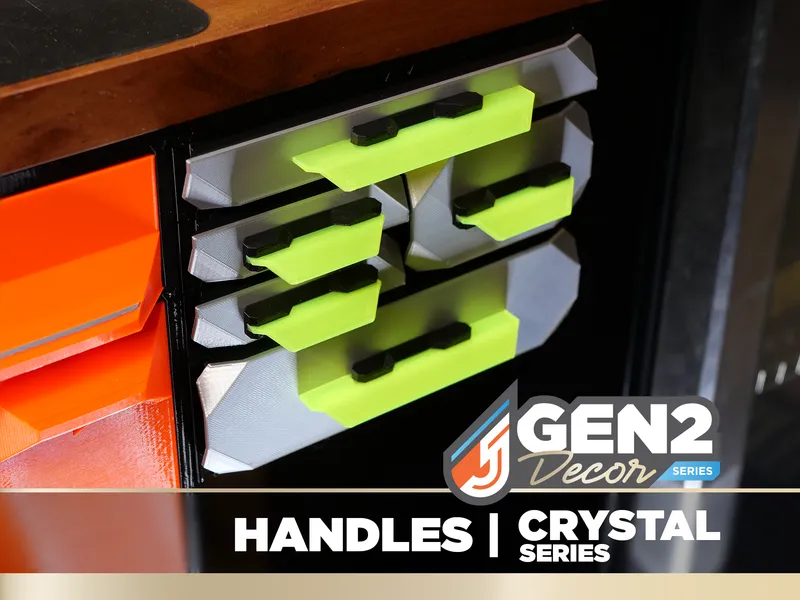

	Crystal Series DOWNLOAD

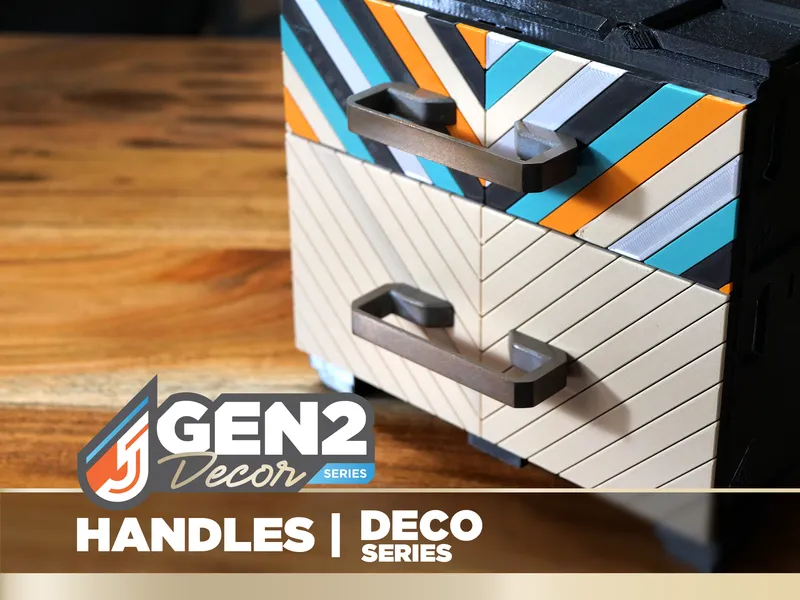

	Deco Series DOWNLOAD

HARDWARE
Includes affiliated links to help support my projects
• Filament - Black PETG (My go to for the drawer bodies)
• Screwdriver
• Countersunk woodscrews: (Metric: 4x25mm to 4x16mm) or (SAE: #6 or #8 up to 1" long)
• Drill bit that is smaller diameter than the wood screws
• Pen, Marker, or Scratch Awl (for installing under tables)
• Magnets (Optional): 10x5x2mm or 10x2mm
• M3 nuts and screws: M3x6 - M3x10- I prefer this kit
• Magnets for Gridfinity (6x2mm) - I prefer these in 300 count
• Magnetic Insertion Tool V2 (Optional)

For basic instruction on assembly please check out the above video

INSTRUCTIONS

• Push M3 nuts into slots on handles/knobs

• After sliding the faceplate into position on the GEN2 Decor Drawer use a M3 screw starting it from inside the front of the drawer, passing it through the faceplate and thread it into the M3 nut on the handle, securing it in place.

• For Gridfinity simply press fit the 6x2mm magnets in place (super glue can be used if needed, pay attention to polarity. I prefer printing and using the Magnet Insertion Tool V2 for this process.

• As noted above you'll also need a GEN2 system of your choice, don't worry, they are fully modular and can be changed around at any time.

___________________________

Gridfinity designed by Zack Freedman
Magnetic Gridfinity developed using Actually Parametric Gridfinity – Base Grid + Bins by pcnc
