Modular 19-inch keystone patchpanel

A modular, two-part 16 ports keystone patch-panel made to fit in 19-inch racks. Each module has 8 keystone jacks.

This mount is part of a 19-inch modular rack mount system I designed, you can mix and match the modules with other mounts. Take a look at my models here to find out the other 19-inch mount modules.

Do you like my models? Consider buying me a coffee ;)

Parts

• 3x M5 screws (Min size: 12mm, recommended size: 16mm).
• 3x M5 hex nuts.

Assembly

OBS.: The modules used in this tutorial are only for illustration purposes, and I'm using it for the whole series. It might not reflect the models you download at this page.

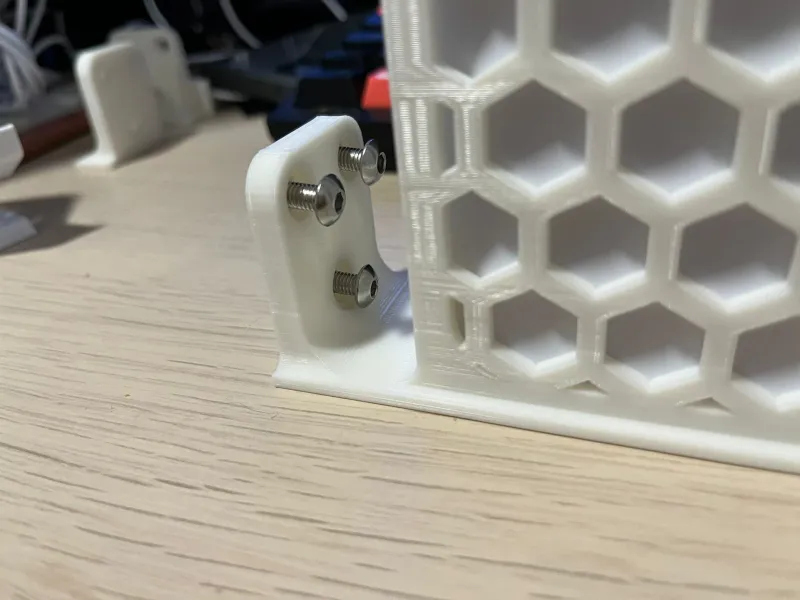

• To assemble the parts, insert the 3 screws into the Right module.

• Then align it with the Left module.

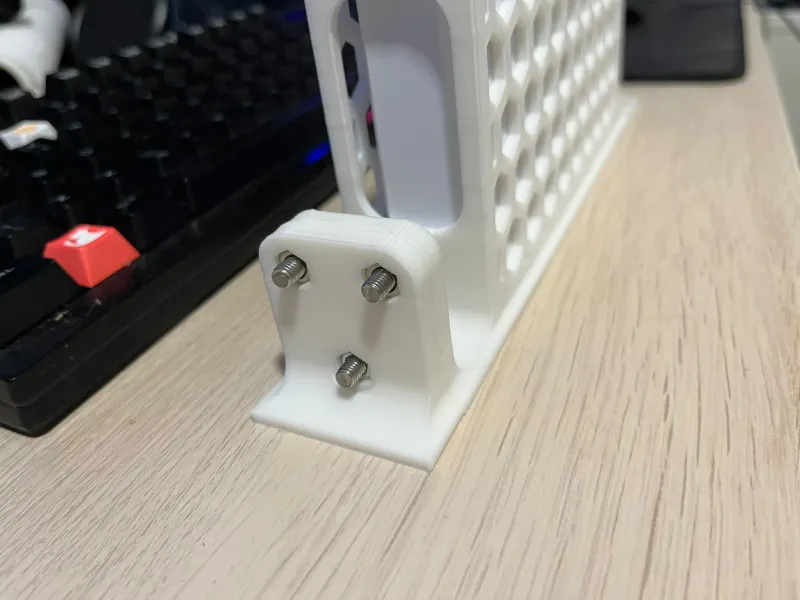

• After that, insert the hex nuts in the screws, and using a screwdriver or Allen key.

• Tighten the screws until you start feeling resistance and the nuts are securely into place. After that, you can install the mount in your rack.

Print Settings

Rafts:

Doesn't Matter.

Supports:

No.

Resolution:

0.2 or 0.24

Infill:

20% or more

Filament:

Any.
