Maker Lamp E14 socket with spanish floor tiles lampshade.

This is a remix of the Maker Lamp for E14 socket - ⌀ 29 mm.

The lampshade is also a remix of SASSy Design's creation, who kindly allowed me to publish the modified model to be integrated into this project. The original model is available here:

https://www.printables.com/model/935964-flower-tile-plant-pot-and-planter-vase-mode-design

Changes to the original:

• Changed the lampshade with a hole to fit the E14 socket - ⌀ 29 mm.
• Changed the lamp body with a hole to fit the E14 socket - ⌀ 29 mm.

Print instructions:

• Print the body lamp: I used 0.4 nozzle with 0.32 layer height and fuzzy skin.
  • 2 perimerters/walls
  • 3 top/bottom layers
  • 10% infill
  • no supports, no brim.
• Print the lid without fuzzy skin.
  • 2 perimerters/walls
  • 3 top/bottom layers
  • 10% infill
  • no supports, no brim.
• Print the lampshade in vase mode:
  • 0.32 layer height
  • 1 mm width
  • slow print (60 mm/sec)
  • no supports, no brim.

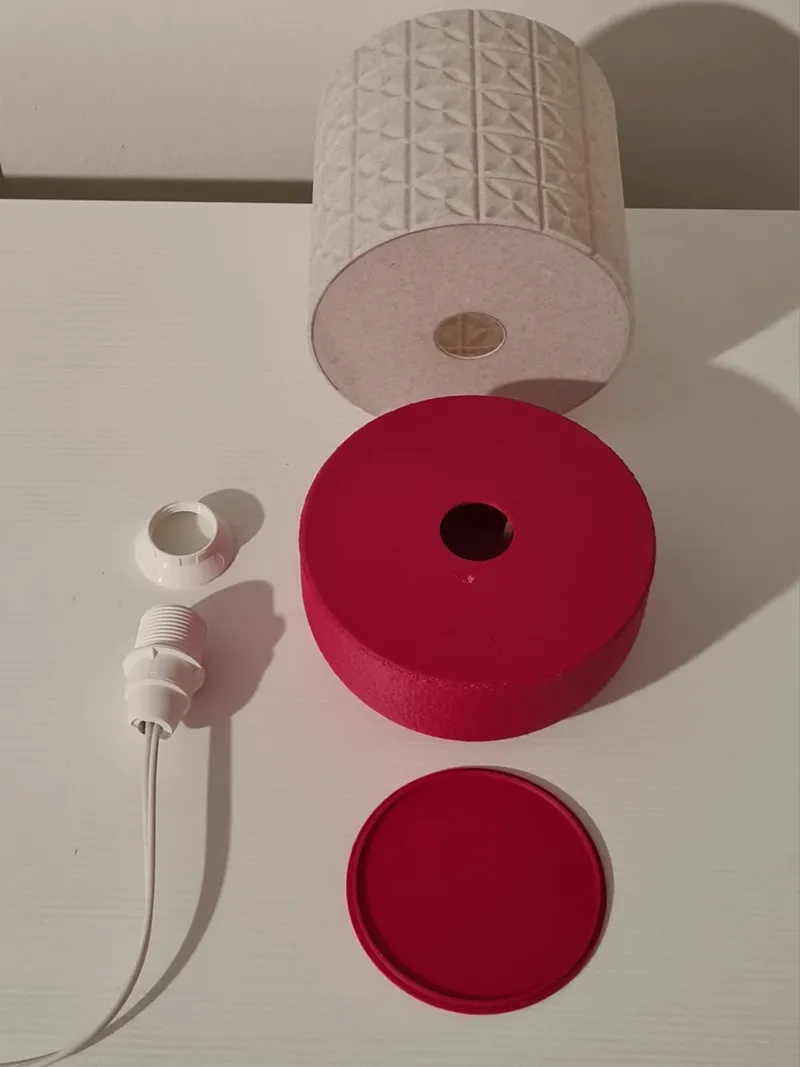

Assembly:

• Insert the E14 socket through the holes in the base lamp and the lampshade, then secure it by screwing on the ring nut:

Changed the base hole in order to fit with E14 socket.
