PCB drilling camera aid for SuperEyes B005

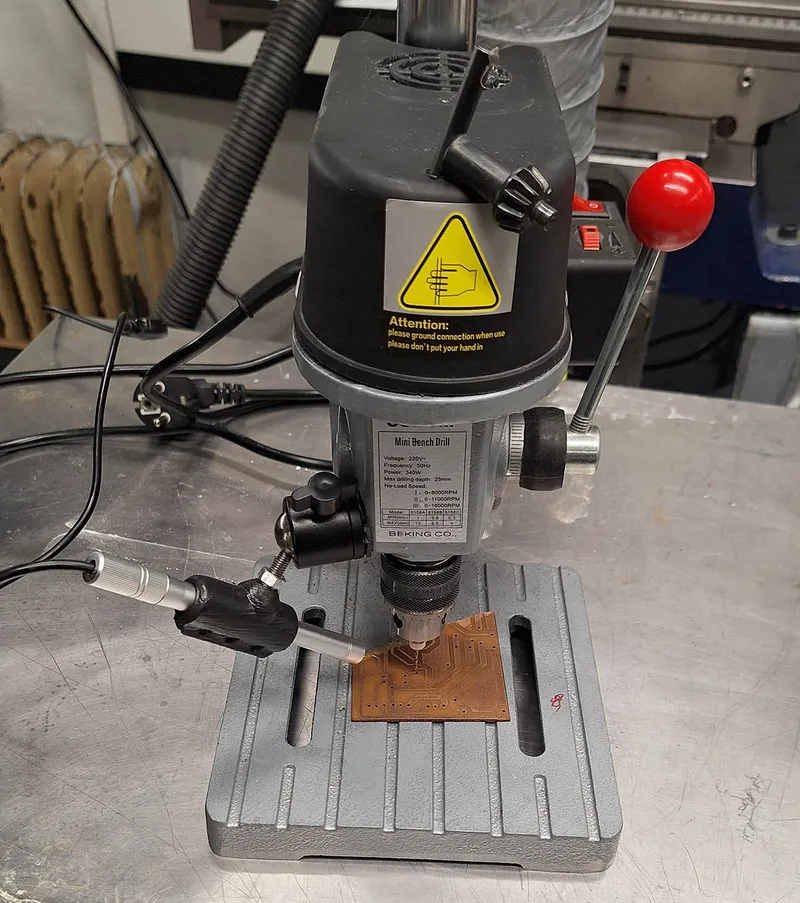

I use a USB camera to get my PCB drilling right, this fitting is made to be able to keep my camera of coice steady!
0
8
0
47
updated November 20, 2024
Description
PDF

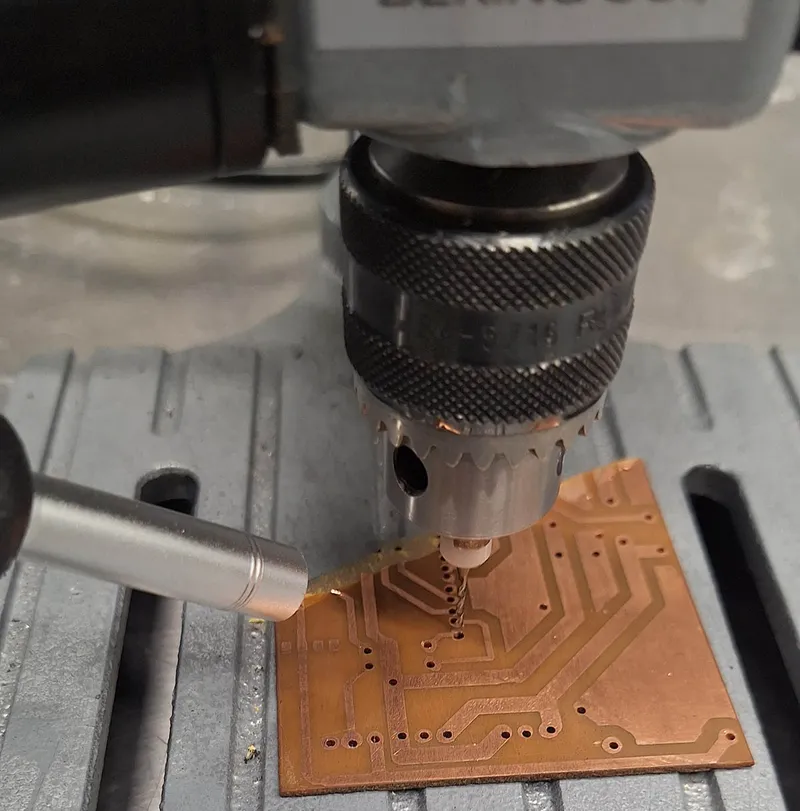

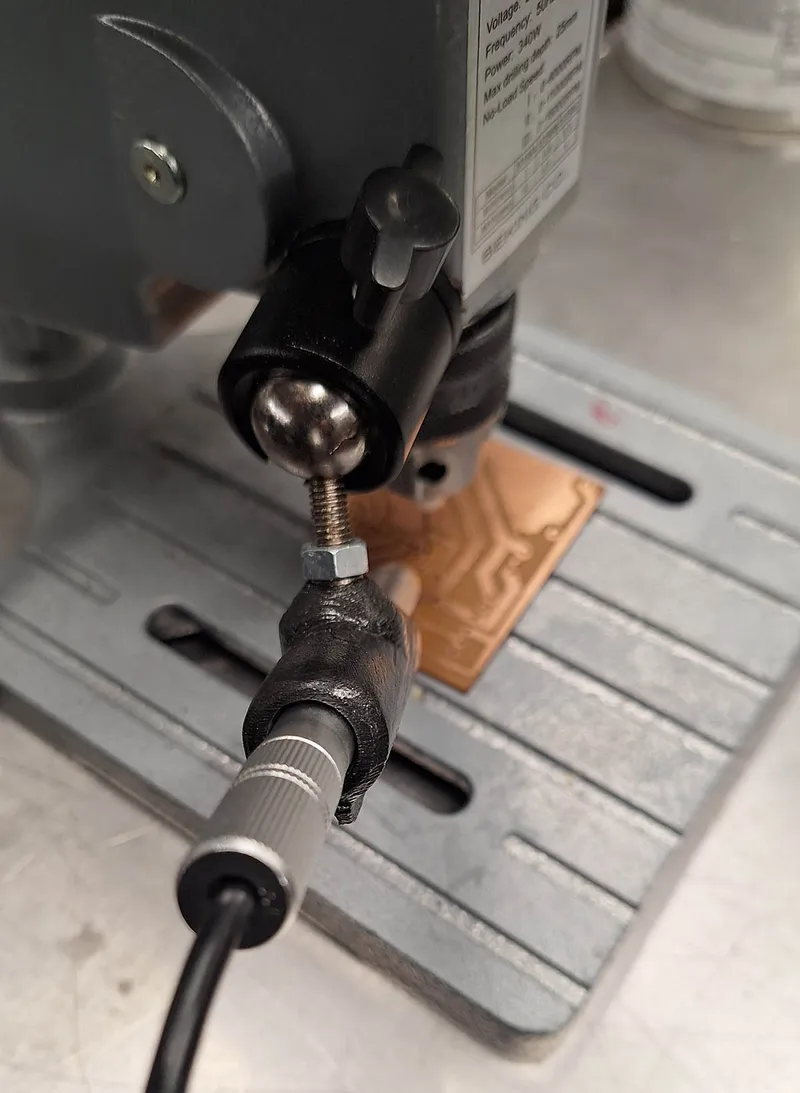

PCB drilling camera aid, to be used with suitable camera aplication with cross hair facility. The paralax error that will be cleear and prescent is not an issue since it will stay where it is.
Tested and verifyed. I must say this is the next best to CNC, I did try laser pointer but that didnt work as well as this solution. My choice of software is CentreCam 1.2.11 but any SuperEyes B005 compatible software with a live view aiming facility will work.
