module adapater biltema (or any metric peg board)

With this adapter you can attach toolholders from the MODULA system.

This is a universal adapter for (metric) PEG boards, this one fits Biltema, Jula, Clas Ohlson, and many others world-wide, CC 12mm (15/32 inch) spacing of the 4mm (5/32 inch) diameter screw holes.

It can also be attached to any wall/surface with screws.

Why use an adapter?

Everyone can share the modules worldwide, and just adjust the adapter plate for their environment. In that way you do not lock into a special great design (gridfinity, ikea skadis, peg-boards, plain walls, honeycomb or random-system), you can use all the tooling from all systems with just one adapter.

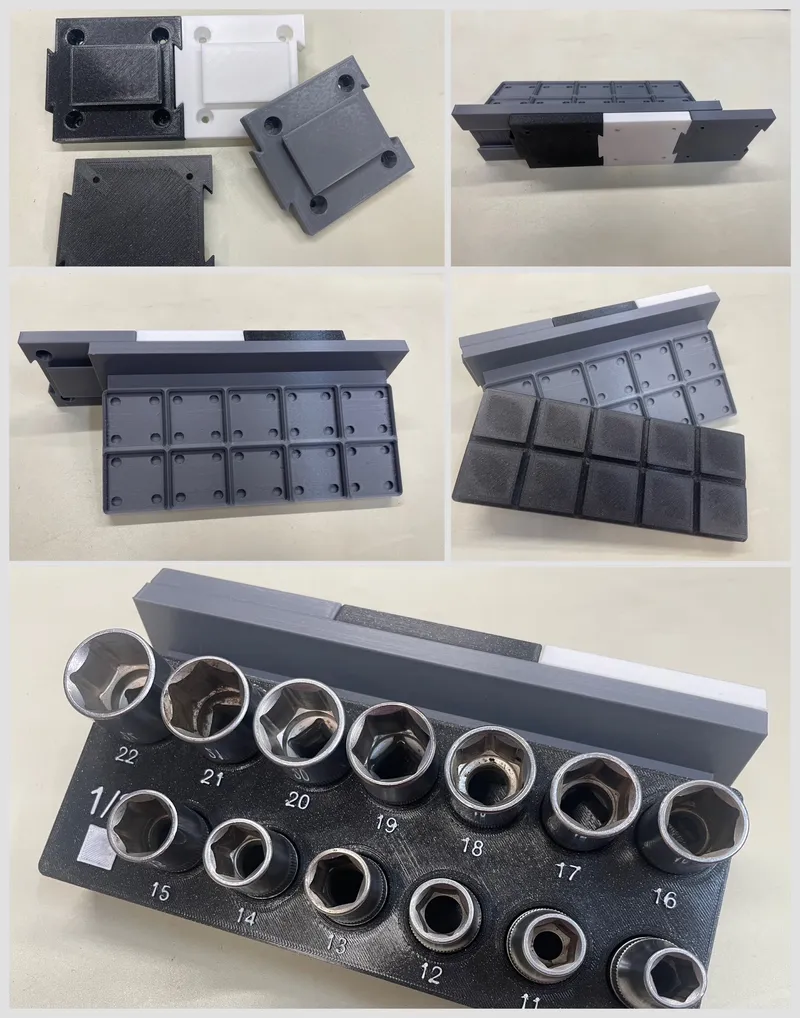

The idea is a adapter plate (metric/imperial/plain) that attaches to a module, the module snaps on to this adapter with dovetails.

Print with 10-20% gyroid/grid infill, no support.

If You need another setup, there is a vanilla adapter with cad files that You can customize for a different peg board .

72mm = 2-53/64", 48mm = 1-7/8", 10mm = 25/64", 4mm= 5/32"

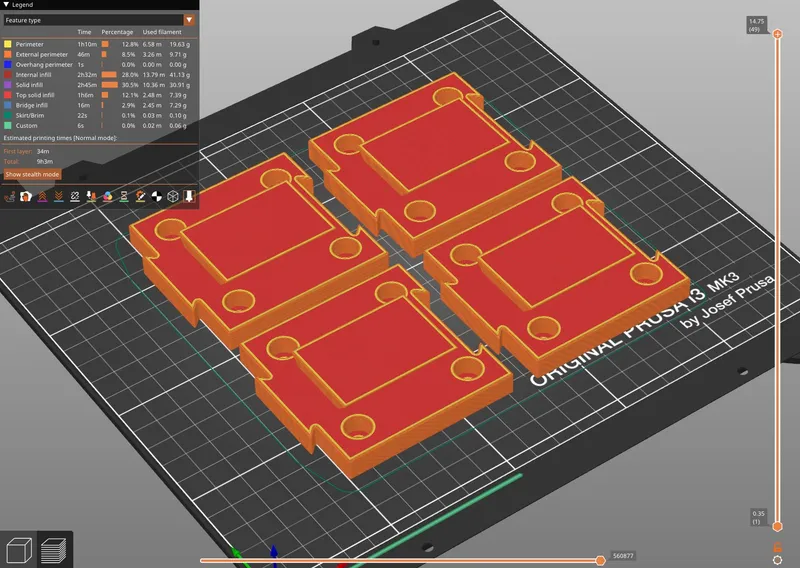

Print settings, filament PLA, layer height 0.3mm, infill 20%, no support,  fill pattern Gyroid,

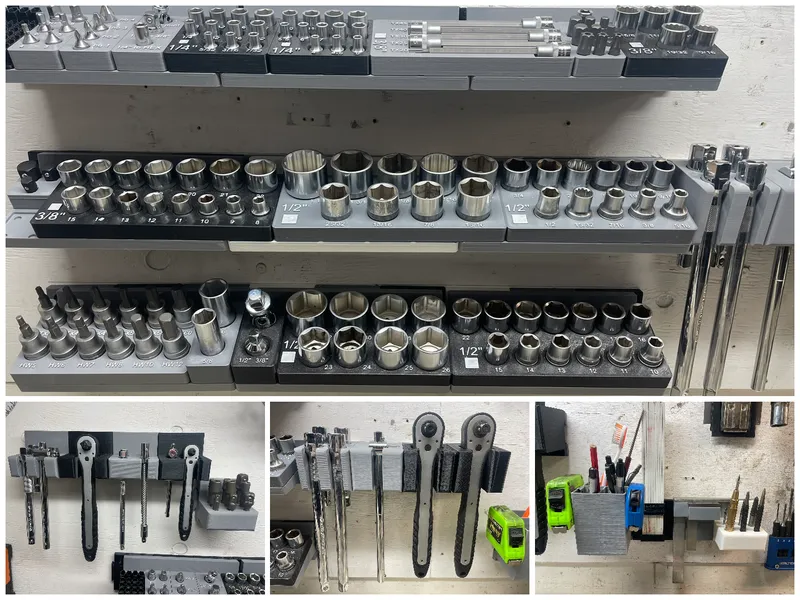

MODULA - a module based tool holder system

The idea is a adapter plate (metric/imperial/plain) that attaches to a module, the module snaps on to this adapter with dovetails.

Why use an adapter? Everyone can share the modules worldwide, and just adjust the adapter plate for their environment.

There is also a   vanilla adapter available here on Printables. The vanilla adapter can be modified so it fits wherever You need to hang these modules.
