Gear on bearing (fusion360)

A 24 tooth gear on a bearing, that can serve as movable decoration/fidget for your hsw for example.
2
5
0
47
updated November 17, 2024

Description

PDF

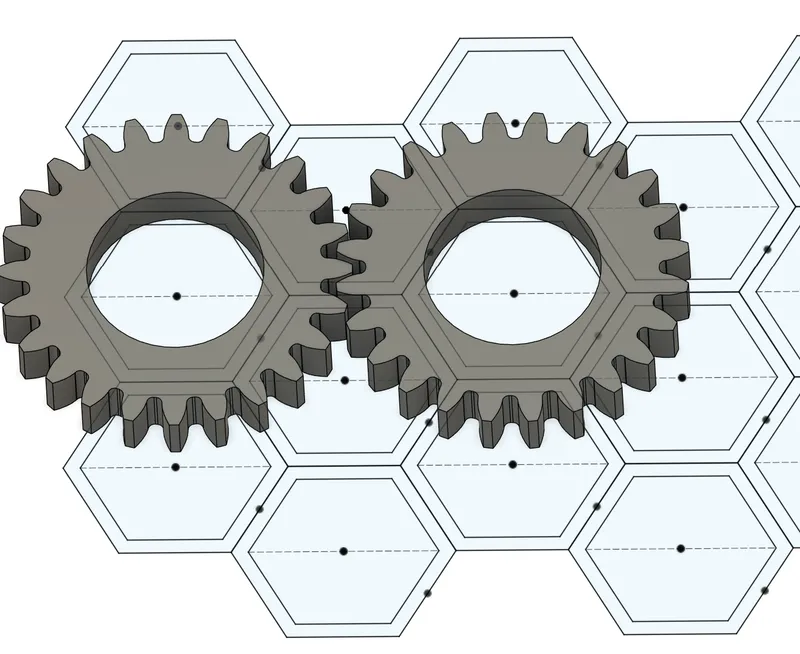

Initially made to be used as moving prop/fidget gadget on a Honeycomb Storage Wall by using this adaptor: https://www.printables.com/model/1062931-hsw-to-bearing-adaptor-parametric. This model was designed such that if you print multiple they are able to mesh while horizontally next to each other on the hsw:

The model can naturally also be used with only the bearing (without the adapter) where you want to have a decoration/fidget/… gear.

The default bearing is an 608(ZZ) but you can change the size through the fusion360 parameters to suit your specific bearing type needs. This is also a bearing model that has a printable option and that is already used in popular prints.



(Bearing image from https://cf.shopee.co.th/file/f4ff5b5e31c9812cbdaf62318068a704)
