Super Customizable Rugged Box in OpenSCAD

👍👍👍

Best model in the world

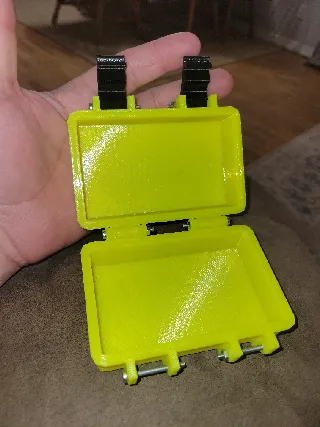

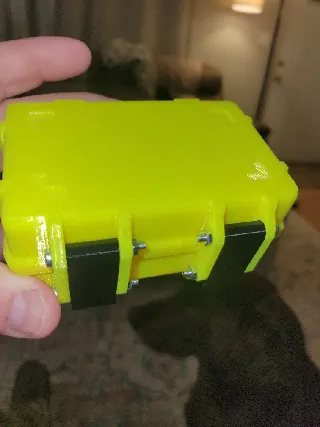

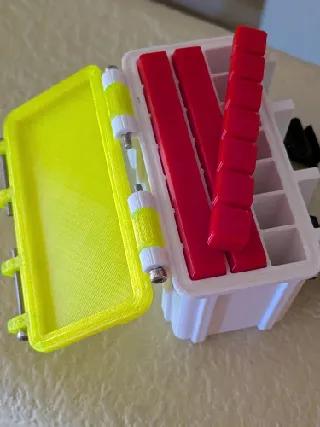

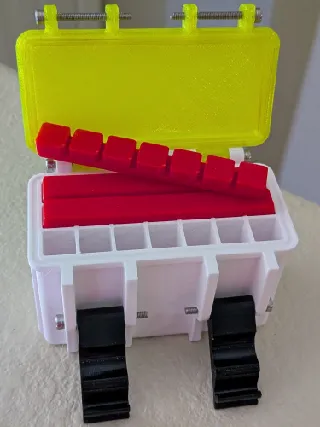

This is a rugged pill box. For me it solves the challenge of organizing my travel pills, while being confident the box won't open.

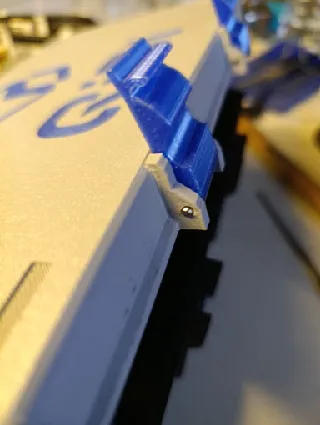

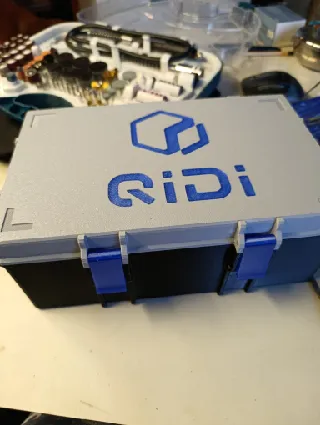

Amazing model. Insane! But I find it super hard to open, did I make something wrong with my latches? Are the bottom screws supposed to be thinner than the top ones? I guess I could re print just the latches, since the rest of the box came out perfectly fine and I don't want to waste it.

Also YOU are a HERO for doing it with open scad so we Linux users can use it! Nowadays all is fusion 360... (edited)

QUESTION - for those gettnig TEXT onto the top of the box - how do you do this? do you have the text and box lid, print using multi-color, on first couple layers? or some other way to inlay it?

this box is FANTASTIC !!. I did a different parametric box, but it has too large of a chamfer in bottom and top edges, decreases the "SQUARENESS" of the box (the more square, the better the storage). so i did a 50 x 50 x 40 box using your file, changed the chamfer (lessened it), and lessened the wall thickness to 2 mm (less than that created an SCAD error). it printed perfectly !! was able to change # latches to 1, and hinge to 1, for testing. M3 screws work great ! Printed with no supports ! I will post pictures later (in the midst of about 10 other printing projects !) thanks for the excellent work !

I really like your design!

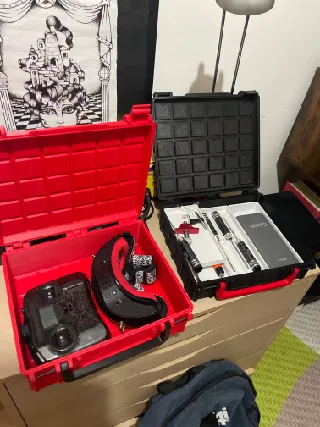

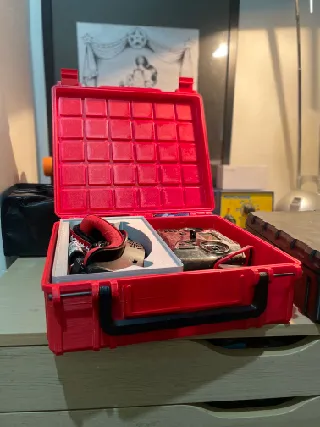

So far, I’ve built two rugged boxes: one for my SSD and one for my power bank. I’m now planning to build a larger version (38 × 25 × 40 cm) for my car.

However, I have one question: it seems that support ribs can only be configured on the side panels, but not on the front or rear panels. Is that intentional?

Or did I overlook the section? 👀 (edited)

Would have added the feet but my glue cap is glued to my glue tube. Love this box. Going to add an insert for driver bits.

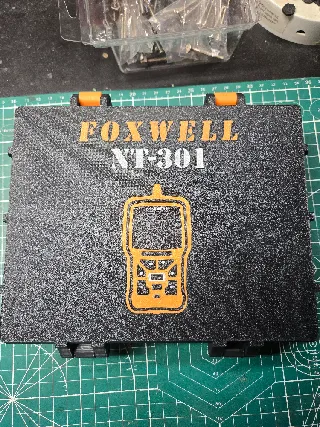

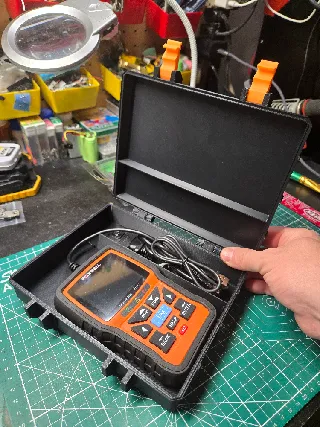

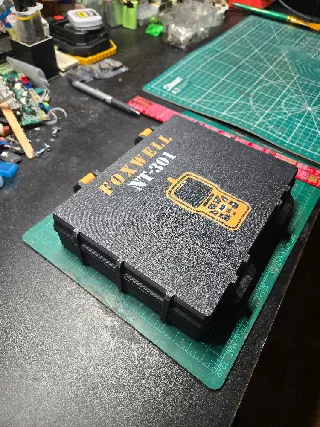

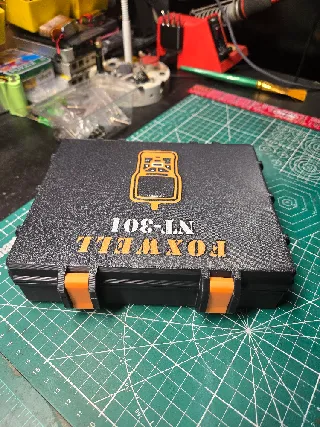

I need another one for this code reader, so here its..come out really good, thanks for sharing.

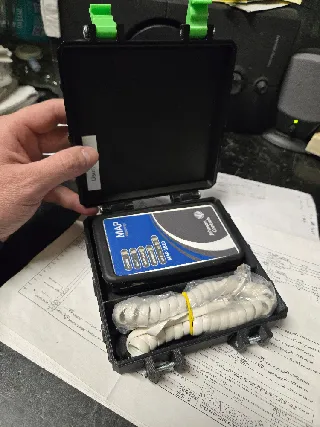

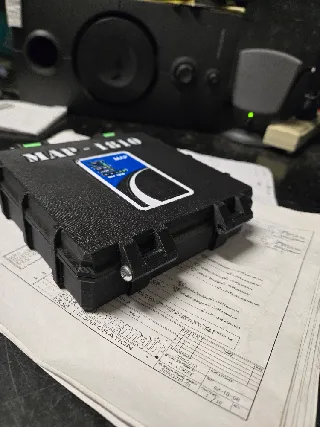

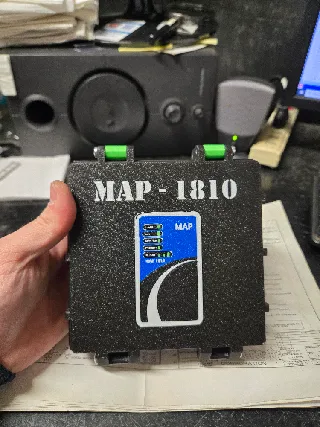

Thanks for the sharing, need to protect some expensive equipment, I add some customization. I'll to see if is possible to implement a way to add the dividers at specific measures or modify the created by the mathematical functions , but its excellent model. Thanks 😊

Lot of work went into this and it is excellent. Well done, sir.
