DIY Dual Coil Wireless Charging Pad

Printing Tips

Printing Technology: FDM
Layer Height: 0.2mm
Perimeters: 4
Infill: 10%
Infill Pattern: Gyroid
Recommended Material: TPU for top and bottom cover, PETG or ABS for frame.
Supports: None
Support Type: None

Notes:
Designed as an attempt to create an LED free charging pad, this DIY design requires no screws or tools to assemble.

I understand this part may not be something you have on hand. If you decide to give this a shot, please feel free to comment with any issues and I will do my best to accommodate making this design work for you.


Clearances can be adjusted on our website. See Customization Instructions for details.

Disclaimer:
This design has been used for regular nightly charging for weeks and has had no issues; however, I make no claims about the safety or reliability of this.
Use at your own risk.

Customization Instructions

Customize your DIY Wireless Charging Pad directly on the Lunar Prototypes website:

DIY Wireless Charging Pad

1. Navigate: Go to the customization tab.
2. Customize: Enter your desired measurements and specific adjustments.
3. Submit: Click submit and wait for design to be complete.

Note: The customization system is currently in beta. We are actively refining it, and your feedback is crucial for our enhancements.

Assembly Instructions

Materials Needed:
Dual Coil Wireless Charging Pad


Link to Assembly Video:

Lunar Prototypes Instagram

Instructions:

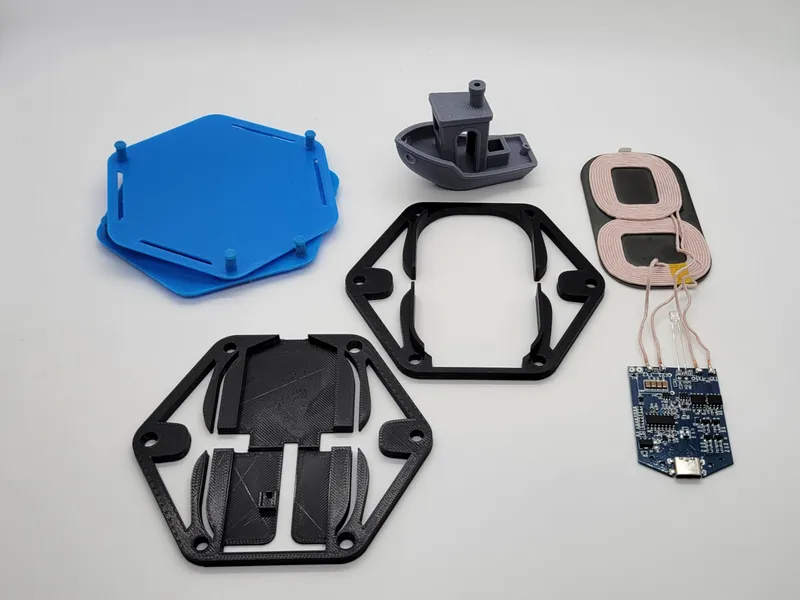

1. Print all pieces

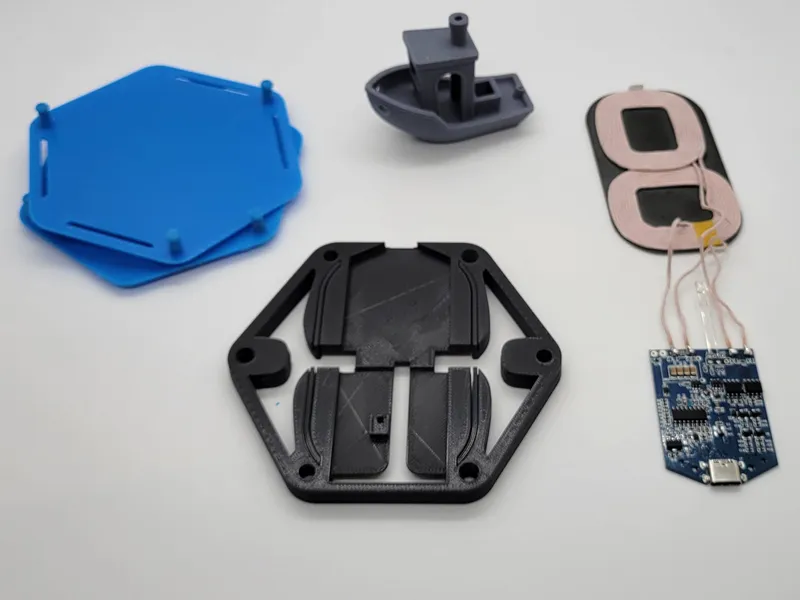

2. Insert coil housing into board housing

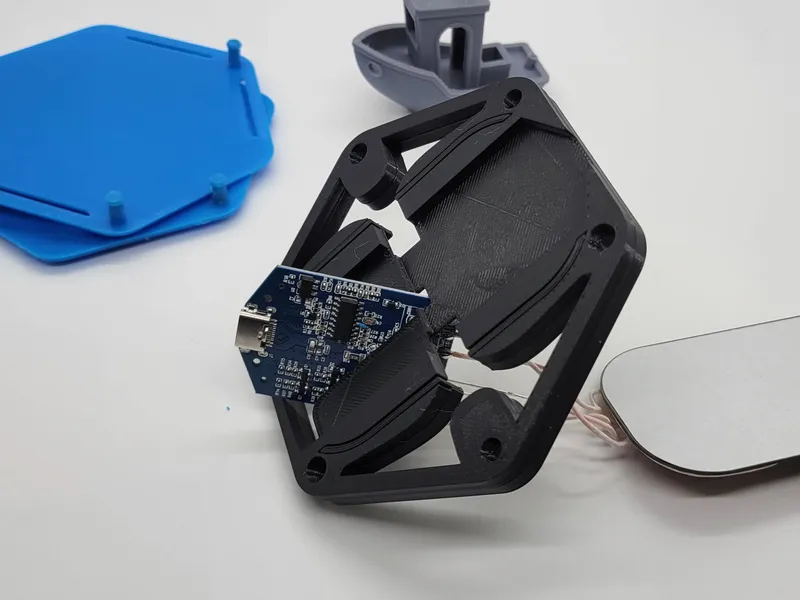

3. Slide board through the opening in the board housing.

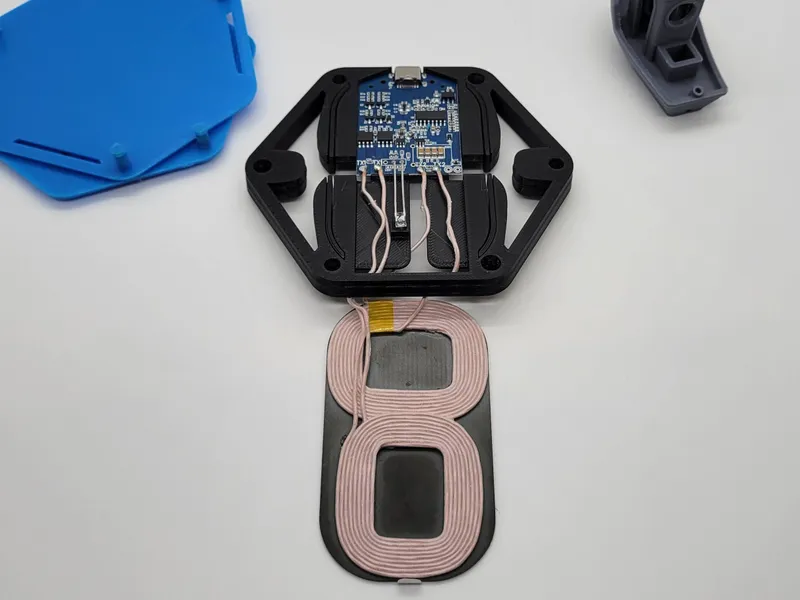

4. Gently press board into place with USB C side at the opening. Push LED into LED housing.

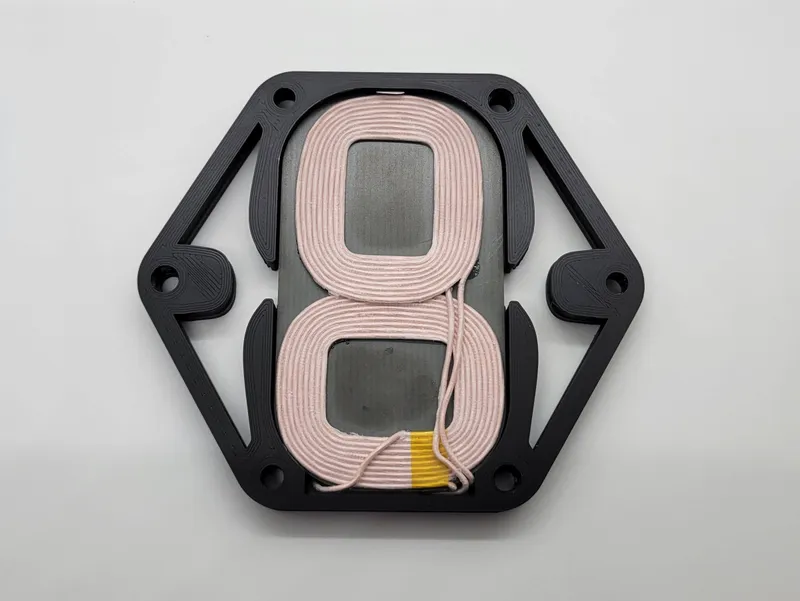

5. Arrange wires so they are on the sides of the coil board and gently press coil board into place.

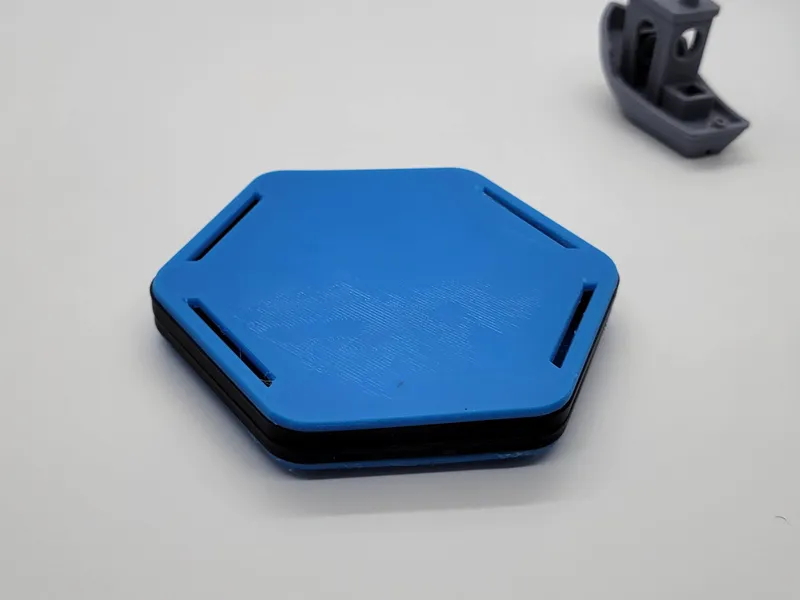

6. Insert top cover so vents are on opposite sides of the USB C connector and pin is on the right. Press into place. Repeat for bottom cover.



7. Insert feet


8. Plug in and charge!
