Sovol SV08 3dchameleon Brackets

Welcome!, here you will find my brackets or mounts if you prefer for the 3dchameleon.

I have made the Switch bracket first.  The other will soon follow.

Switch Bracket BOM:

1x M3 6mm screw

1x m3 8mm screw

I have this attached to the right front of the flying gantry.

The screw furthest back is the M3 6mm.  The closer screw is an M3 8mm so that it can screw into the second portion which acts as a clamp to keep things from moving.  Both pieces have parts that slot into the existing hardware of the SV08.

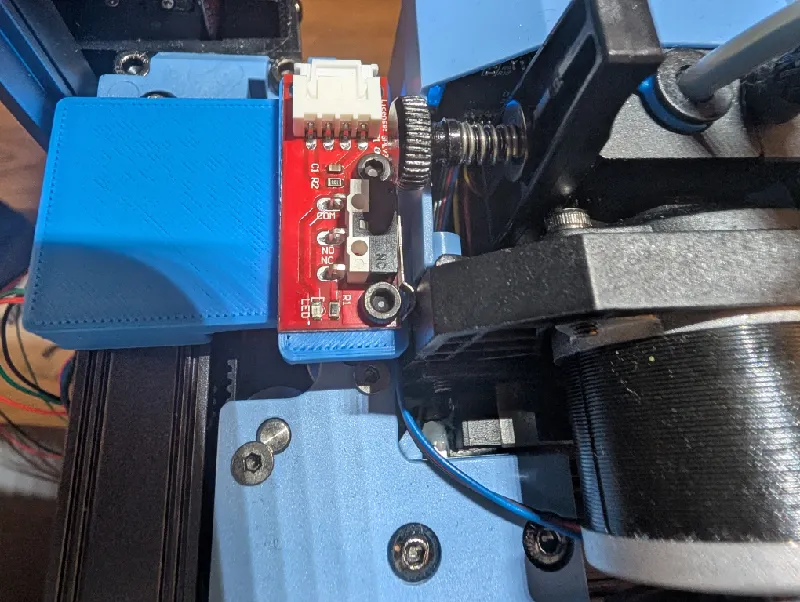

In the images, you can see I made sure to have the switch make contact with the tool head carriage not the tool head cover.

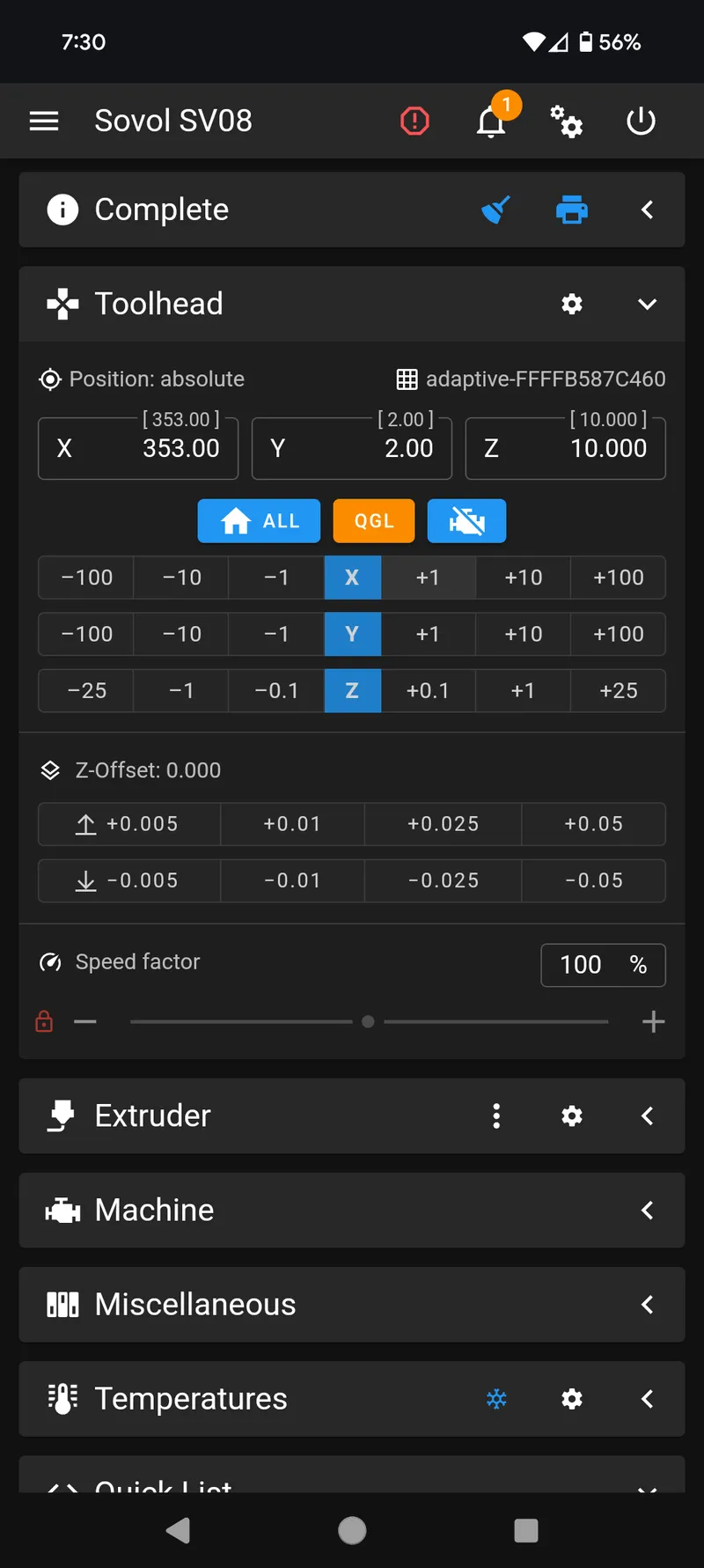

In the above photo the tool head is at:

X: 353, Y: 2
