Dishwasher Rack Stopper

KitchenAid Rack stopper replacement part. Original is easily broken.
3
15
0
89
updated November 5, 2024

Description

PDF

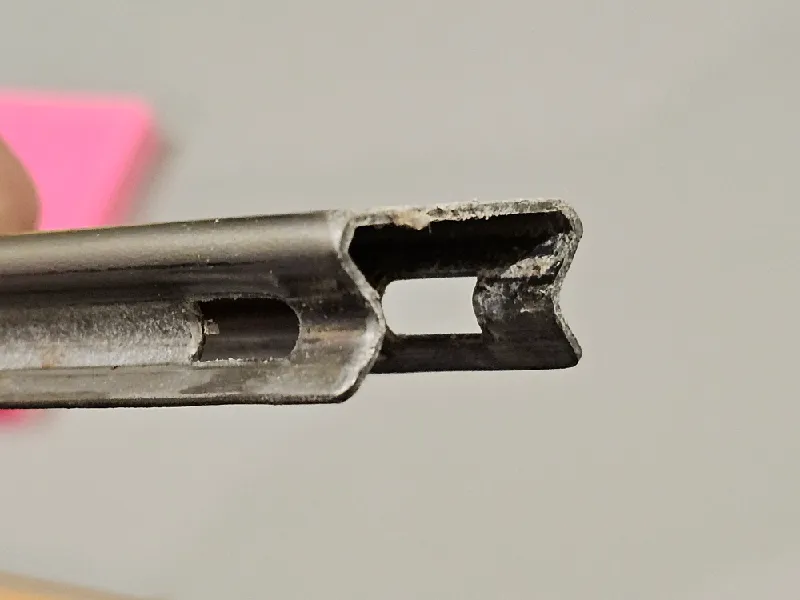

My KitchenAid dishwasher (W10311121B) rack kept falling off due to a worn out part that keeps the metal rails on.  I designed and thoroughly tested a new part.

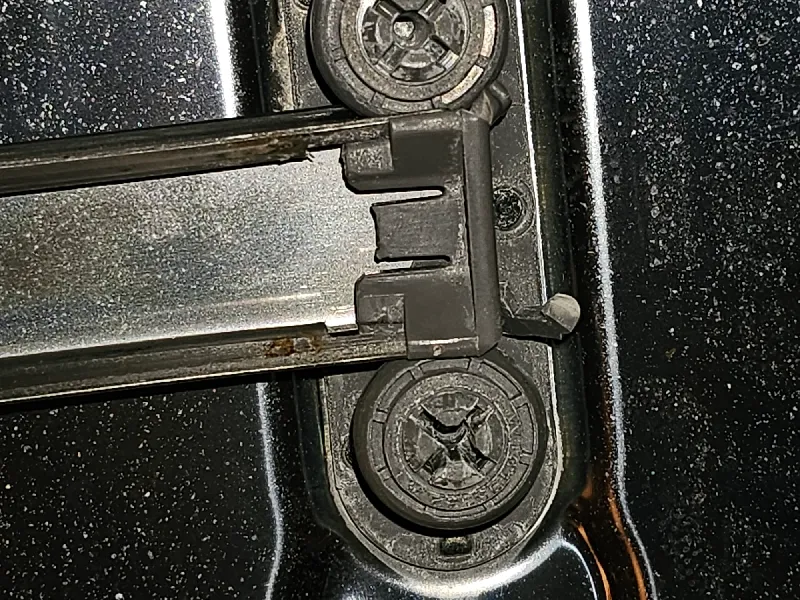

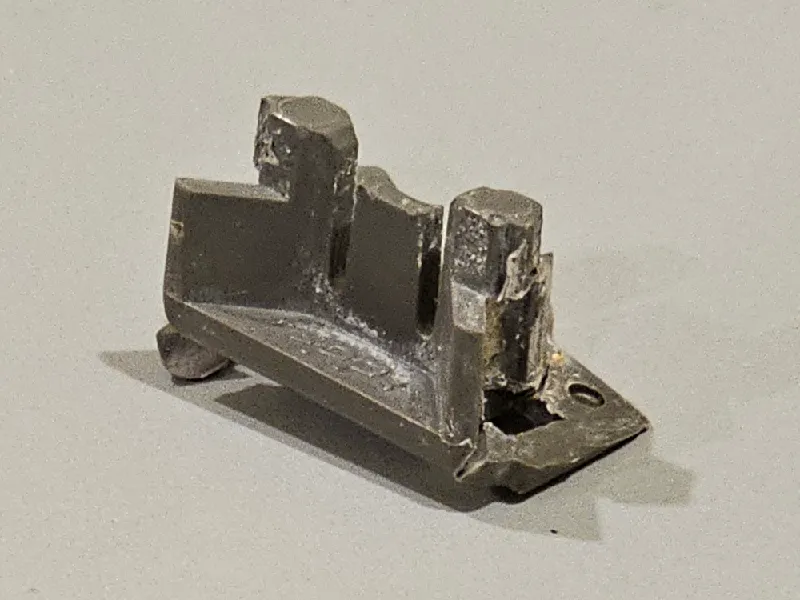

Old Part

Called a stop clip and sells for $6.72 online or $17.51 on amz.

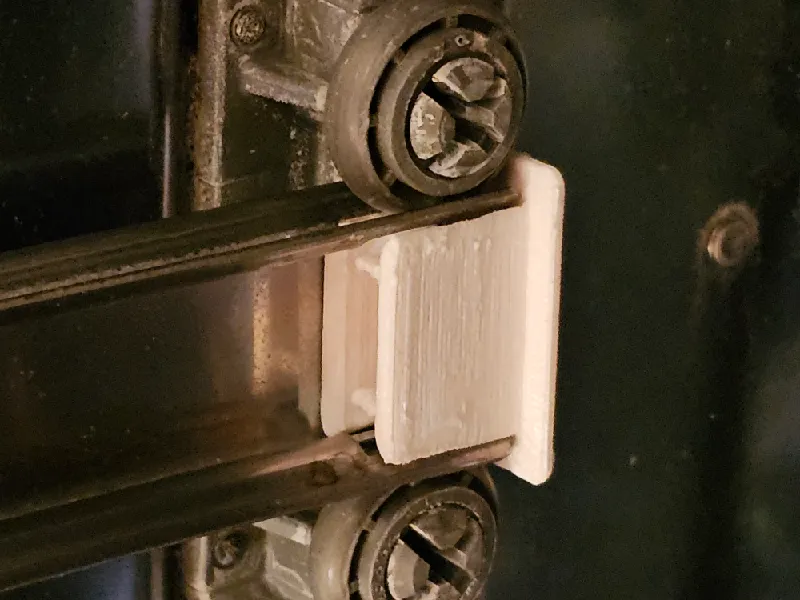

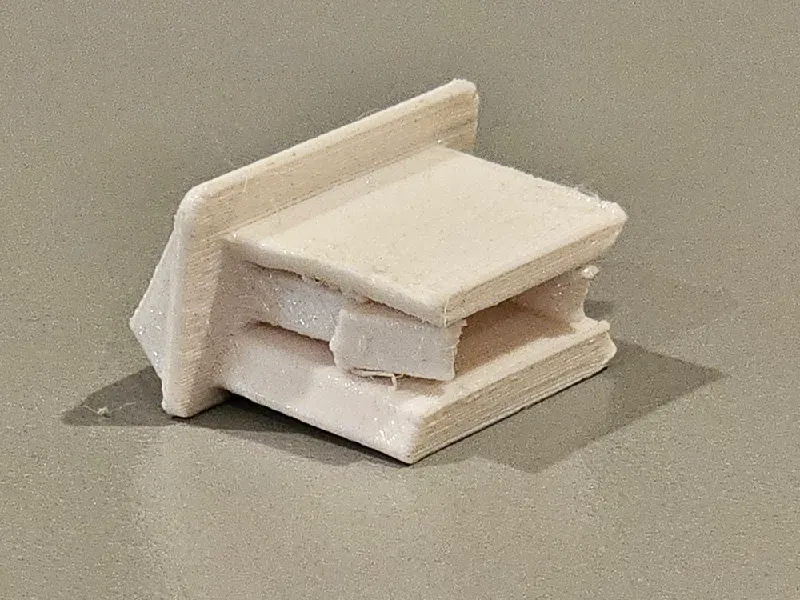

New Part

Inner forks lock part into metal slot holes.

Printed in PETg, 50% infill. Angled on print bed for strength.  Support required.

Similar in purpose to @SchmitzBert's design, but bulkier.
