Microsoft Surface Go / Go2 / Go3 / Go4 - Protective Cover

0 reviews
Protective Cover with handle and routed USB connection to the back
6
70
0
469
updated November 7, 2024

Description

PDF

Was looking for rugged protective covers for Microsoft Surface Go 2, couldn't find anything for my purpose, so had to design my own.

I designed it specifically to use it with my Surface Go 2 but figured out that it fits for  following Surface Go Series:

Surface Go (2018)
Surface Go 2 (2020)
Surface Go 3 (2021)
Surface Go 4 (2023)



The USB connection is routed to the rear through a small channel. Needed it like this for the mobile teller and VAT connectivity module.



Following USB-C adapter and cable were used:

USB-C Elbow adapter
https://www.amazon.de/gp/product/B0CL9SGLW4/ref=ppx_od_dt_b_asin_title_s00?ie=UTF8&th=1
USB-C extension cable
https://www.amazon.de/gp/product/B071DMGKQ2/ref=ppx_od_dt_b_asin_title_s00?ie=UTF8&psc=1



Required Hardware:

Without handle
With carrying handle
10 pcs. M3x14 Socket-head screw
10 pcs. M3 nuts		08 pcs. M3x14 Socket-head screw
02 pcs. M3x20 Socket-head screw
10 pcs. M3 nuts



Can be printed 100% support free.

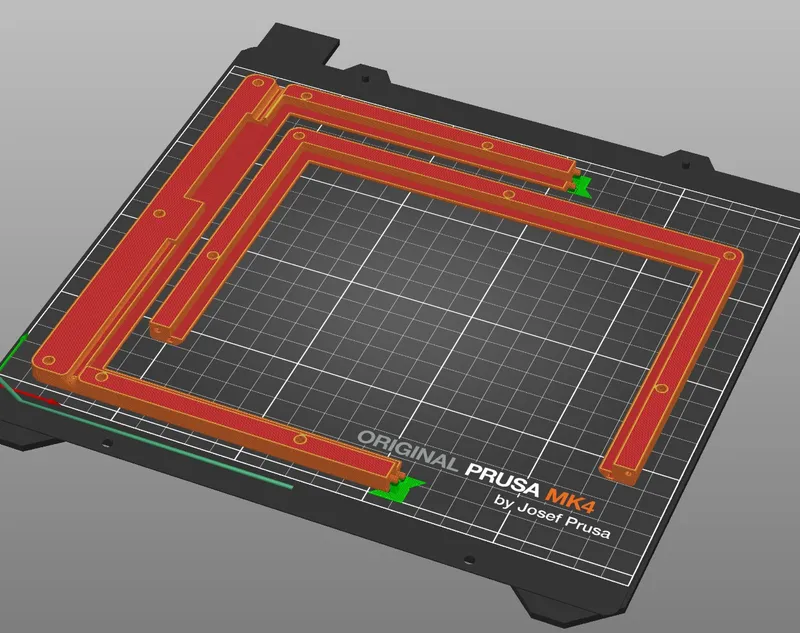

As the long side of the cover is 285mm, you might have to split the frame parts to be able to print on smaller printers. Just make sure you cut front and rear frame parts at different locations.





Uploaded single files as well the assembly in as .3mf files.



Happy printing
