Spool Adapter for Small Spool (compatible with Bambu 's AMS)

AMS Spool Adapter for Small Spool

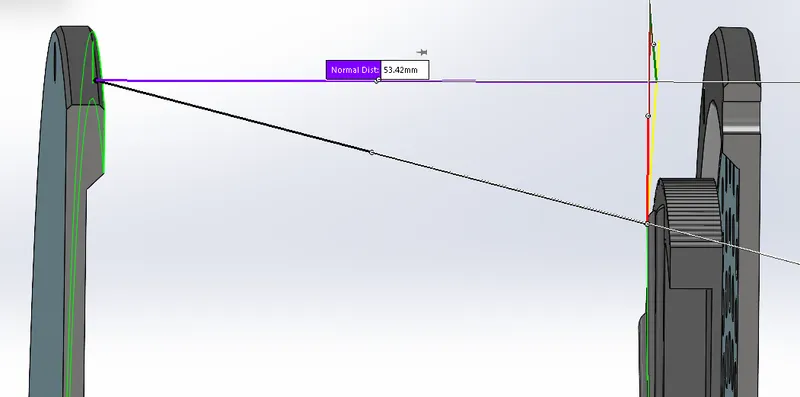

(int.Ø52-55 mm, 250-300 g, h up to 53.4 mm)

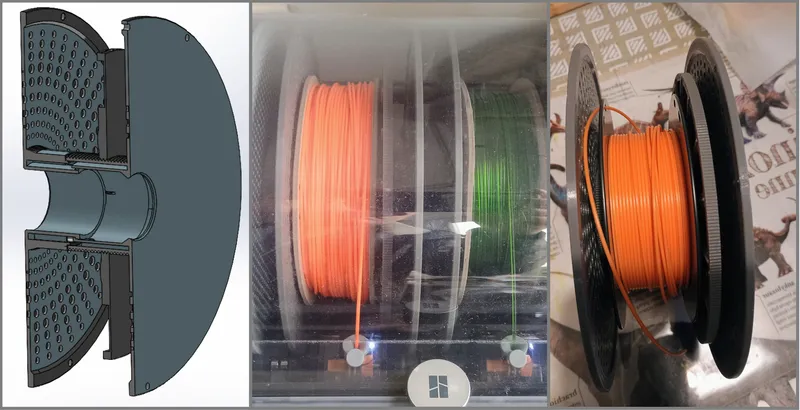

The AMS Spool Adapter is designed for small spools with an internal diameter of Ø52-55 mm. It is generally used for spools with a weight of 250-300 g. The adapter has an external diameter of 200 mm and is compatible with AMS. It can accommodate spools with an external diameter of less than 200 mm and a width of less than 53.4 mm. Also could be used as standard spool.

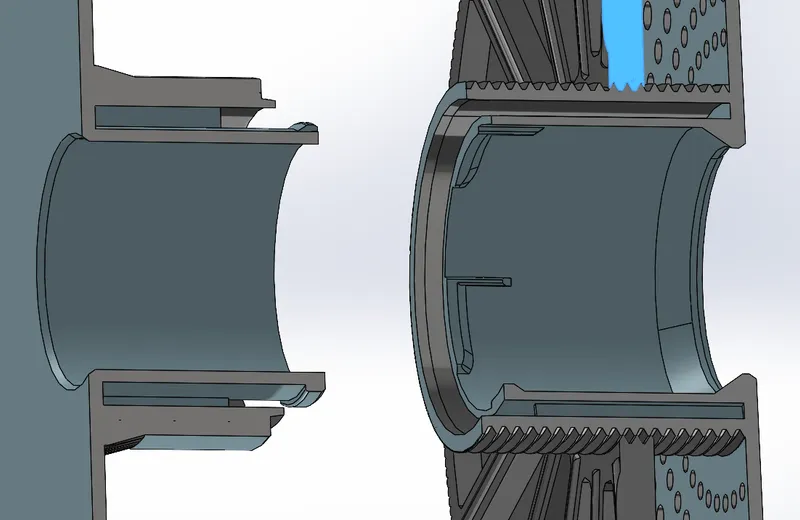

The model based on Hein's model “Bambu Lab Re-Usable Spool STEP”, that is the good refill spool. I used the same concept of lock mechanism between two parts of the spool.

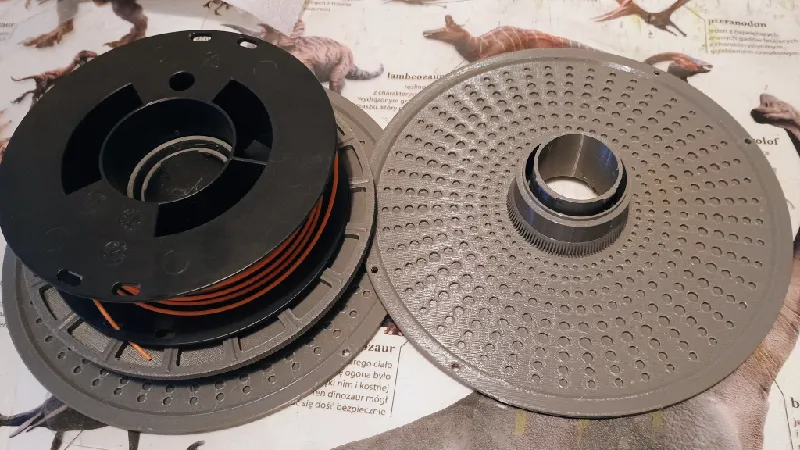

The main difference lies in the dimensions of the central part and the additional component used to fix the smaller spool in the standard 200 mm spool.
