Neptune improved tensioner

Want a better backup for your tensioner in case it breaks?
Too tired of belt rubbing on the ends of extrusions?
Still not tense enough at the end of the movement range?
Or just simply needing an upgrade

This tensioner does it all, being carefully designed to shove as much material into the part, enhancing strenth, it aligns better with the rails on the stock cover, have more tension range, and it uses a proper toothed idler!

🤩 Do you like the design?
Consider supporting me! It immensely help me design more models like this!
Submit feature requests here!

Features:
- Reduces belt rubbing
- Remove potential print artifacts
- Automatically align better
- More adjustment range
- Built sturdier than stock
- Suitable for the neptune 3 and 4 lineup (Excluding 4 Pro!)
- Gates have better bearings allowing for higher tensions and lifespan

NOTE:

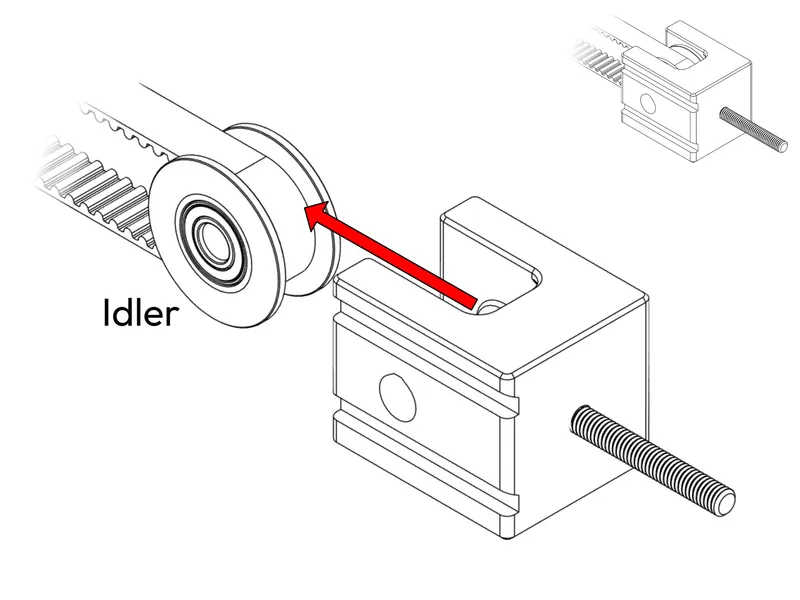

- Put the belt over the idler before putting it in
- Does not work for the n4Pro!

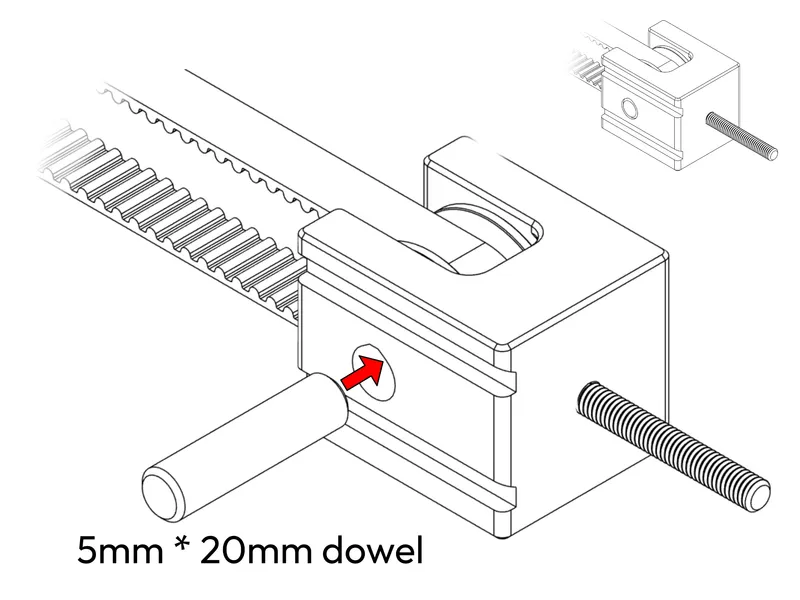

- Dowels/pins may come oversized for the bearing, sandpaper and elbow grease is your friend
- To get good pin OD dimension, I recommend ejection pins (does not come cut to length)

Recommended print settings:
- Walls/perimeters: atleast 2.4mm
- Tolerance requirement: 0.2mm
- Print orientation: as imported
- Supports: none

Recommended materials:
 - PETG
 - ABS/ASA
 - Any low-creep plastic

Installation requires:

(Note:
Buy here (20T W6 B5 With T) - 1 * 4 x 18 x 8.5 GT2 toothed idler (check image)

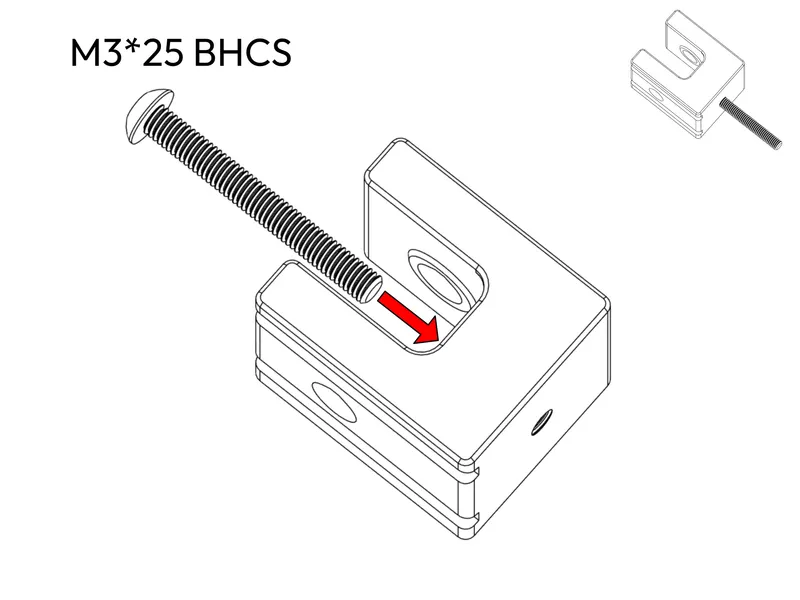

Installation guide:

Changelog:
