I came across an idea about workflow optimizations in a YouTube video, which made me reflect on the mess that often accumulates around my 3D printers—purge lines, skirts, and the occasional failed first layer every few months.

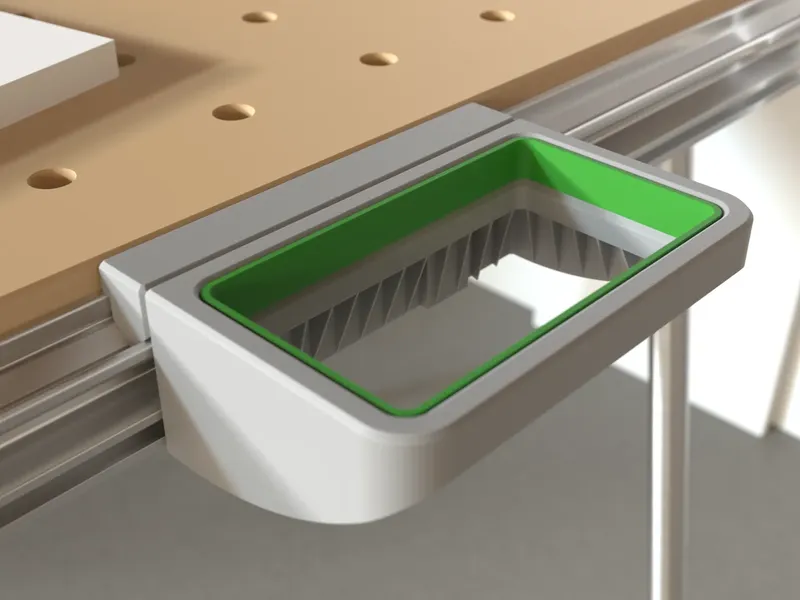

I tried using boxes in the past but PETG is typically not compliant enough to stay in a small container. This sparked a new interest in the topic and I came up with a series of prototypes that finally lead to this design:
This design focuses on balancing functionality, efficiency, and adaptability. Each feature has been carefully considered to ensure reliable printability, low material usage, and strong structural performance. The CAD model is designed to work well for its intended purpose while remaining flexible enough for customization. Below is a closer look at the main design elements.
The most interesting feature of this design are the lofted ribs. They connect the inner ring and outer walls for a maximum in stability while maintaining excellent printability and low material consumption. As with all my models, a usable Fusion 360 file is just as important as the functioning in my specific use case. Finding a way to keep the CAD model resilient enough to handle most parameter combinations took countless iterations.
Much has changed in the last few years about what is considered a "printable overhang." While modern machines print 40° (measured from the build plate) well enough to be the standard setting in PrusaSlicer, I still think thin-walled models work best by keeping slopes above 50°. Nonetheless, the parameter printableOverhang
is used for every slanted surface. If you like to, you could change it.
All vertical walls in this model are generated using the wallThickness
parameter as a value for Thicken/Shell commands . On non-vertical surfaces this would lead to a line-width inconsistency that was addressed where necessary.
Apart from the overall shape, almost all dimensions can be altered without breaking any features. E.g. innerDiameter
, ribCount
, baseHeight
and frontHeight
The provided STL files are optimized for a 0.4 mm nozzle, all walls are designed to be 0.8 mm in thickness. If you plan on printing this model with thicker walls, I recommend adjusting the wallThickness
parameter in the Fusion 360 file. The STL files are all already oriented as intended. When printing a custom backplate, make sure that the steep angle at the top is not printed as an overhang. Material-wise PETG, PLA, ABS/ASA will all work fine. In my testing I had one delamination with a backplate printed in PLA but if printed dry and at the right temperature that shouldn't be an issue.
Parameter names starting with _
are model-internal calculations and are there for documentation purposed, don't change these. All other parameters can be modified.
The file it surprisingly stable to even bigger changes, some may still break individual features. If that happens start resolving the conflicts in the timeline from left to right, some may clean up by themselves.
innerDiameter
you will most likely need to change mountingPlateWidth
as well.-ribCount
parameter, the last Combine Feature will throw a warning. Increasing the value requires updating the feature by selecting the additionally created ribs when decreasing the value, recalculate the feature by double-clicking it in the timeline and confirming it.The author marked this model as their own original creation.
