Qidi Q1 Pro Nevermore V6 filter Frame Mount

This model is loosely based on https://www.printables.com/model/981928-qidi-q1-pro-nevermore-v6-filter-mount, but completely redesigned to fit on the right side of the chamber. I have designed in slots for M3 nuts. This was printed in Polymaker ASA, 4 walls at 30% infill.

The wires for the nevermore can be routed around the corner into the back, or through the exhaust fan hole. This mount is surprisingly rigid for being so thin, as I wanted it to show off the nevermore without being too thick.

This model requires 6x M3 nuts: 3 slot into the mount itself, 1 for mounting the thermistor, and 2 inside the nevermore body. If you used heat-set inserts for the hole on the sides of the Nevermore V6, then these 2 M3 nuts are not needed.

you will also need 4x M3x14mm (15mm or 12mm may also work) and one M3x10mm (10mm bolt is for the center hole on the top-front of the Nevermore v6

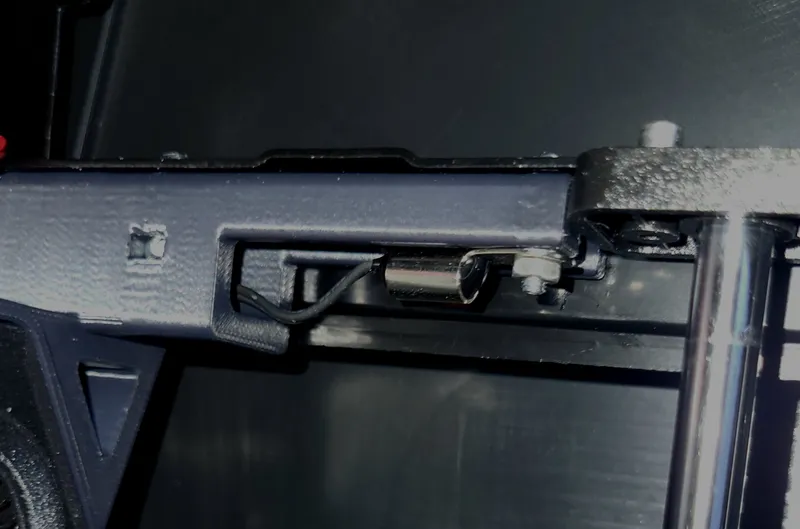

The 14mm bolt on the far side extends past the mount, allowing for another M3 nut to secure the chamber thermistor to the mount. I may design a spacer to add some distance between the thermistor and the mount, but this is a tight spot. There is only about 2mm of clearance from the build plate frame and this thermistor.

***WARNING***

The bolt on the end of the mount closest to the tip can collide with the build plate if not short enough. Make sure the build plate can completely clear the mount before printing, otherwise the platform can become skewed.
