Shaft Concentricity Tool

Tool for roundness checking of shafts.
1
19
1
130
updated March 9, 2025

Description

PDF

Shaft Concentricity Tool

Instruction:

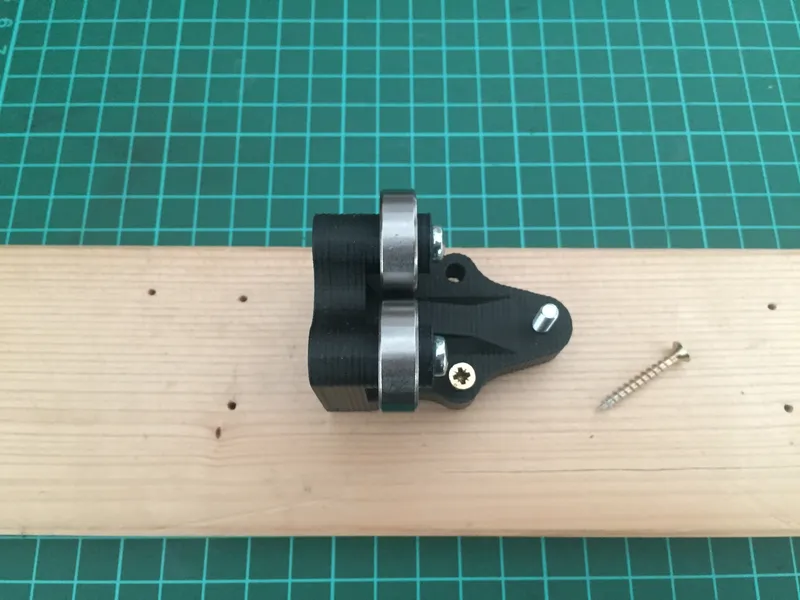

The tool can also be screwed onto a wooden plate to make it more stable.

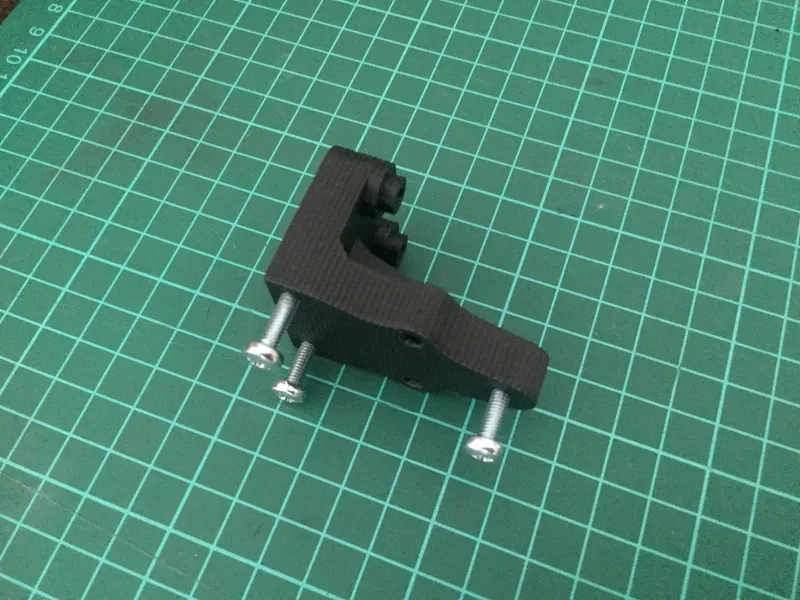

The lower screws are used to level the tool.

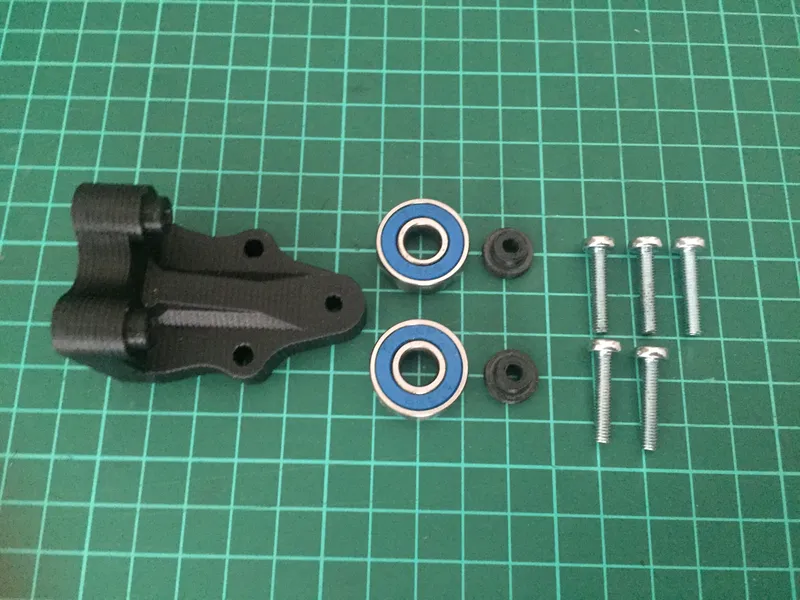

Material for a tool:

2x 608 skateboard bearings

4x M4x20 Screws

2x wood screws

1x 3D printed Shaft Concentricity Tool

2x 3D printed Clamp

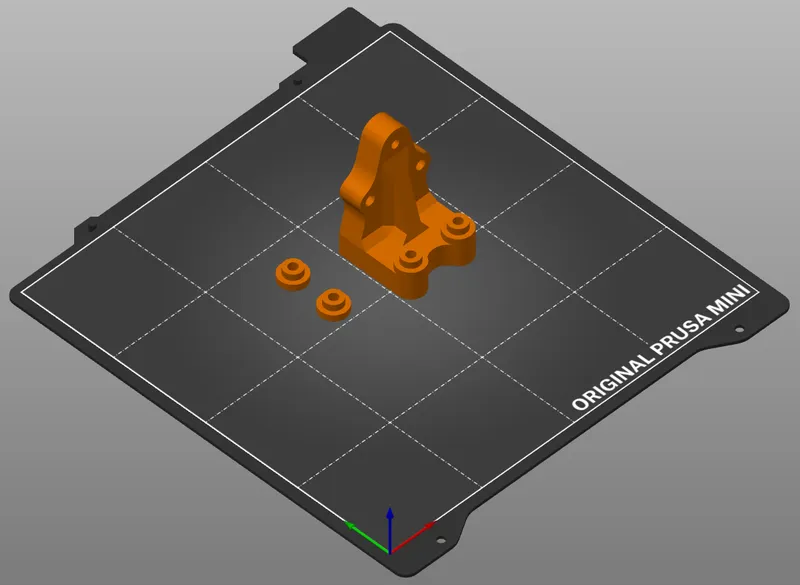

Print orientation:

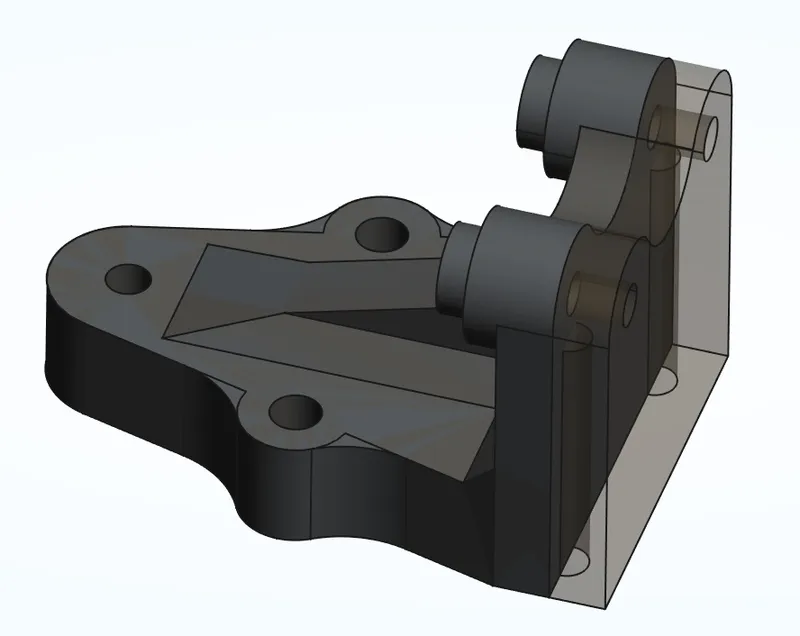

Version 2:

5 mm back wall thickness

Credits:

Designed with the help of FreeCAD, made possible by the dedicated efforts of its community.

https://www.freecad.org/



Model origin

The author marked this model as their own original creation.
