Yagi antenna quick release mount/Быстросъемное крепление для антенны Уда-Яги

Instruction:

Hardware:

Printable parts

Aluminium profile 20x20x1.5mm

Aluminium pipe or rod 6mm

M3x5mm screw - 4x or 2x (see below)

M3x20mm screw - 2x

M3 nut - 4x

3mm washer - 2x

M5x35mm screw - 1x per mount (or M5x30mm, but better 35mm)

M5 nut - 1x per mount

5mm washer - 1x per mount

Dipole mount exploded view:

Hole for dipole pipes

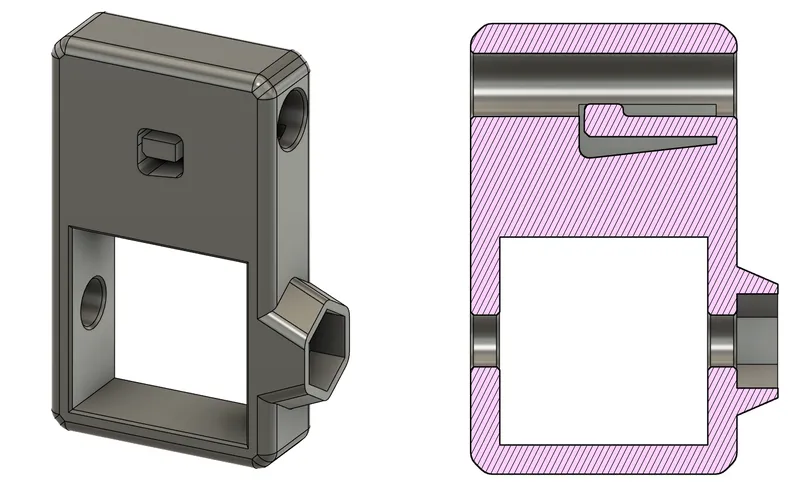

Director mount:

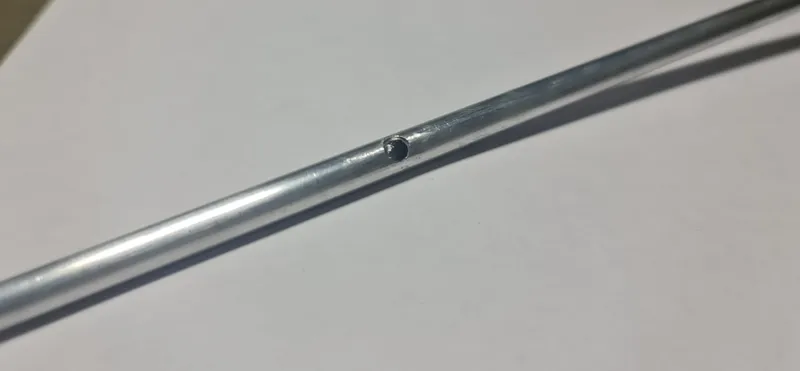

The hole in the middle of the pipe, diameter 4mm!

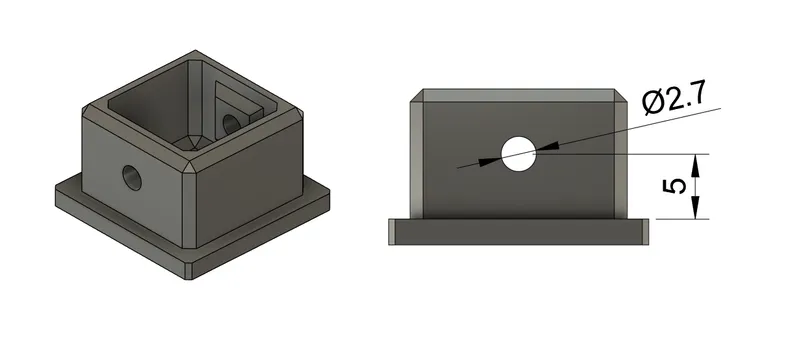

Boom plug or boom plug sma:

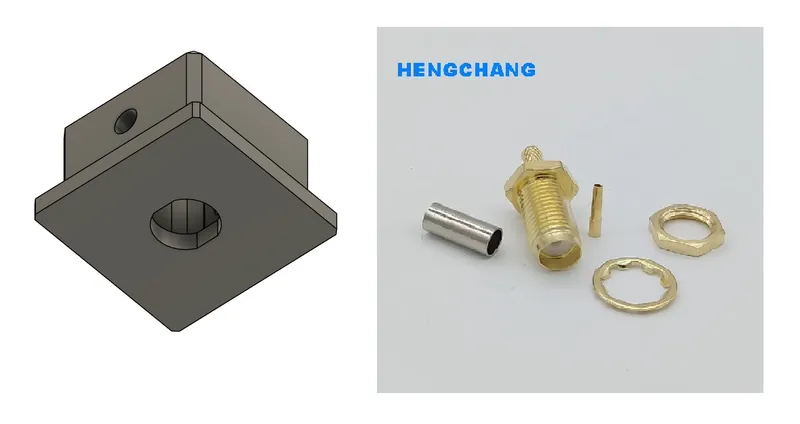

For sma plug i used female sma for rg316 (The height of the hole is the same)

Also added an option for attaching the plug and director with a single screw

How it works:

For directors:

1) Simply slides the pipe or rod into the hole until it clicks.

2) To pull it out, you can twist the pipe or press on the “tongue” on the mount.

For dipole:

1) Just unscrew or tighten the screw

Notes:

In the dipole pipe, close to the hole, I melted the solder so that it wouldn't crumple.

Print one director mount first and check that the pipe fits snugly and also fits snugly on the profile, and apply a multiplier if this is not the case. Adjust the plugs in the same way if you use them.

P.S. If you need, I can post .f3d or .step files.

P.S.S The dimensions of my antenna:

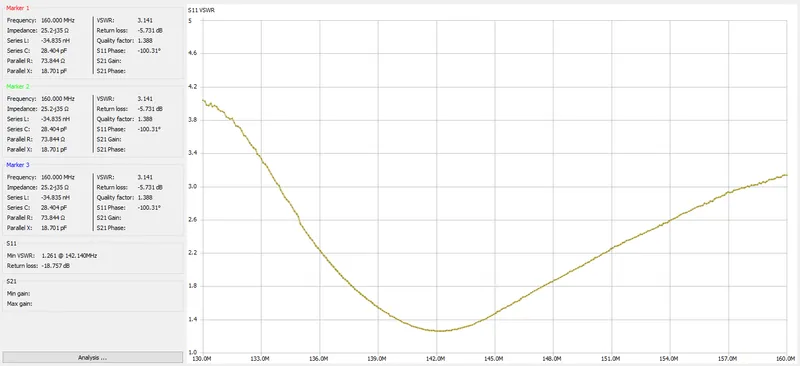

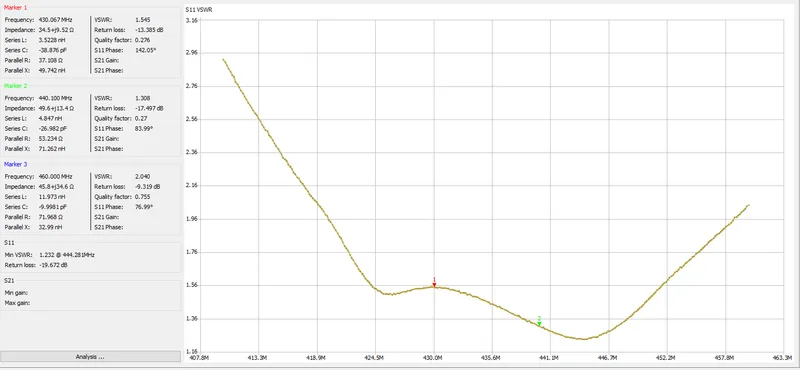

Measurement results:

The results aren't the best, so I wouldn't recommend making an antenna for these sizes.

73!
