EVA 3 toolhead made for V-minion 1.1

i used the LGX-Rapido combo but you can of course use other stuff as well :-)

if you wanna go sensor less (I recommend)
use this mod
https://www.printables.com/model/382785-eva3-stop-block-for-sensorless-homing

if you wanna use a 40mm fan inlet with heat inserts
use this mod
https://www.printables.com/model/335085-eva-cooling-inlet-40mm-heat-insert-mod

changes i have done :-)

the 2 above of course

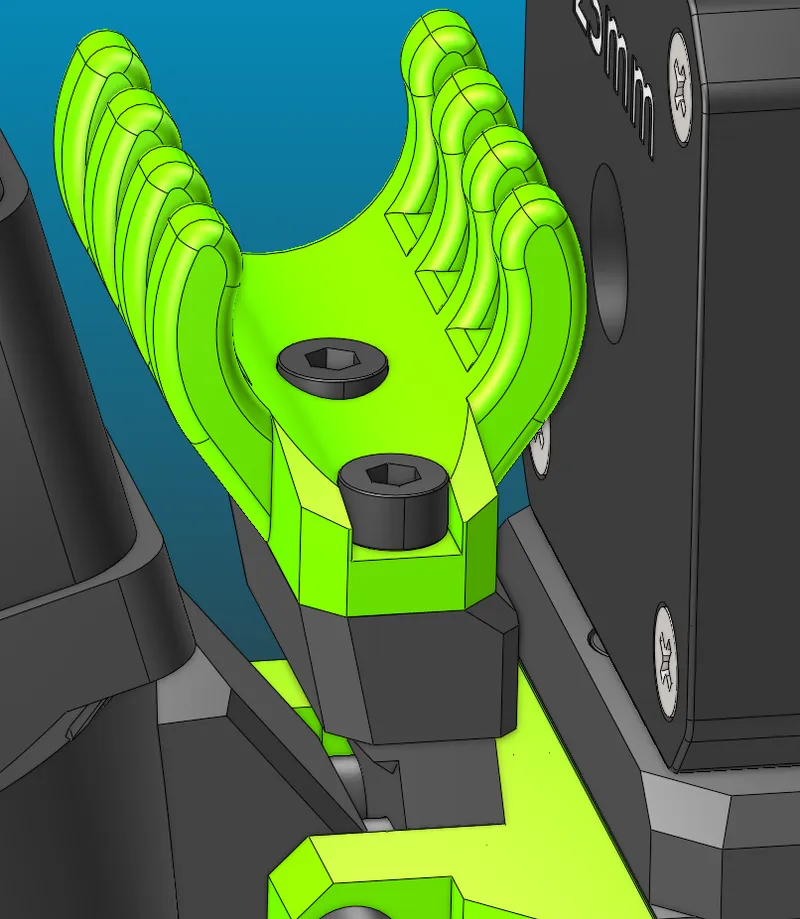

cable guide mount: It is moved back to clear the LGX
cable guide : i have offset some faces so it align with the mount faces
                       you can use the original if you want to

Back Cartesian 9mm: this now takes 9mm belt and i have cleaned it up a little

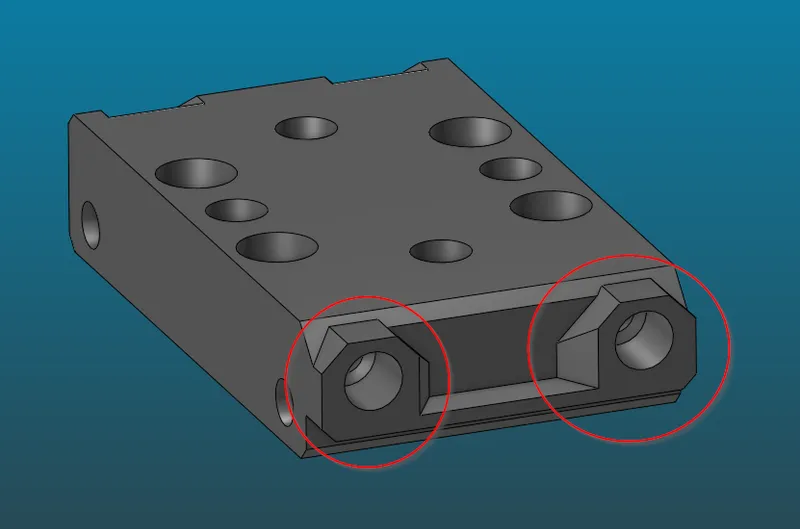

Belt grabber 9mm: this now takes 9mm belt and made it with heat inserts

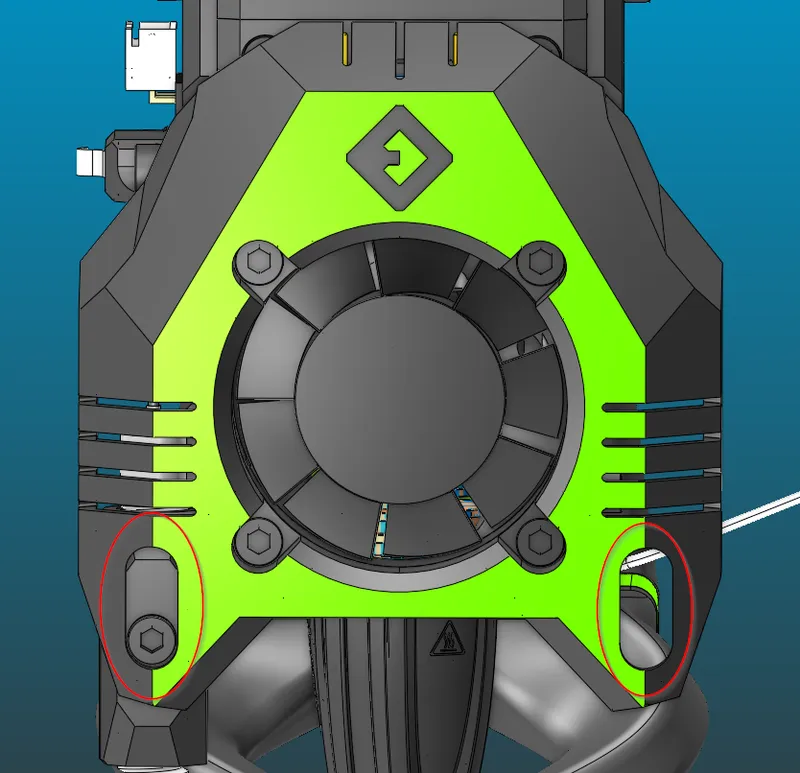

Tank shroud: i have just realigned the slots so they fit the 8mm probe screw
                         you can use any of the original designs here

Top endstop: redone the end to fit heat inserts

Front: removed belt grabbers added a 3rd contact for probe mount
            cleaned the back so it have more air flow
            tightened the holes for the adxl

probe mount: added a 3rd screw and made it easier to print

LGX mount: added some chamfers and redid the opening so you can mount it
                       directly out of the package.

redesigned for 9mm belts

fitted it for the v-minion

added heat inserts in some parts

made small design changes
