Rubber plug for wood worm treatment

The plug is used to fill nearly horizontal 10 mm diameter bore holes with woodworm treatment liquid.
1
5
0
42
updated October 20, 2024

Description

PDF

The plug is used to seal the end of 10 mm bore holes in a wooden beam, so that it can be filled with liquid for woodworm treatment. One of the beams in my hut needs it desparately.
Due to geometrical limitations I can only drill nearly horizontal holes. Filling these without a plug is not possible, because the liquid would simply flow out.

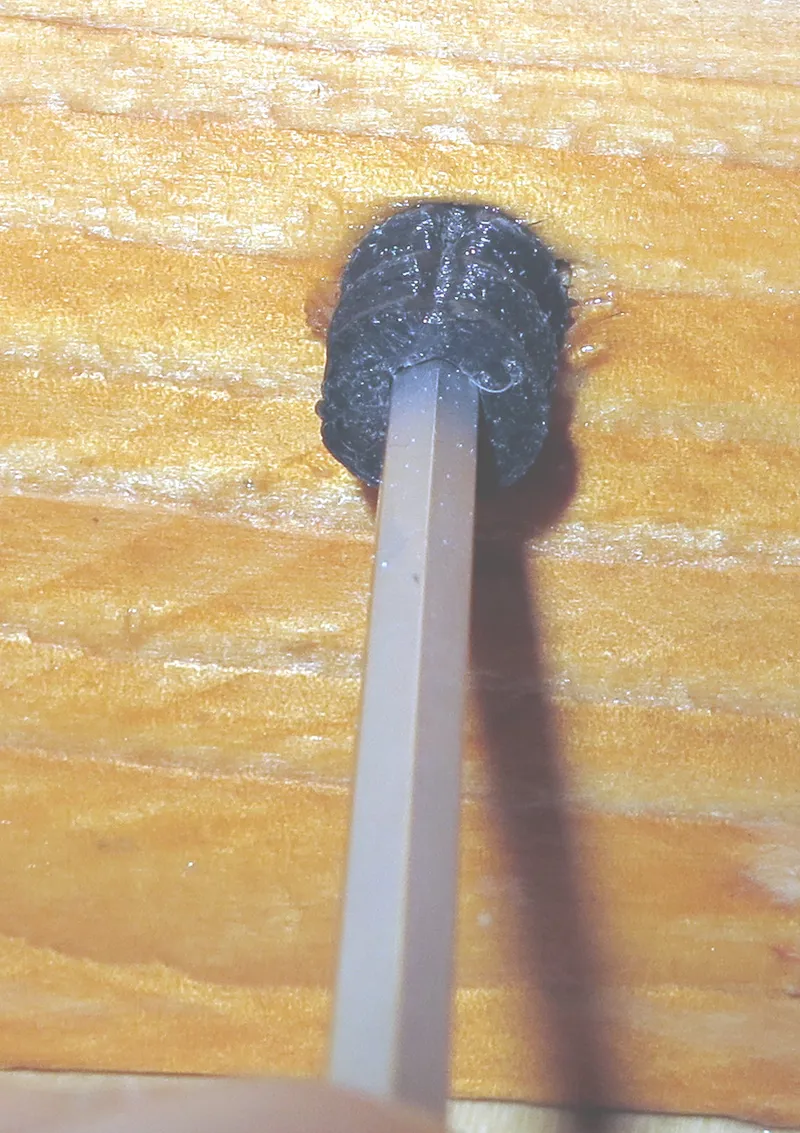

The hexagon pocket in the plug is needed to make placing the plug easier.

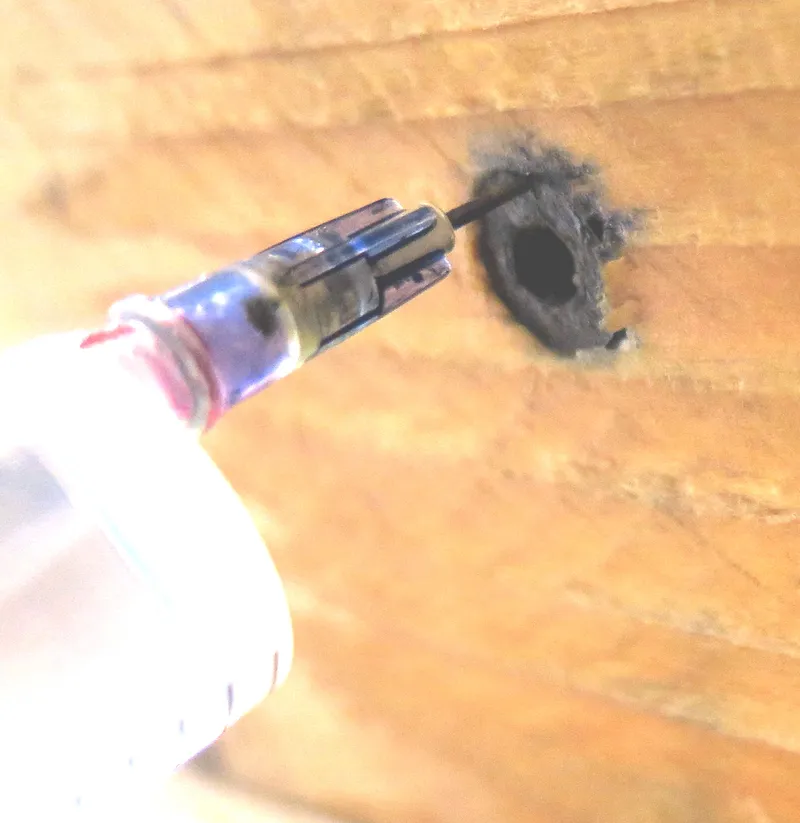

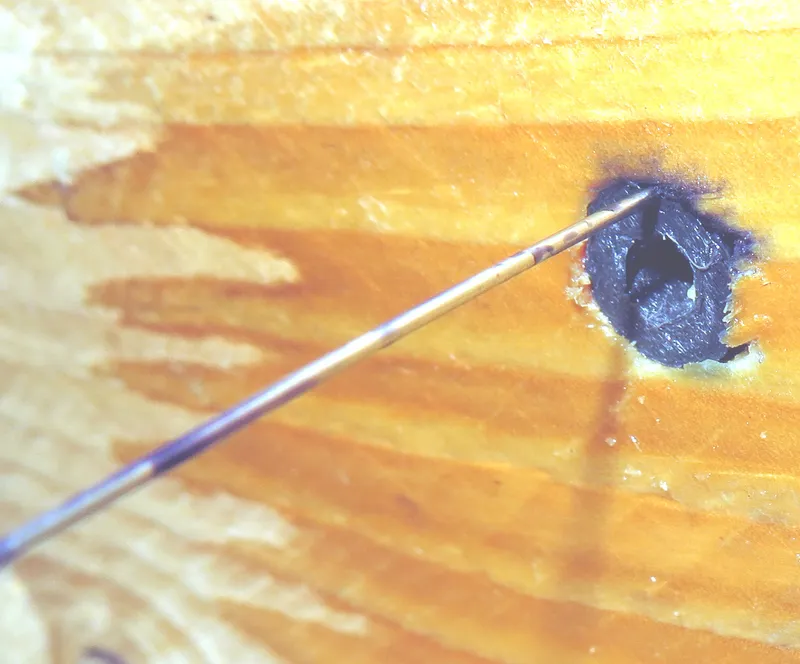

There is a small slot at the outer perimeter, so that a syringe needle can be fed through, once the plug is in place.

Using a syringe, the hole can be filled with liquid.




I printed with 4 perimeters and 5° higher temperature using Filatex Flex40.
