Prusa Mini+ Stacklight

About

In the industry, most machines have a stacklight so machine status is easily visible from afar. Let's do the same with a 3D-printer: This is a stacklight for the Prusa Mini+. It should be possible to adapt this to other 3D-printers.

Accompanying this project, I have also written a blog post with a bit more details about stack light usage in the industry: Stack Lights — blog.rahix.de

Details

The stacklight connects to the printer via the I2C bus on its expansion header (J23).  A small PCB is needed which houses an I2C port expander and some relays for the 24V stacklight signals.  All design files are included.

To control the stack light, M260 G-Codes are inserted into the print files which set the appropriate stacklight colors (needs firmware ≥6.1.2).  This has the advantage that no firmware modification is needed. However, there are some limitations: The stack light cannot be updated in certain abnormal situations as shown below.

Additional Parts

In addition to the printed parts, you will need:

Recommended Printing Parameters

Build Instructions

1 - Stacklight Controller PCB

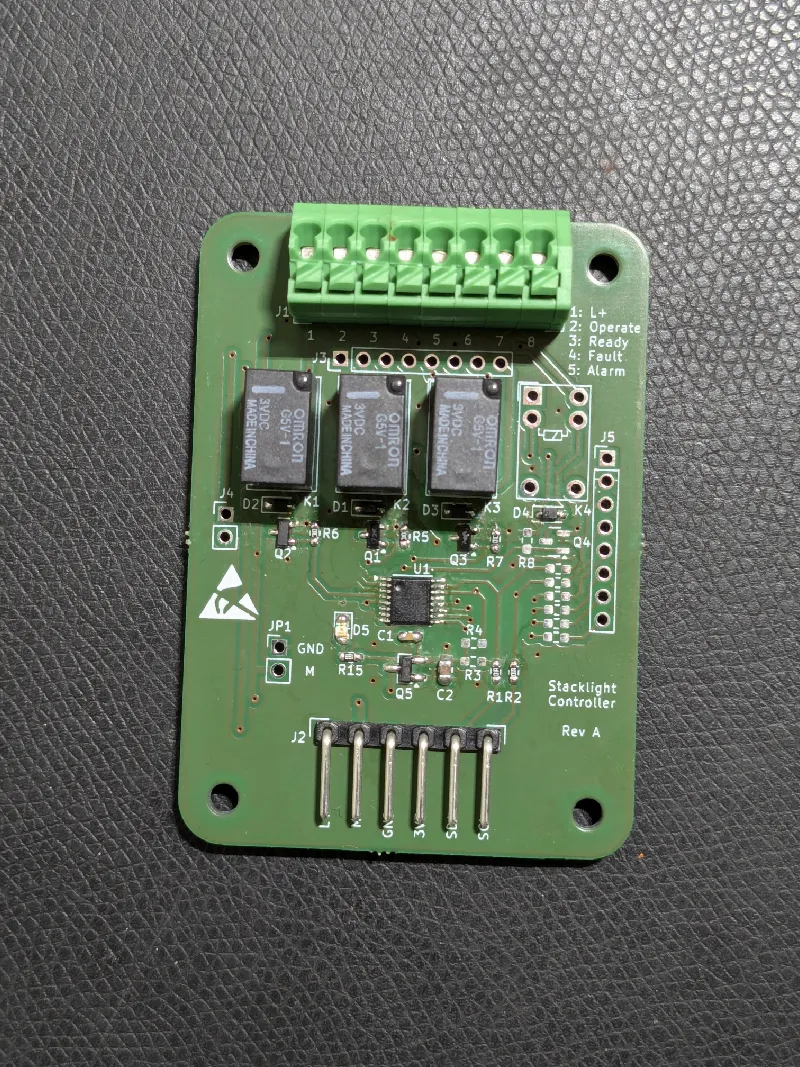

1. Check the included KiCAD project archive for the PCB and BOM.  There is also an iBOM (HTML) for easy assembly.
2. Don't be confused by the empty footprints on the right — these can be used for one more controllable 24V output, but are not needed for the standard stack light usage.

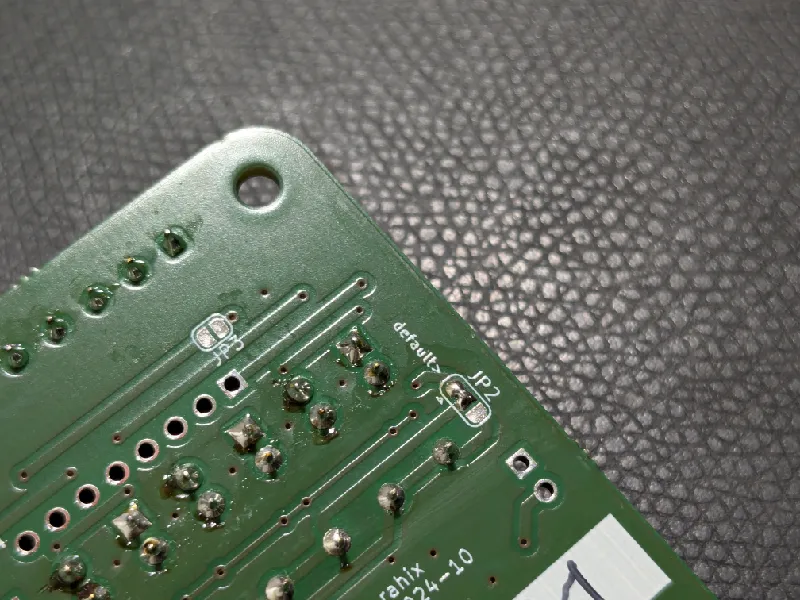

3. Make sure to close the three-way jumper on the back into the direction that's marked “default”.

2 - Installation

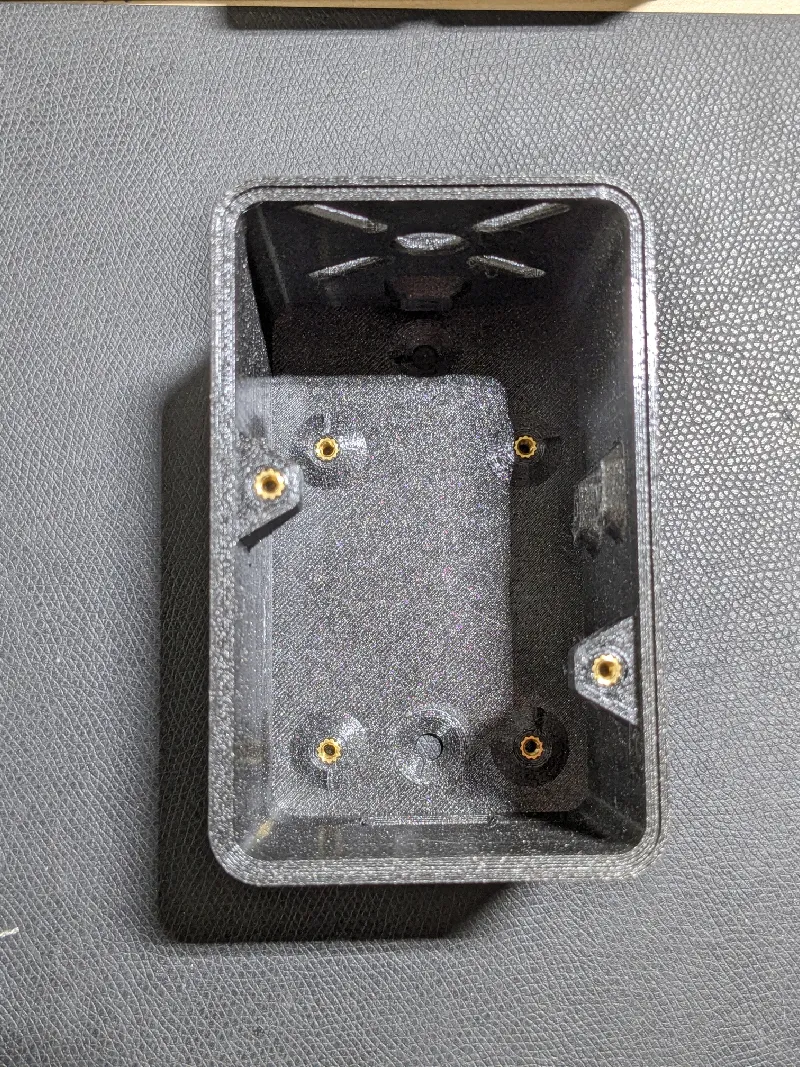

1. Install 6 M3 threaded inserts into the printed enclosure.  4 into the standoffs where the PCB is mounted and 2 into the appropriate holes for the lid.

2. Install the enclosure to the side of the Prusa Mini+ using 2x hammer nuts and 2x M5x8 countersunk screws.
3. Install the stacklight controller PCB into the enclosure with 4x M3x8 cylinderhead screws.
4. Attach the stacklight to the mounting hole pattern on the top, with 4x M5x16 screws and nuts.  The wires from the stacklight should enter the enclosure through the center hole.

3 - Wiring Harness

1. Terminate the stacklight wires to the top connector of the PCB (J1) as detailed in the wiring diagram.  You can use the ziptie mounts in the enclosure for wire management.

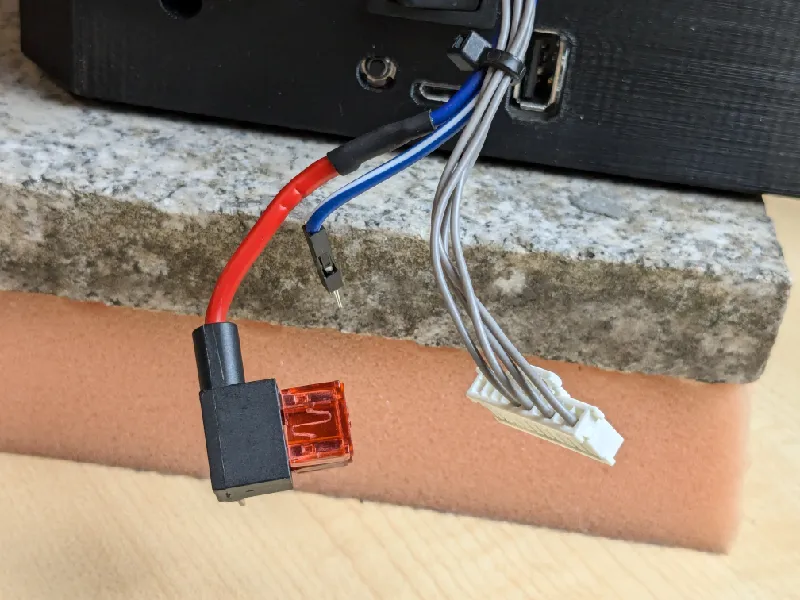

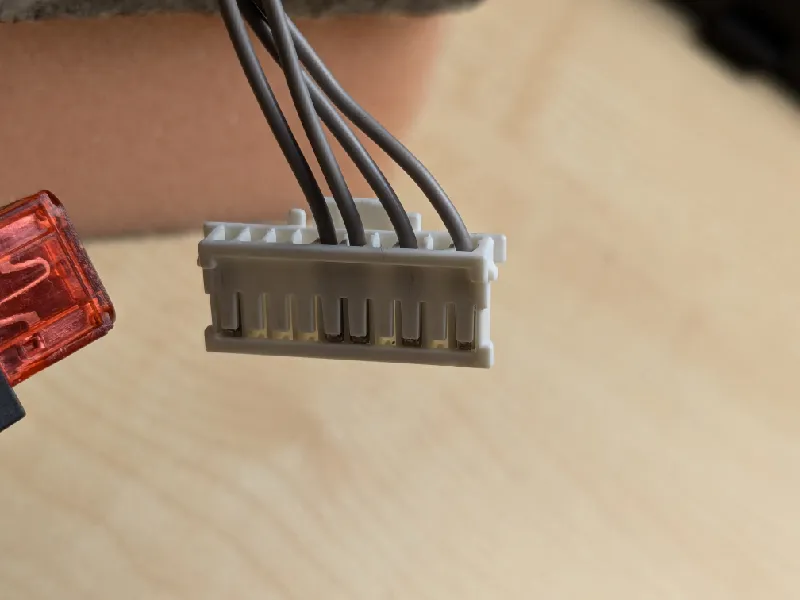

2. Prepare the printer-side wiring with the Molex connector for the expansion port, the add-on-circuit for the 24V and the dupont pin for the GND. On the stacklight controller side, the wires terminate in the WAGO picoMAX connector.  Check the wiring diagram for details.

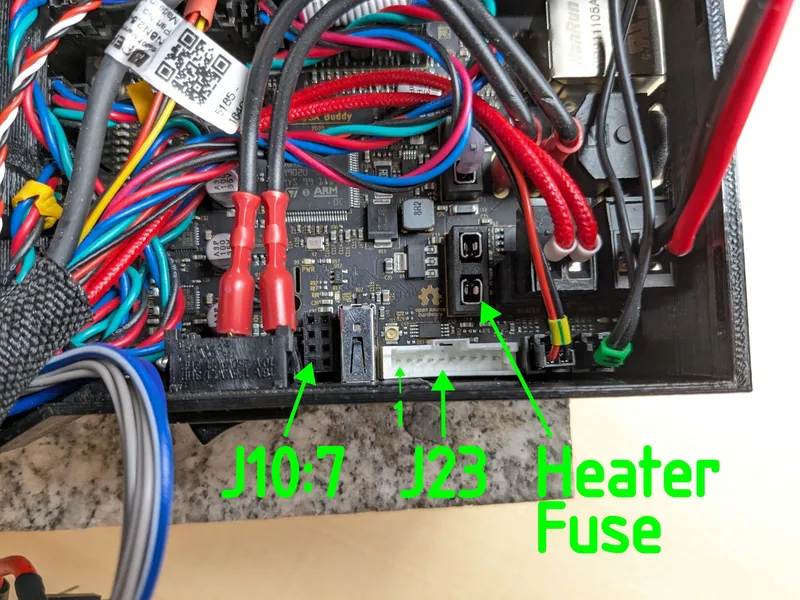

3. Plug the connectors into the appropriate locations on the Prusa Mini+ board. Again, check the wiring diagram. Pull the heater fuse and place it into the add-on circuit plug.    Here is an overview of the connector locations:

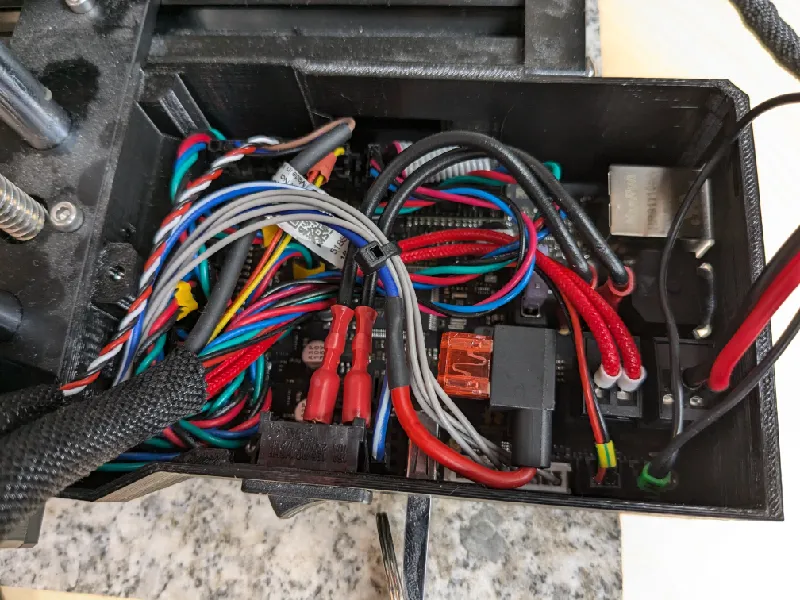

4. With all the wires in place, it looks like this:

5. Run the wires in the slot profile next to the existing stepper wires. Plug the picoMAX connector into the stacklight controller.


4 - Configuration

You are now ready to turn on the system.  You will need to modify your printer profile a bit so the g-codes to control the stacklight are emitted.  Here are the lines that need to be added (and some of the context lines that are there by default):

Start G-Code

G90 ; use absolute coordinates
M83 ; extruder relative mode

; Stack Light Init
M260 A32
M260 B1 ; Output Register
M260 B1 ; Fault Off
M260 S
M260 B3 ; Configuration Register
M260 B0 ; All outputs
M260 S

M104 S170 ; set extruder temp for bed leveling
M140 S[first_layer_bed_temperature] ; set bed temp

End G-Code

G4 ; wait

M104 S0 ; turn off temperature

M190 R50 ; Wait for cooldown to a touchable temperature
; Stack Light Color Change
M260 A32
M260 B1 ; Output Register
M260 B3 ; Fault Off & Ready
M260 S

M140 S0 ; turn off heatbed

Color Change G-Code

; Stack Light Color Change
M260 A32
M260 B1 ; Output Register
M260 B3 ; Fault Off & Ready
M260 S

M600

; Stack Light Color Change
M260 A32
M260 B1 ; Output Register
M260 B1 ; Fault Off & Operate
M260 S

Pause Print G-Code

; Stack Light Color Change
M260 A32
M260 B1 ; Output Register
M260 B3 ; Fault Off & Ready
M260 S

M601

; Stack Light Color Change
M260 A32
M260 B1 ; Output Register
M260 B1 ; Fault Off & Operate
M260 S
