All my Rat Rig V-Minion 1.1 Mods

Hi all
here are all my mods for V-Minion 1.1 (this is NOT mods from 1.0 to 1.1 )
original files are found here V-Minion 1.1 Alpha - Rat Rig Lab
these mods are from the 1.1 since i have had it for a while (helped develop it)

i don't have time to post all at once. so keep looking in here for more mods
it will be an ongoing process for me to post all of them
i will either have the files in here or a link to the mods elsewhere :-)
since some of them have been posted before the release of 1.1


-------------------------------------------------------------------------------------------------------------
Oct 17. 2024 uploaded mod 1-4
Oct 19. 2024 uploaded mod 5-13
Oct 20. 2024 uploaded mod 14
Oct 22. 2024 uploaded mod 15
Oct 26. 2024 updated mod 2 (sensorless RR toolhead)
                        added top parts to Mod 8
                        uploaded mod 16
Dec 31. 2025 Mod #16 issue with hole is fixed
Feb 15. 2025 Mod 17 added (unintentionally saved 2 different Mod #7)
                        added side rail option to Mod #6
                        added Dj top design to Mod #9

-------------------------------------------------------------------------------------------------------------

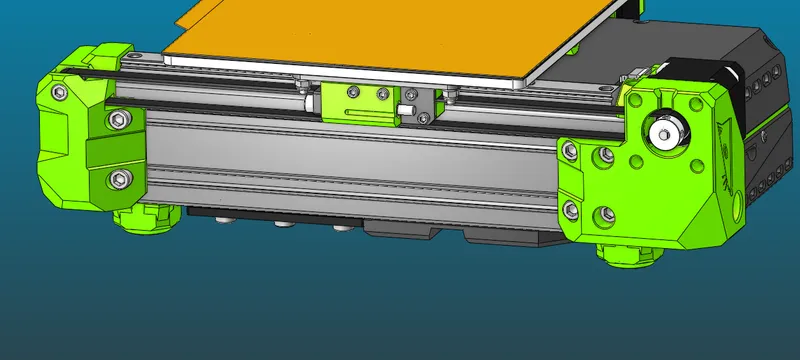

Mod #1  Y-motor mount
reinforced Y motor mount
with aesthetics similar to the front part
easier to print

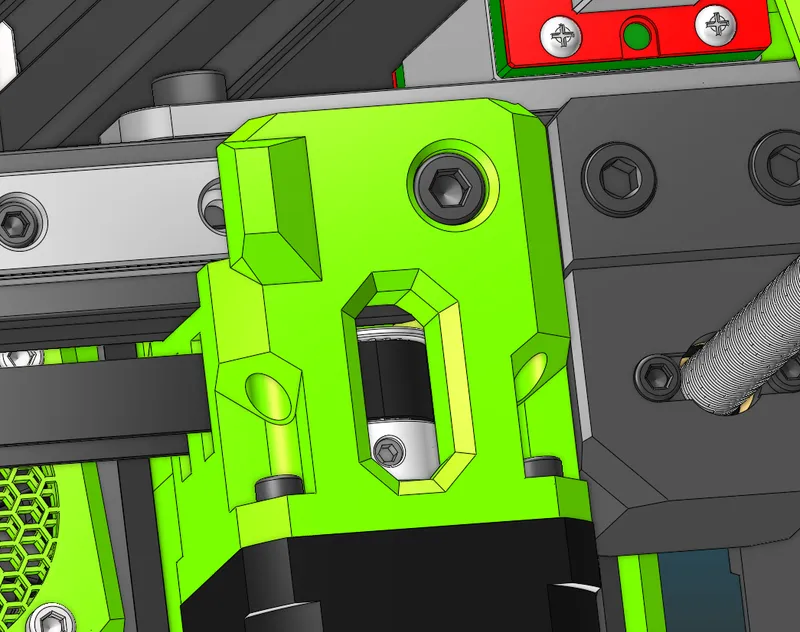

Mod #2  X-Motor mount
changed opening so you see the full pulley (for belt alignment )
now with heat insert (pull it in with a long M3 and heat the end of insert)
and one for sensor less homing

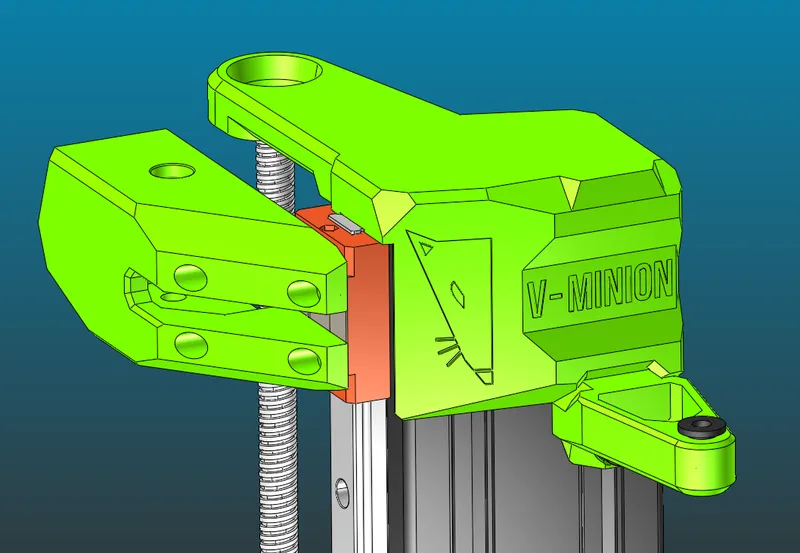

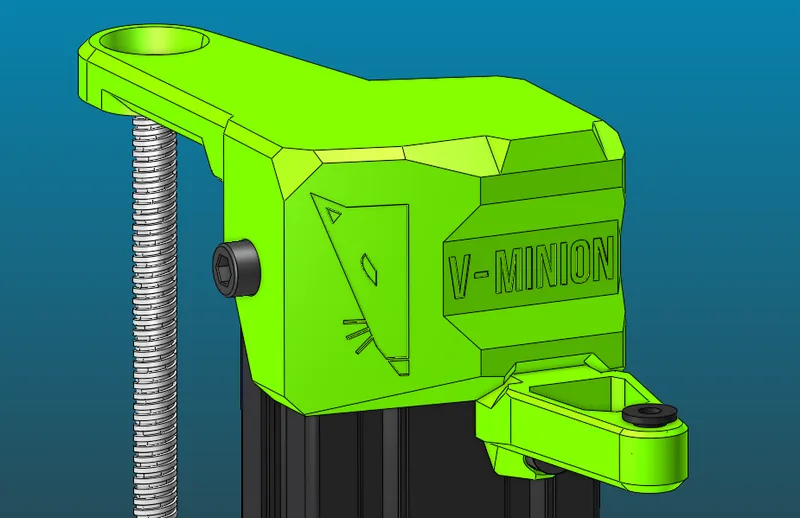

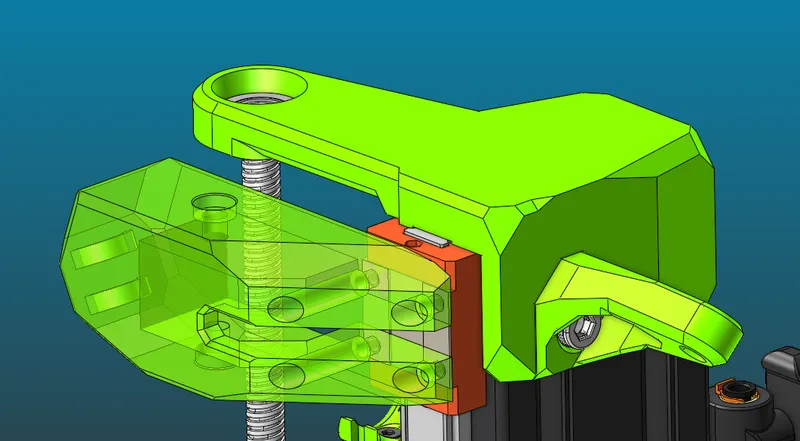

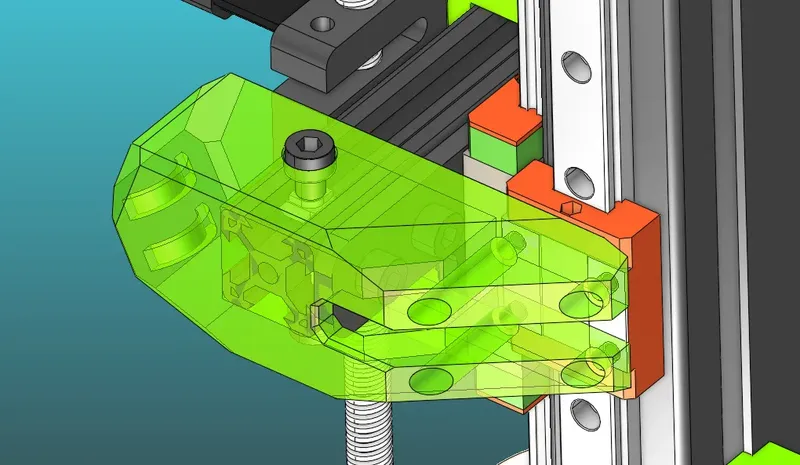

Mod #3 X-endcap
made it beefy with counterbore M3 holes
angled the cable further away from leadscrew

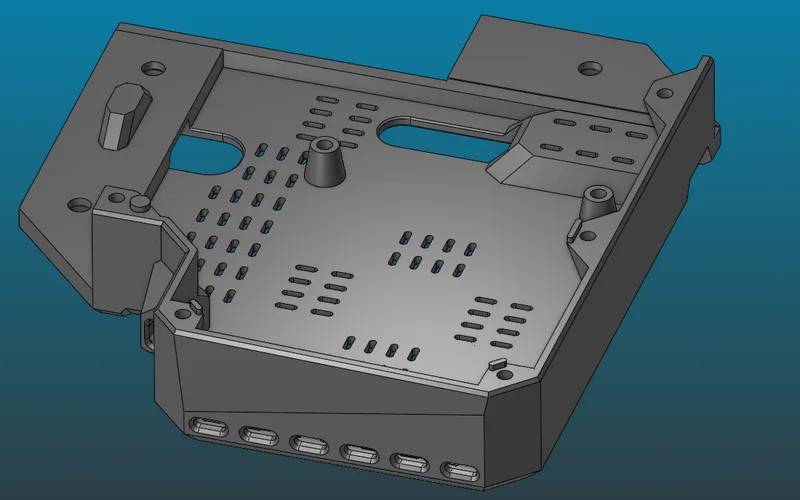

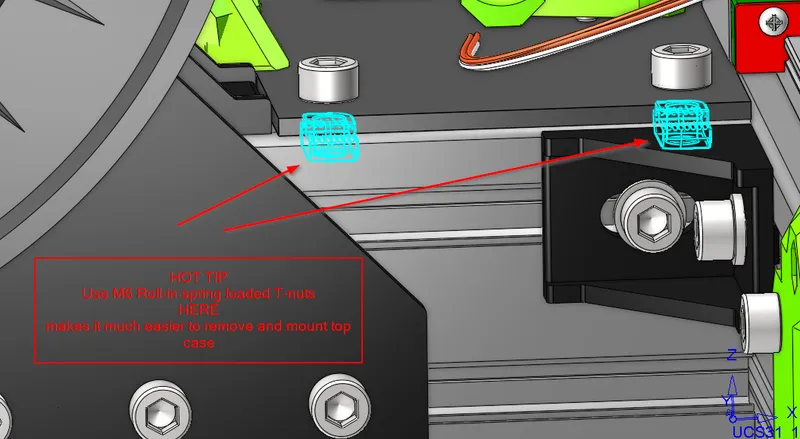

Mod #4 Electronic case
made it with heat inserts
chamfered cable inlets
made one without SD
fixed error in the top part (M3 holes changed from 4.25 to 3.5)

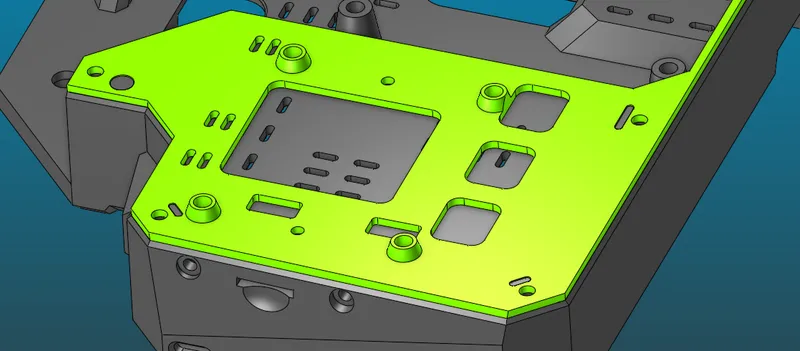

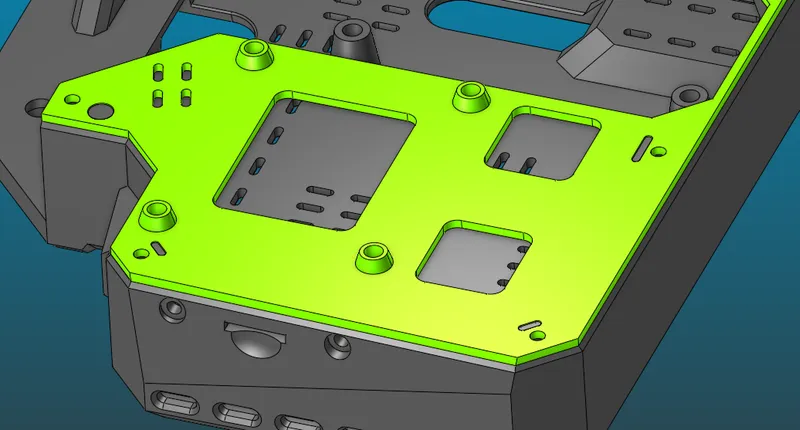

pi plate with inserts
alternative pi plate that i have in my printer

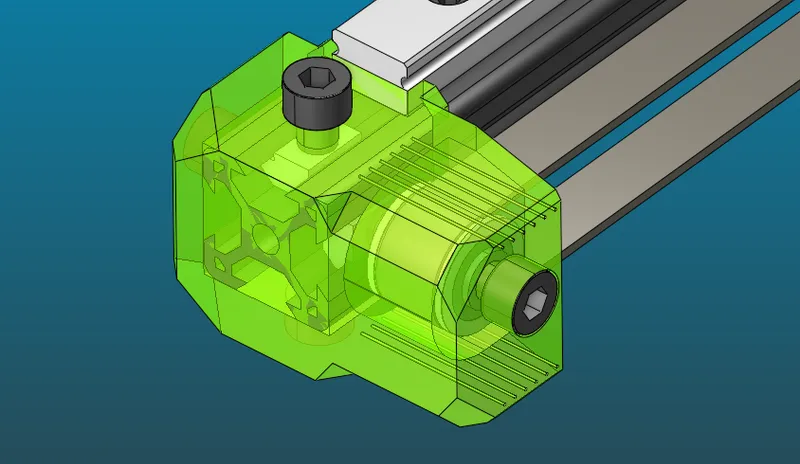

Mod #5 X-idler mount
use this if you wan't EVA 3 on your VM1.1
BOM:
3pcs M5x10
1pcs M5x25
4pcs M5 square t-nuts
2pcs D8-D5.3x1 shims
1pcs RR idler for 9mm belt

MOD #6 My Top design
this is the one i have on my printer
and yes i will do one for the parallel mod as well ;-)

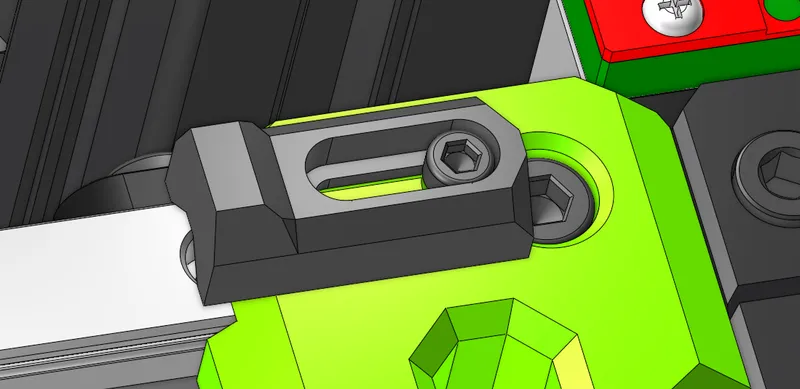

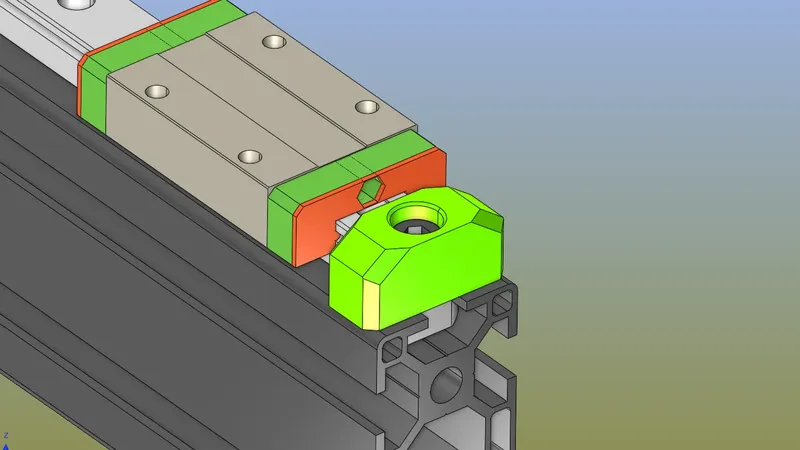

MOD #7  Stop block for sensor less homing
BOM:
M5x12 and M5 t-nut

https://www.printables.com/model/382766-stop-block-for-sensorless-homing-3030

MOD #8 Dual rail (the cheap solution)
added files in her for the top part :-)
the rest can be found on this link
https://www.printables.com/model/956956-dual-rail-mod-for-rat-rig-v-minion

MOD #9 Dual rail
this is highly recommended

https://www.printables.com/model/1041029-v-minion-dual-rail-mod


MOD #10 USB camera mount
this is for V1 camera (are working on a model for V2)

https://www.printables.com/model/608858-3do-usb-camera-mount-for-ratrig-v-minion

MOD #11 Nozzle camera
this one fits the EVA UHF ( and i'm working on the RR toolhead )
this doesn't fit the RR yet

https://www.printables.com/model/922752-3do-nozzle-cam-v2-setup-for-ratrig-toolhead-vc4-vc

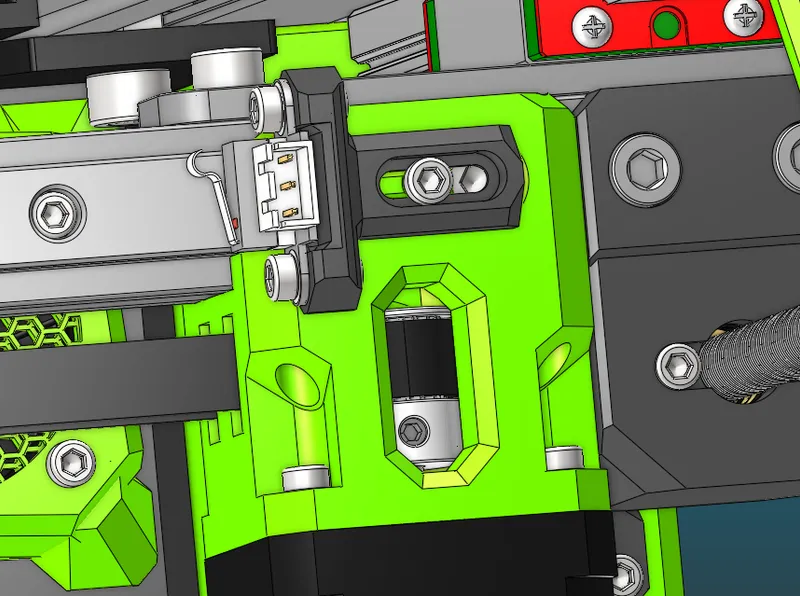

MOD #12 Flat x-endstop
the original with heat inserts
and a flat one for EVA Toolhead

MOD #13 Bed shape files (prusa slicer)
Texture (svg) and Model (stl)
bed texture is under other files

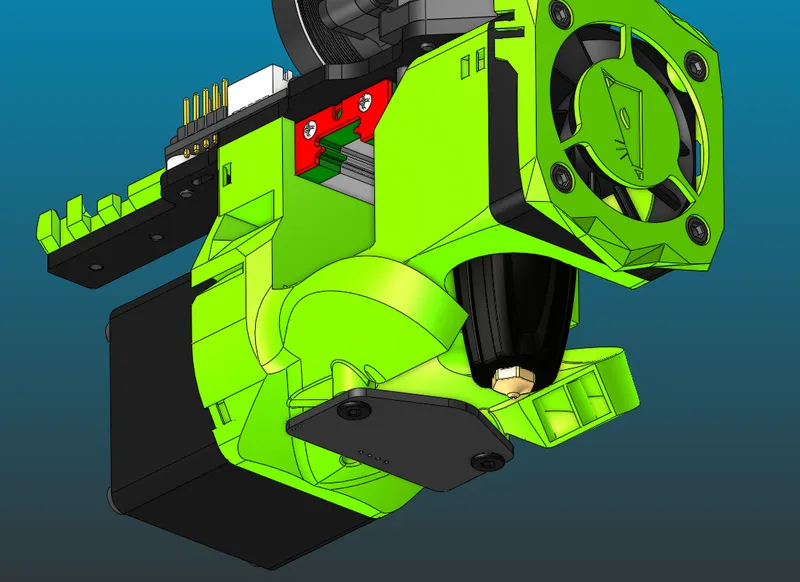

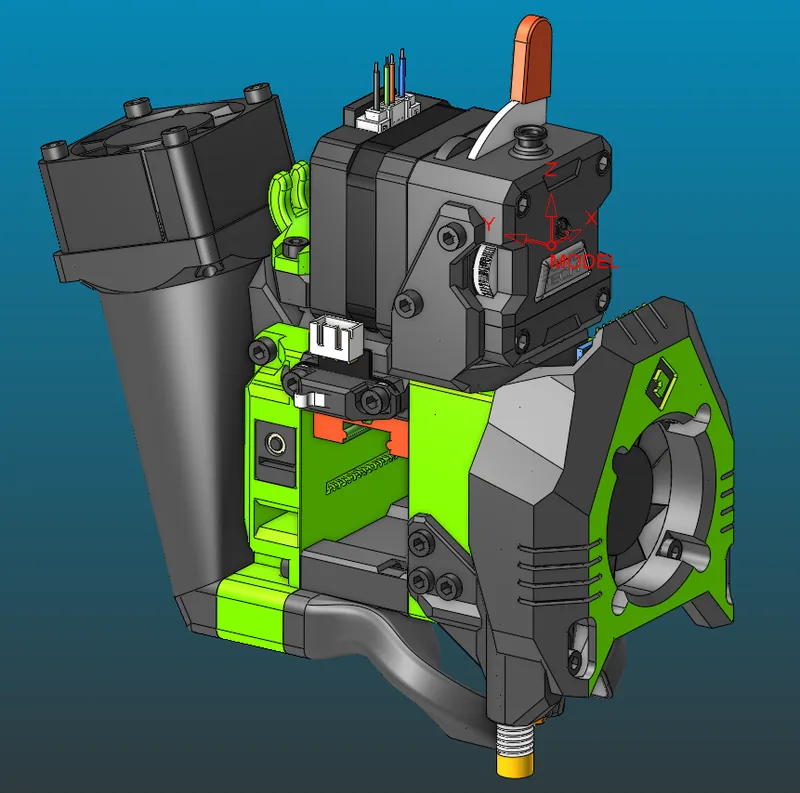

MOD #14 RR Toolhead
made one with Beacon (removed the probe mount)
you have to solder the wires directly to the beacon board
this is an untested model (please report back if it's okay)

in the pipeline i have one with LGX mount

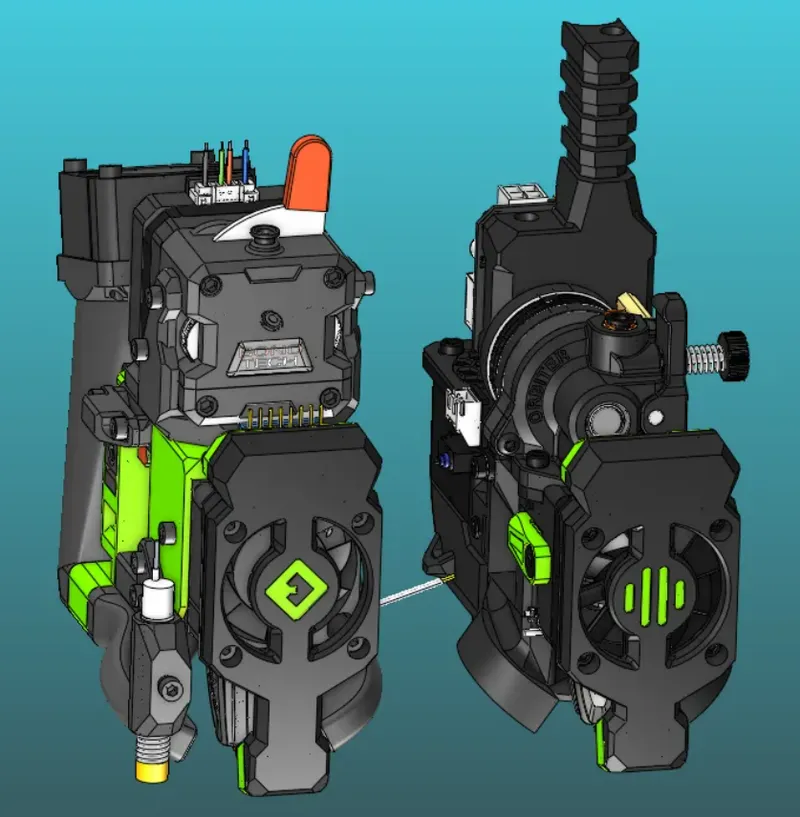

MOD #15 EVA 3 toolhead
made some adjustments :-)
https://www.printables.com/model/1048295-eva-3-toolhead-made-for-v-minion-11

MOD #16 ADXL mount RR toolhead
use this if you have the shorter toolplate that are meant to be used without toolboard
BOM: 1pcs ADXL345
           2pcs M3 heat inserts (short)
           2pcs M3x6 cap-head screws

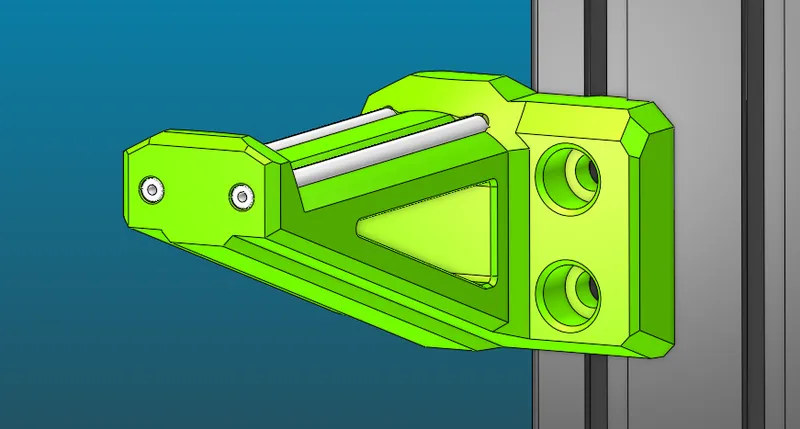

MOD #17 Spool holder

https://www.printables.com/model/548546-v-minion-spool-holder-front-mounted
