Ubiquiti Unifi USW-Lite-8 PoE 19-inch Modular Rack Mount

A modular, 2-part, 19-inch rack mount for the Ubiquiti Unifi USW-Lite-8 PoE.

This mount is part of a 19-inch modular rack mount system I designed, you can mix and match the modules with other mounts. Take a look at my models here to find out the other 19-inch mount modules.

Parts

• 3x M5 screws (Min size: 12mm, recommended size: 16mm).
• 3x M5 hex nuts.

Assembly

OBS.: The modules used in this tutorial are only for illustration purposes, and I'm using it for the whole series. It might not reflect the models you download at this page.

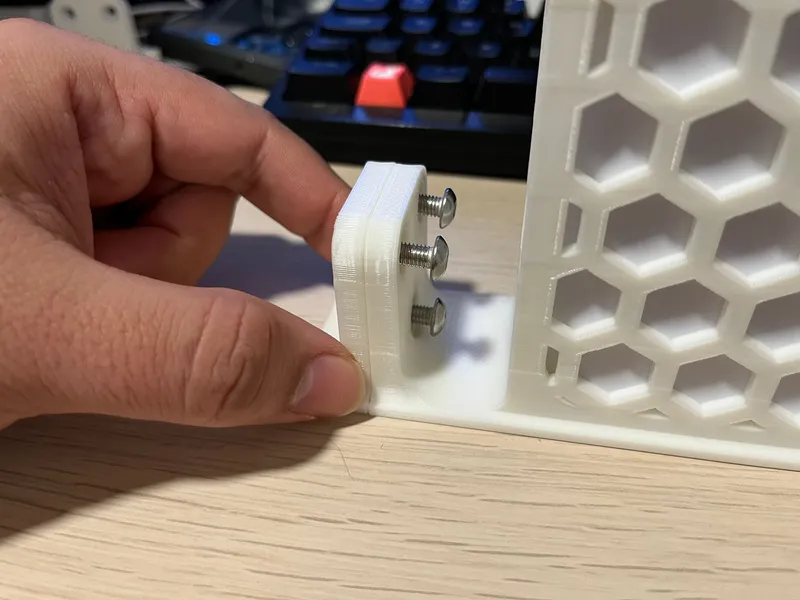

• To assemble the parts, insert the 3 screws into the Right module.

• Then align it with the Left module.

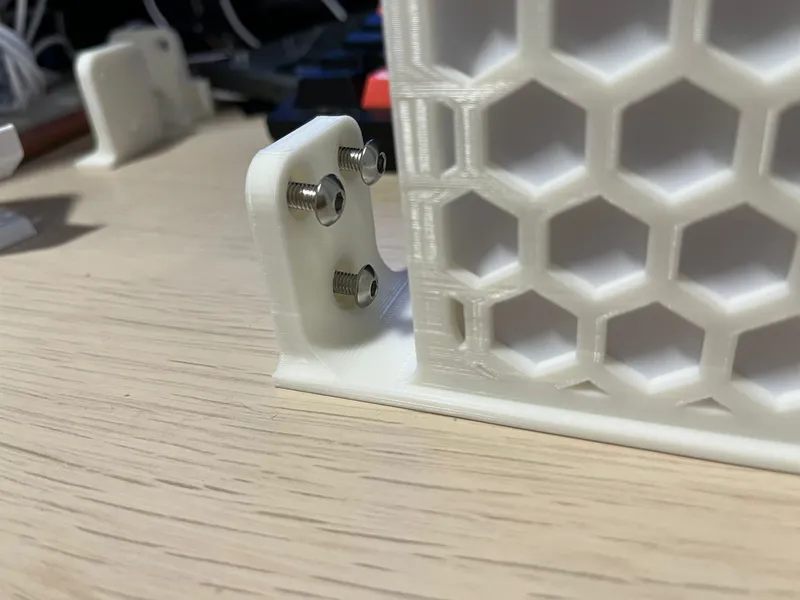

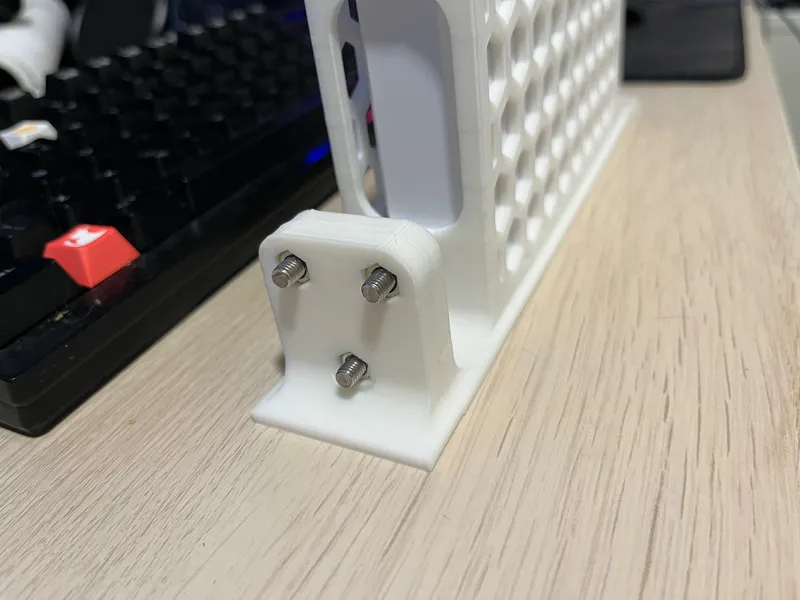

• After that, insert the hex nuts in the screws, and using a screwdriver or Allen key.

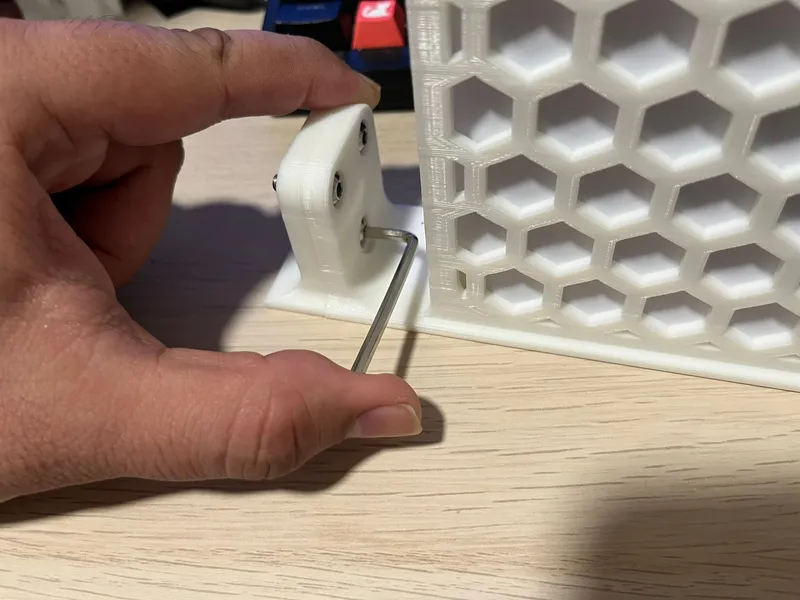

• Tighten the screws until you start feeling resistance and the nuts are securely into place. After that, you can install the mount in your rack.

Installing the switch

To install your switch to this mount, simply slide it in. But once you reach the rubber feet on the bottom, press the a little so they can compress and enter the mount, after that the switch should slide and will stay securely in place.

Do you like my models? Consider buying me a coffee ;)

Print Settings

Printer Brand:

Anycubic

Printer:

Custom Mega X

Rafts:

Doesn't Matter.

Supports:

No.

Resolution:

0.2 or 0.24

Infill:

20% or more

Filament:

PLA+/PETG/ABS/ASA/Nylon
