Clamp/ Print In Place ²

Update 4/25/2025

_______________________

Based on feedbacks, the following changes were made:

• Chamfer was added to help reduce the chance of the base layers fusing together.

       This model still requires a printer capable of maintaining a 0.15mm tolerance and    achieving good adhesion for small features. Enlarging the model would easily solve these problems.

Additional changes:

• An STL file has been added. At the time of this update, most slicers handle STL files better.

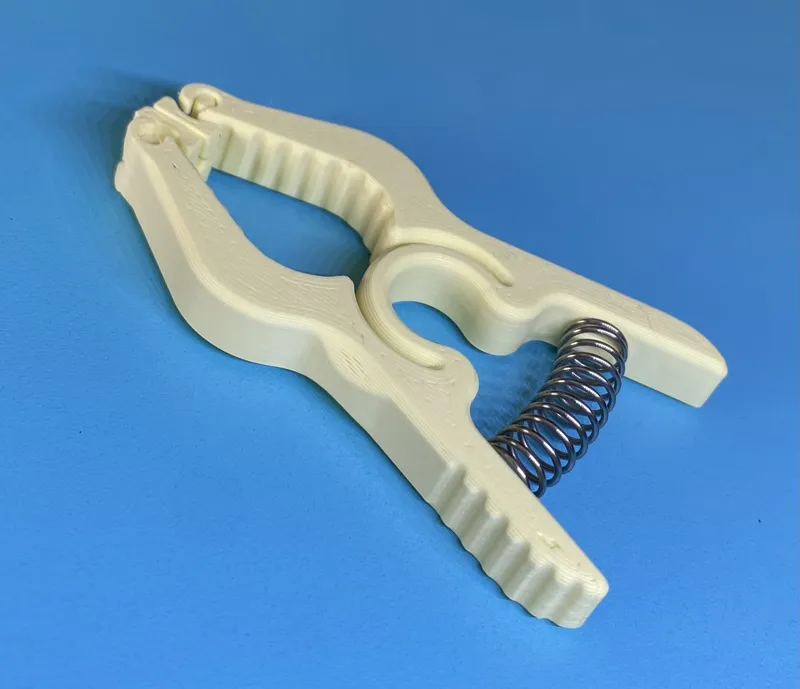

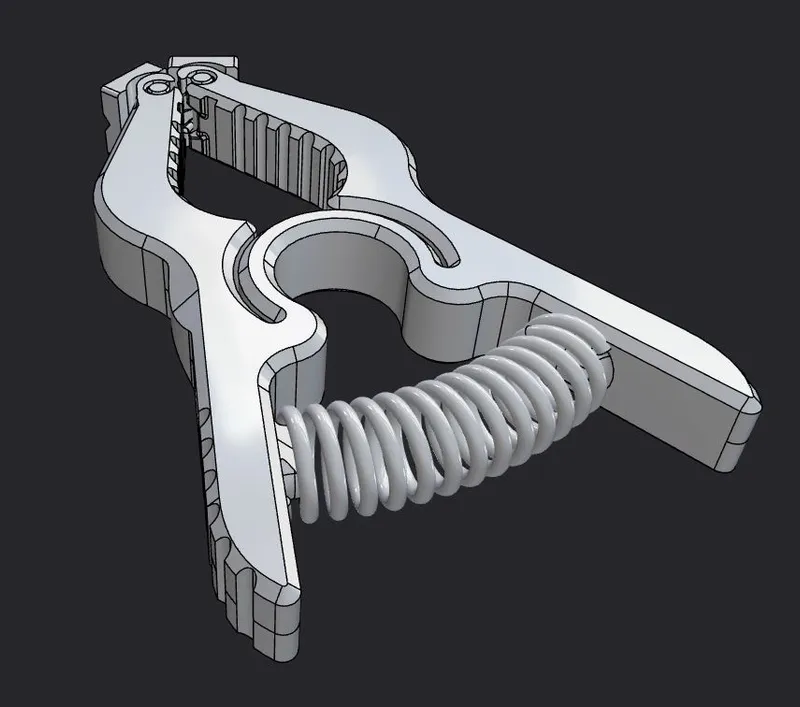

• Borrowed optional spring design from another remix, using 7mm ID 25mm spring.

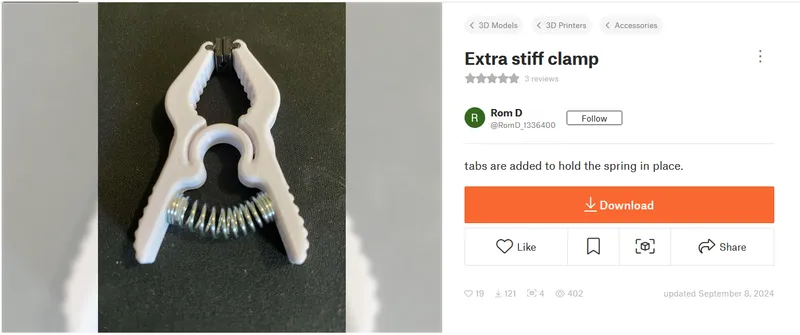

https://www.printables.com/model/1000432-extra-stiff-clamp

_______________________________________________________

clamp print in place ² everything print in place!

good first layer adhesion, and ability to print at least 0.15mm tolerance might be needed here

 (for the original size)

whole thing print in place now rather than split to 2 print
