Cable Management Trays EcoSystem

                                                           Cable Management EcoSystem

                                                Convert your environment into Factorio!


Simple Clip to hold cables

                                                              +6 diffrent styles of Trays!



And few more in files ^^


                                                           Simple mounting way!

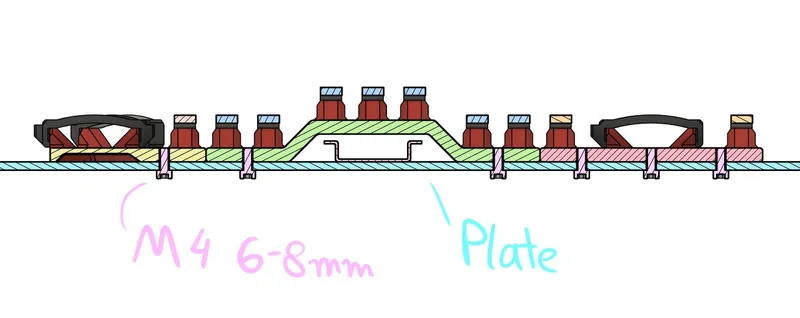

•    Normal Head Cap Screw

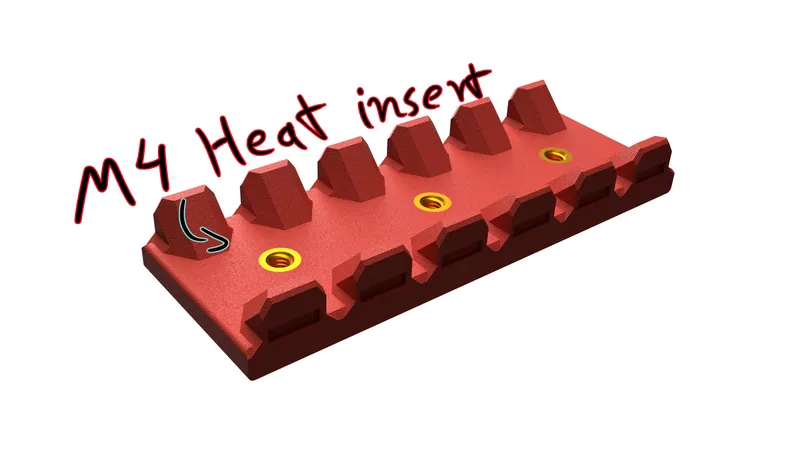

•   M4 Heat Insert (4-5mm)

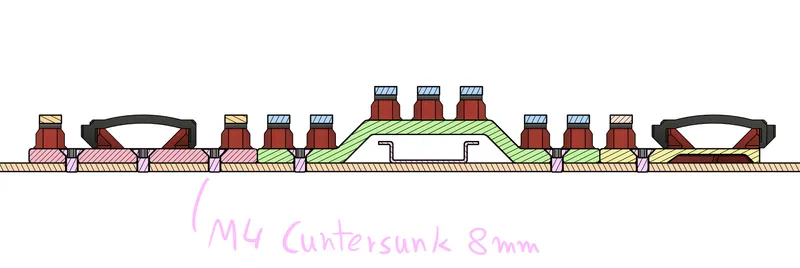

•   Countersunk Head Screw option

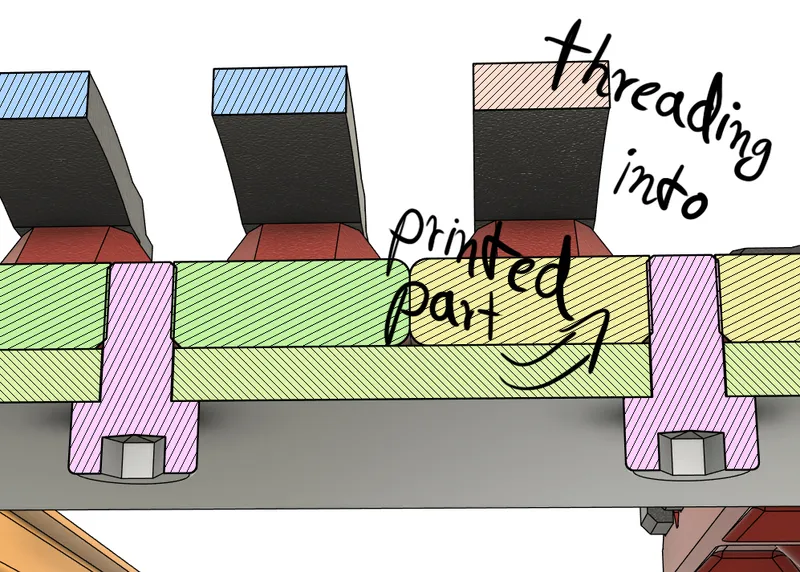

Nut Can be Used!
The screw have to be longer, to catch the nut :D

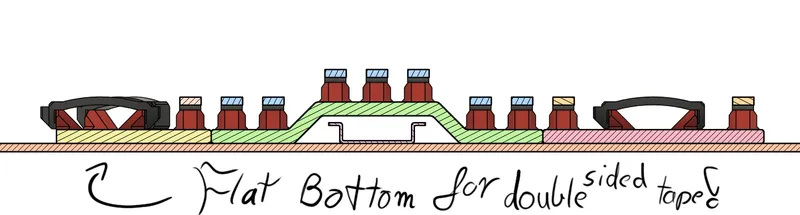

• or simple Double Sided Tape

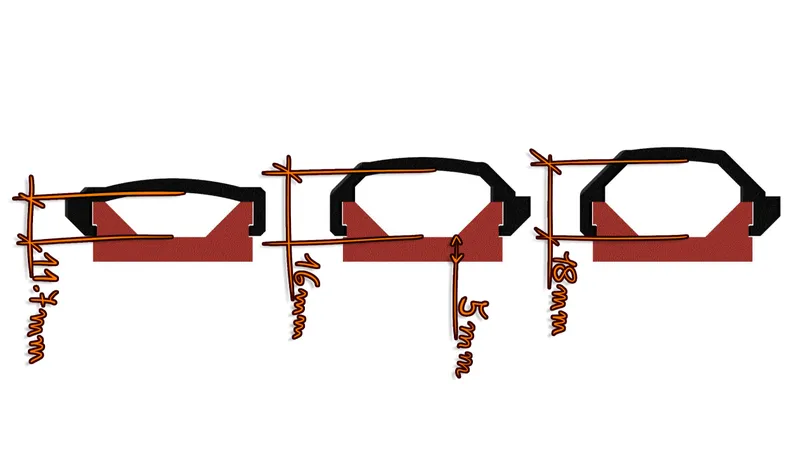

                                                                       3 Sizes of Wire Clip

All Step files are free to use (they are in ZIP file), for customization, remixing for yourself :D
Enjoy !






Ready print Profiles for Bambu Printers on MakerWorld, link Below:

https://makerworld.com/en/models/674274#profileId-602286



       --- Commercial Use ---

If you want selling the prints, you can buy lifetime sale option by buying the project on Cults, link Below:
https://cults3d.com/en/3d-model/gadget/cable-management-trays-ecosystem

Consider SUPPORT MY WORK downloading the models from MakerWorld
This costs nothing, just little bit of time
https://makerworld.com/en/@Drak

There is also a option of Boosting the model On Makerworld, it gives me points as a revand :D

Every download counts!
I appreciate any help <3

Technical Data



Changelog (day/month/year):

1.10.2024 - Flat Bottom Versions Added after suggestion of .yell. member from Cartographer Discord Server

:3

20.10.2024 - Taller Wire Clip Versions have been Added after feedback of MakerMylo on Makes

20.10.2024 - Longer Straight Trays and one Shorter have been Added after feedback of Snehulak on Makes

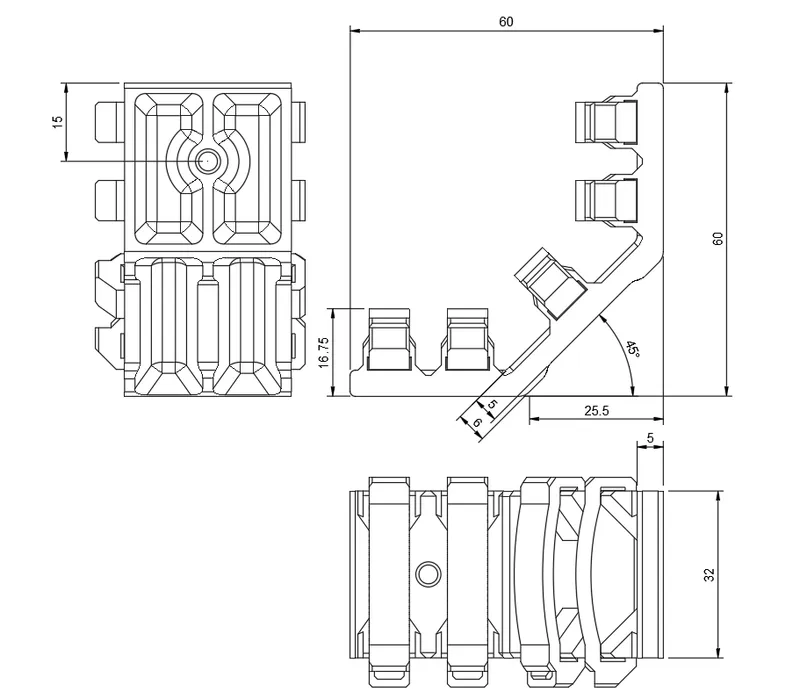

24.10.2024 - L Shape Tray have been Added after suggestion of markant on Makes to design that shape, used to for example run cables from the floor to the wall of an enclosure


30.10.2024 - 240mm Version Of Straight Tray have been Added after feedback of Patrik Müller on Makes
