Tiny Whoop Drone Racing Gate (fully printable, parametric)

Print your own Tiny Whoop Gates! I hope this serves you well and feel free to give me any feedback or ideas for improvements. Have fun!

Main loop

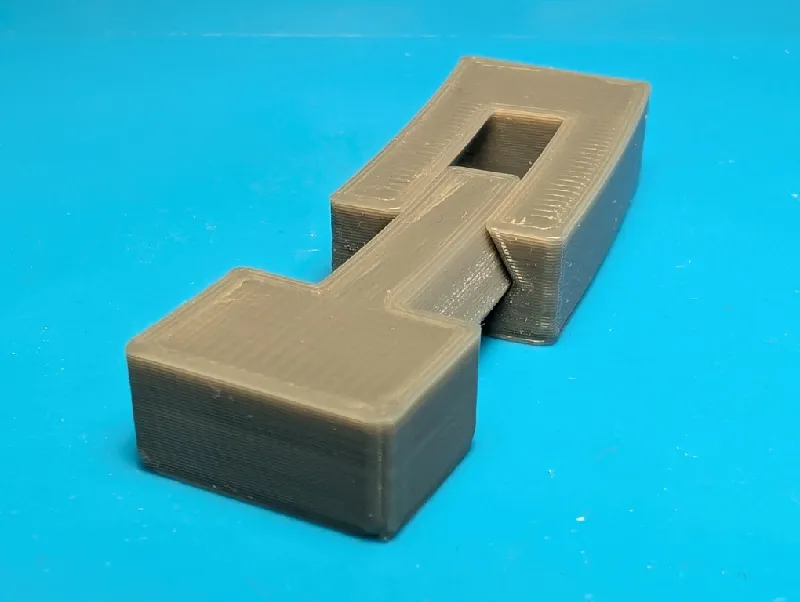

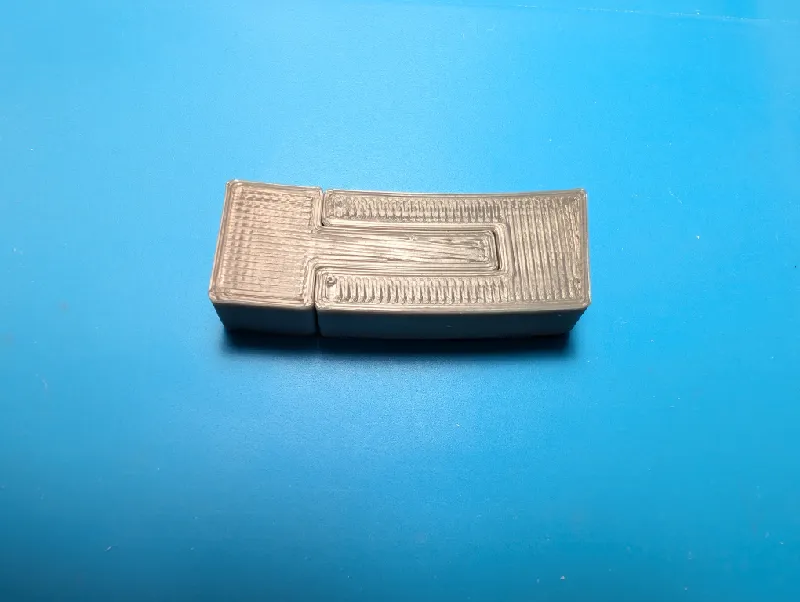

This split into several parts (e.g. 4 or 6). These are just stuck together and hold well. Just keep in mind that this is designed without tolerance so the print should be cleaned if necessary. A bit of resitance is okay, but the end of the female parts should not bend away. You can test the fit with the attached test-print that looks like this:

Base

The base comes in two versions, optimized for 23x23 cm or 20x20 cm build plates.

The loop is pressed into the base and will stay in its place (no tolerance!), so make sure to clean the surfaces between the parts.

Parametric adjustments

You can adjust parameters in Fusio360:

• Dimensions of the loop
• Height/Length of the base
• Number of parts in which the loop is split
• Length of the loop connection

Credit

This model is based on Racing micro drone gate by Julezzz. The dimensions of the uploaded files are the same, making them compatible with each other.

replace the loop part connection by a more stable one and made a new base that is connectable to the loop without further tools or parts needed.
