Nevermore Owl - Servo controlled Air Dampener

this remix contains a servo controlled air dampener as well as the eletronics from the stealthmax (2x environmental sensors,2x VOC sensors).

the dampeners each use 2x 625-2RS Ball Bearings:
(what i got: https://www.amazon.com/dp/B0BRQP2QG7)

I have made 3 versions of the pinion gear for the servo, you need to choose the one that fits the best. (im using the medium one.)

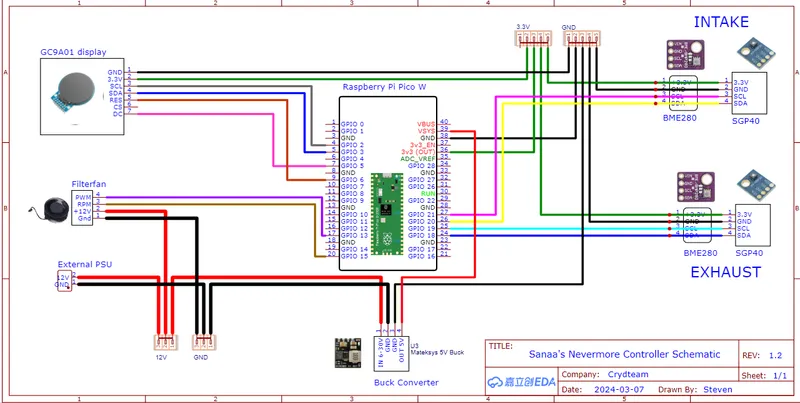

Wiring diagram:  (Servo hasnt been added yet but it is a work in progress-9/29/24 )

Firmware:
https://github.com/SanaaHamel/nevermore-controller


Suggested Filament & Print Settings:

• ABS/ASA or other heat-tolerant material that will put up with the repeated heat exposures from a heated bed and chamber without warping. Nevermore Mini was prototyped in ABS+.
• Supports? No. The few places where supports are necessary, theyre part of the STLs/3mfs.
• 0.2mm layer height and 0.2mm bottom layer height (needed for slicer to interpret built in tolerances (wagos, supports, etc) correctly.
• 4 walls, 15-20% infill.

Bill Of Materials:

Assumes 2-wire fan to 2-pin microfit connector, no electronics, mounted to an aluminium extrusion (1515, 2020, or 3030) with t-nuts.
