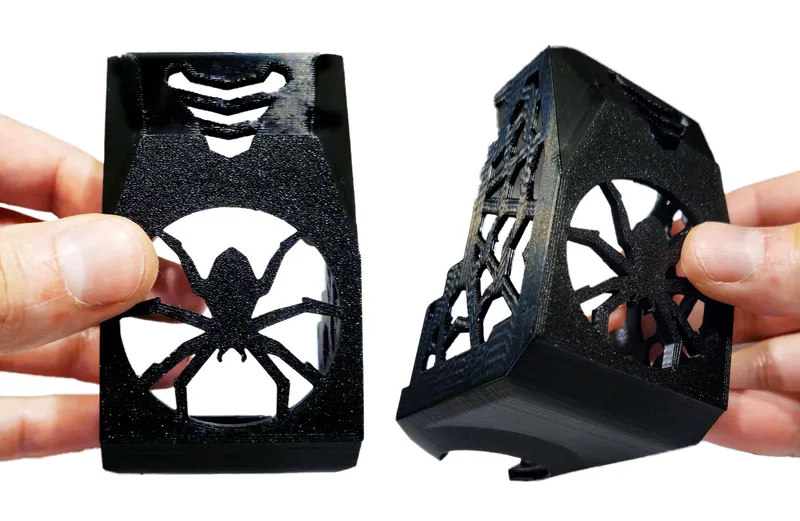

Spider fan shroud for stock Creality K1 series fan

Improve your cooling for free based on the popular Booty Burner!

Improve vision with integrated nozzle LEDs

Can be printed without the part cooler fan installed (if you broke your original)

Alternatively you can get it printed in high quality nylon here

Fits K1 / K1C / K1SE / K1MAX toolhead with the factory part cooler fan.

Concentrated airflow at better angles to improve overhangs.

Clearance at the bottom which has the following benefits:

• Compatible with Creality AI Lidar
• Compatible with Purcell Advanced Nozzle Wiper
• Compatible with Purcell Cartographer Probe Mounts
• Compatible with many LED lights
• Improved nozzle and print visibility

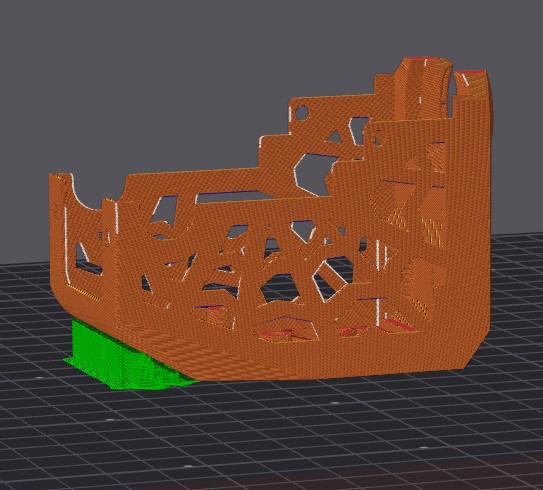

Print face down using ASA, ABS, PA, PC or better to resist the heat (NO PLA/PETG). If you have trouble printing high temp filaments, you can use this online service to print it for you in a high quality filament like PA12-HP Nylon. Support settings: Snug, 30 degree threshold angle, on build plate only

Optional sliding LED / wire tuck shroud to hold and protect nozzle LEDs and wiring from blobs and failed prints and direct the light at the nozzle without blinding the camera. Interchangeable options for different lighting. You can optionally glue it or not use one at all (there is a little recess for glue on the back of the sliders)

If you would like to contribute towards the development of new K1 series mods and designs you can do so here https://ko-fi.com/dfbpurcell

Cool spider theme

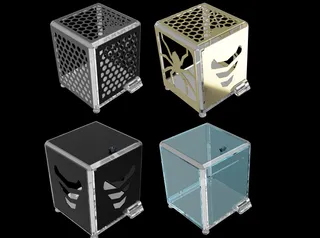

Interchangeable sliding LED shrouds

More concentrated airflow

No Knomi support
