Omega Boomerang in Blender and Sverchok

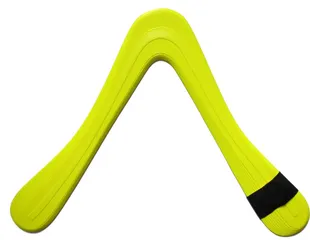

This omega boomerang is pretty similar to some of my previous designs. It was made differently, though – it uses the fantastic Sverchok plugin, which enables parametric modeling in Blender.

Throw low and with a bit of layover. Should do a nice, low mid-range circle.

How I Designed This

Draw two Bezier curves in blender.

Draw two bezier curves that define the overall outline of the boomerang, as well as the outline at the top surface of the boomerang. This also defines the shape of our airfoils.

Import these into Sverchok, and translated them upwards a little.

Create a new Sverchok node graph and import the Bezier curves. We need three curves in total: the original outline, the original outline translated upwards about 1 mm, and the inner line translated upwards about 4 mm. The nodes on the left are just for convenience, so that we can specify those two measurements in scalar values as millimeters (and not as vectors in meters).

This is what the three curves will look like; here is a view of the lead arm tip. The two outlines define the trailing edge thickness, and the top outline defines the airfoil shape.

This is where the magic happens. We evaluate the three curves, which yields a grid of points along the three outlines. We join these up using a UV Connection node. Before that, we chop off one point of each curve, otherwise we will end up with double vertices at the seam, which irritates our slicer software when printing.

This is our result after the UV Connection node.

The mesh looks good, but the top and bottom surfaces are inside out. We fix that with a Recalc Normals node.

Our final step is to bevel the top surface, yielding a nice leading edge. To do that, we select the top surface by its surface normal, get an edge mask from that, and bevel those edges.

This is our final result after beveling.
