Next Level Racing - GT Lite / GT Lite Pro - Reinforcement

EDIT 18.11.24

Multi-Angle Baseplate Stabilizer: Some of you have asked for a variable one way solution for different angles. Santa came earlier this year. Here you go my fellow racers ;)

Print Setup:

6 Walls + 4 Top & Bottom Layers

5-15% Infill

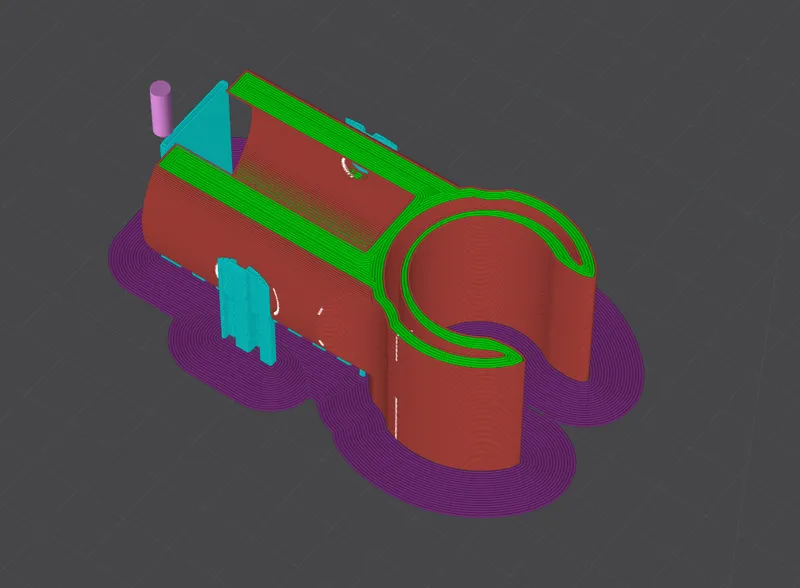

QuickRelease updated: Redesign of the model, added cutouts for better stress relief. Works now like a charm, even with some more brittle filament. There is two versions of it, I prefer the stiffee one as it holds the tension much better but its harder to remove.

Print Setup:

6 Walls + 4 Top & Bottom Layers

5-15% Infill

Supports only for base plate and use brim

Cup Holder (83mm Inner Diameter)

I didn't really like the models I have found for the cups so I have made one too. Enjoy.

Print Setup:

6 Walls + 4 Top & Bottom Layers

5-15% Infill

Supports only for base plate

***********************************************************************************************

      Soooo, as I have not found any possible solution to make the body of NLR: GT Lite / GT Lite Pro stiffer, I had to find a solution for it. This project took me some time and will still be in development once I find some better way. There could be a change coming. Finally, I can, with peace in my mind, tell you it's good to go, and the difference is unbelievable. There is almost no movement in the frame of the body, and you can still enjoy the practical side of the fold-able rig without any time loss. I mean, 15 seconds of removing the stuff will not bother you that much for the gain you can get.

I am 173cm tall (dwarf) and I needed to put the plate which holds the wheelbase in the last possible position to move it as close to me as possible. This has caused pretty awful up and down movement, which I obviously didn't like that much. If you are in the same situation, here is the solution. I have bought cheap wooden sticks used as handles for shovels and that kind of stuff. The diameter of the stick is 28mm!!! If you use any other, you need to prepare the models to fit your exact size. You can also always write to me ([email protected]) and I will prepare it for you, if you are not very familiar with editing of those, for some complimentary reward on PayPal or anything else. If you don't have a 3D printer I can even send it to you, but I live in Switzerland, so bare that in mind. If I like you and you behave like a human, it could even be for free. I mean only the editing, of course.

Manual:

1. Print the stuff needed

      2. Put one end of the stick inside of one side of the printed part

      3. Place it on the frame and look at how much of the stick you need to cut, to be possible to put it inside the printed part on the other side of the frame. You can select from the models if you want the "Quick-release" solution with open end, which is meant for faster disassembly, or the "Clamps" variant, which is held by a screw. (The screw needed is 50mm M5 + bushing on both sides)

      ( Cuts: Horizontal Bar Lenght: 44.5cm // Vertical Bar Lenght: 57cm )

      4. Finish

      5. Profit?! ..

Models:

Reinforcement Bar ( Stick vs Frame ):      A (Quick-release)   /   B (Clamps)

Baseplate Stabilizer (28mm bar diameter)

Joint ( Reinforcement 28mm vs Frame )

Tablet mount for MOZA base, (you need velcrotape)

Print Settings

• Printer brand:

Creality

• Printer:

K1

• Rafts:

No

• Supports:

Yes

• Resolution:

0.28

• Infill:

5-7%

• Filament brand:

Creality

• Filament material:

PLA, PET, PETG

• Notes:

The material should be stiff so it works properly. I didn't use TPU as it would be contra-productive and would probably flex too much. Use 6 diameters at least ! The print orientation if hopefully clear to you if you understand how forces work. Supports are up to you. I have modded the K1 Max and have currently pretty good airflow so I didn't need to use them on the overhangs. What you need to use is "Brim" most probably.
