The custom print head is designed to replace the existing print head due to existing heat sink cooling fan is small (Model 3010 ) and couldn't visible from the front side. ( It may help extend the lifespan in case the PTFE tube is clogged. (My opinion)
Also would like to reduces noise from the nozzle head cooling fan (existing Model 5020) by instead with Model 5015 fan 2 units.
Cancelled old models due to have New Revision ****
Seizing & Material Requirement
Model can attached to extruder 2 case as
CASE 1 : Attached to the extruder 2 points as shown.
The original bolt is M3 x 30mm, which needs to be changed to M3 x 40mm. ( 2 sets)

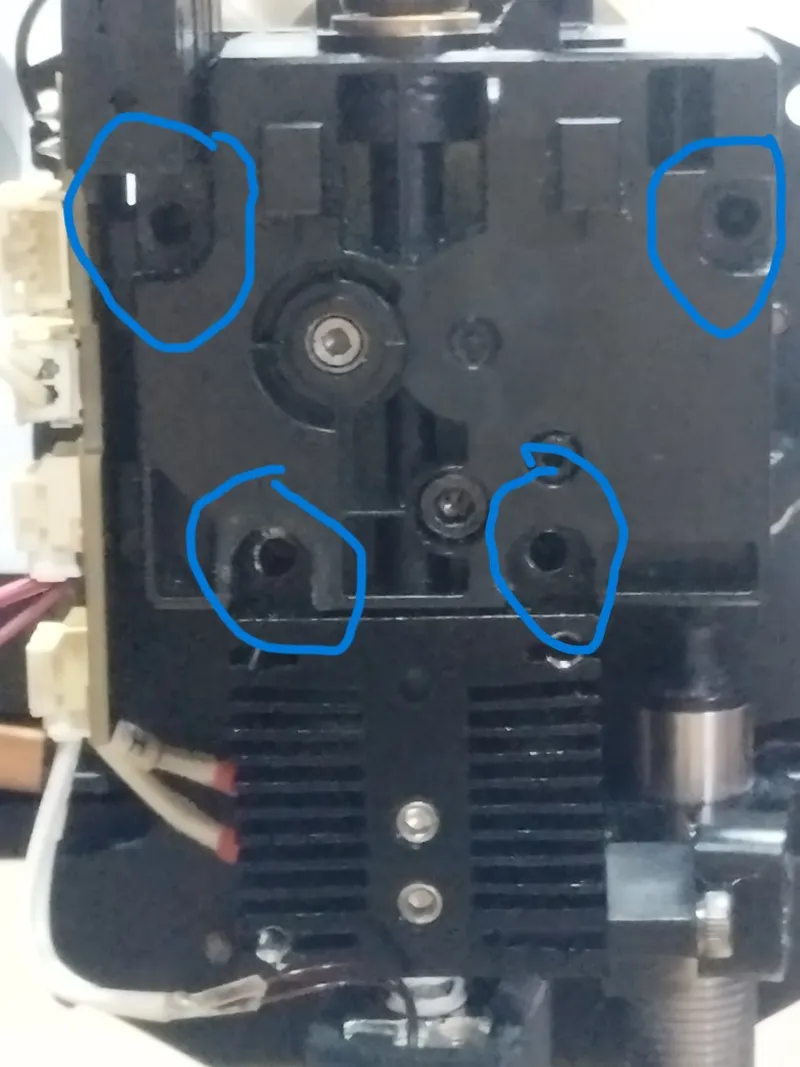

Case 2 : Attached to the extruder 4 points as shown.
Hotend Heat sink existing nut as M3x20 mm. , which needs to be changed to M3 x 30mm. ( 2 sets)
All Model use 5015 Fan
Fan nuts use M3 x 20 with nut total 3 set
2 Fans ( Left & Right have to connected by solder before connected to cooling fan terminal.
Location of Fans
1. To install Fans at Left & Right (Nozzle Cooling Fans (instead Model 5020))
2. To Install CenterFan ( Heat Sink Fan (instead Model 3010 , Existing Fan shall be disasssambled))
Some parameter for print setting
infill | 15 - 20 % |
support | Build platform Only + and manual Placement in some point |
Lay Out on print bed as,
For model LED , desigend slot for T10 and 5 mm. LED bulb https://www.make-it.ca/5mm-led-specifications/

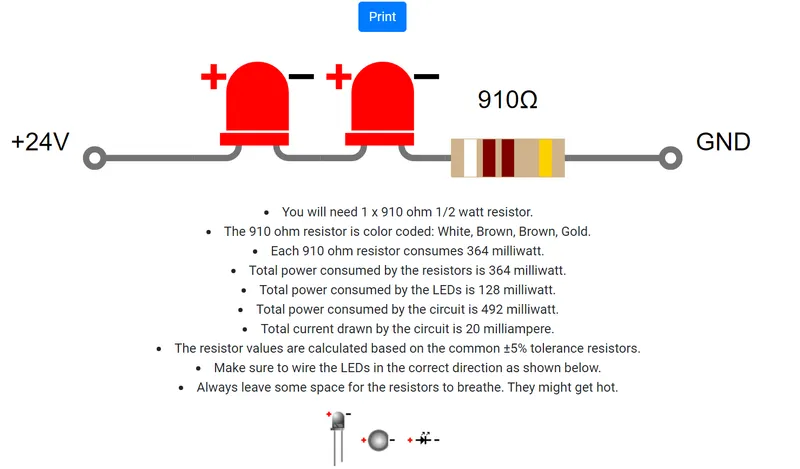

Case 1.: Use 5 mm. LED, shall be connected with resistor and connect to heat sink fan or cooling fan (de nd on your) , You can see at https://ledcalculator.net/#p=24&v=3.2&c=20&n=2&o=w
2 LED series with 1 resistor as.
Use 1000 OHM

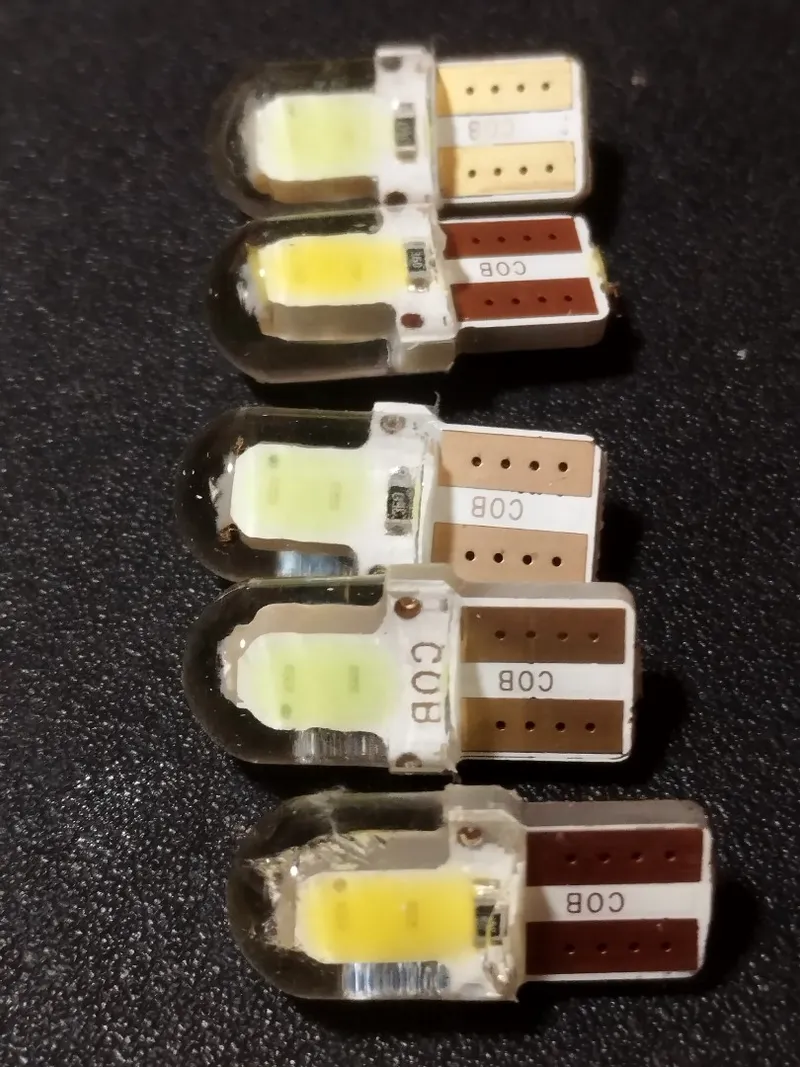

Case 2 : use 12V LED bulb (T10 plastic bulb) like as
take out plastic bulb and series 2 bulb by solder and tap to Heat sink/Cooling terminal wire . Beware some type that high power LED bulb will more hot and more load of your Fan driver circuit.
Have fun !
